BenQMeeting Room SolutionsSKU DEY01

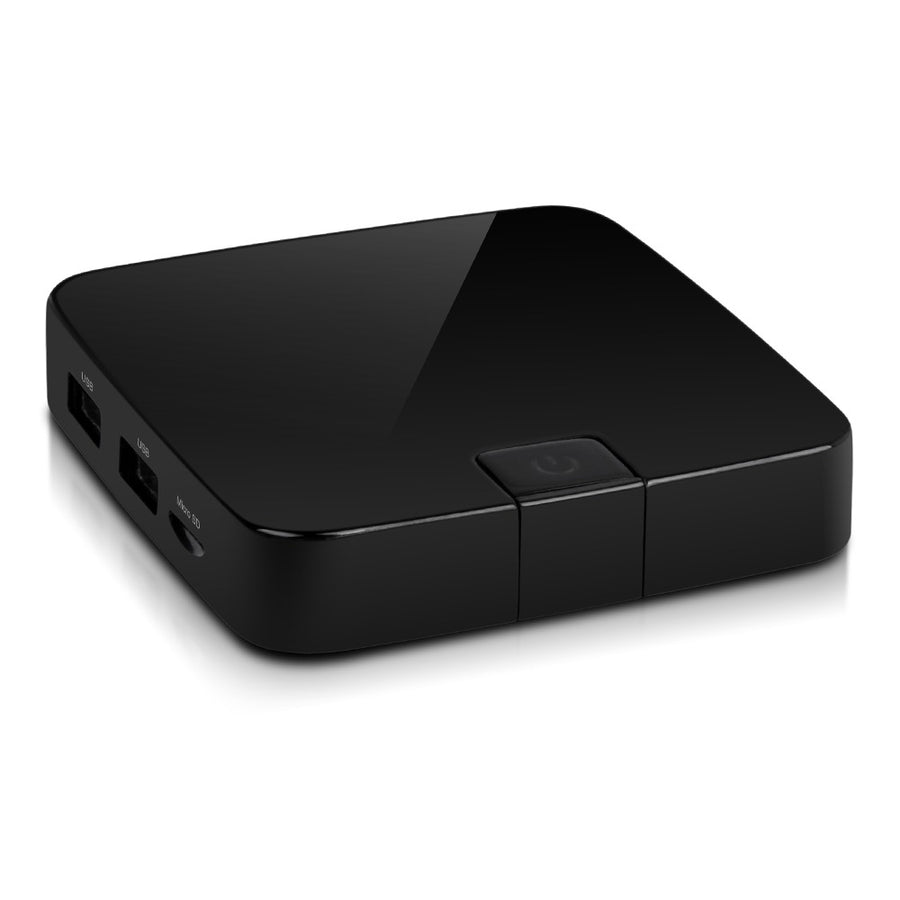

BenQ X-Sign Signage Media Player – DEY01
The BenQ DEY01 is an Android 6.0 player box for BenQ X-Sign 2.0 digital signage content. It plays 4K UHD sources and connects over dual-band Wi-Fi 802.11 b/g/n/ac or an RJ45 network port. Procure.ae supplies BenQ DEY01 signage media players across the UAE.
The DEY01 is an Android 6.0 player box built to run BenQ X-Sign 2.0 content on a display. It supports 4K UHD source content and dual-band Wi-Fi covering 2.4 GHz and 5.8 GHz. The processing platform is a quad-core ARM Cortex-A53 at 2 GHz with an ARM Mali-450 GPU at 750 MHz or higher (DVFS). The box has one RJ45 port for wired networking, and touch connections use two USB cables.
Use the DEY01 as the player behind a BenQ X-Sign display in lobbies, meeting rooms and reception areas. It weighs 159 g and mounts on an 82 x 82 mm VESA pattern with screws up to 19 mm long. The package includes one HDMI 2.0 cable and two USB touch cables. Procure.ae supplies BenQ X-Sign players with installation across the UAE.
Type
Signage Media Player
Weight
159 g
- Android 6.0 platform
- 4K UHD source support
- Dual-band Wi-Fi
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 6.0 platform
Runs Android 6.0 and is compatible with the BenQ X-Sign 2.0 content player.
02
4K UHD source support
Plays 4K UHD source content on the connected display.
03
Dual-band Wi-Fi
Wi-Fi 802.11 b/g/n/ac on 2.4 GHz and 5.8 GHz.
04
Quad-core processing
Quad-core ARM Cortex-A53 at 2 GHz with an ARM Mali-450 GPU at 750 MHz or higher.
05
Wired network port
One RJ45 port for wired networking.
06
Compact VESA-mount body
Weighs 159 g and mounts on an 82 x 82 mm VESA pattern.
07
Included cables
One HDMI 2.0 cable and two USB touch cables are in the package.
Specifications
12 specificationsGeneral
CompatibilityBenQ X-Sign 2.0 content player
Key FeaturesAndroid 6.0, 4K UHD source support, Dual-band Wi-Fi 802.11 b/g/n/ac, X-Sign 2.0 compatible, Quad-core ARM Cortex-A53 processor, RJ45 network port
ModelDEY01
TypeSignage Media Player
What's in the Box1 × HDMI 2.0 cable, 2 × USB touch cable
Performance
GraphicsARM Mali-450, 750 MHz+ (DVFS)
Operating SystemAndroid 6.0
ProcessorQuad-core ARM Cortex-A53, 2 GHz
Connectivity
PortsRJ45 × 1
Wi-Fi802.11 b/g/n/ac, 2.4 GHz and 5.8 GHz
Physical
VESA Mount82 x 82 mm
Weight159 g
Questions
Can’t find your answer? Ask on WhatsApp
Is the DEY01 compatible with BenQ X-Sign?
Yes. The DEY01 is an Android 6.0 player box compatible with the BenQ X-Sign 2.0 content player, and it supports 4K UHD source content. It runs on Android 6.0 and connects to the display over HDMI 2.0, so it can serve as the player in an X-Sign 2.0 installation.
Does the DEY01 support 4K video?
Yes. The DEY01 supports 4K UHD source content. The manufacturer's specifications do not state the maximum output resolution, so confirm the display and content resolution before you order. The player uses a quad-core ARM Cortex-A53 processor with an ARM Mali-450 GPU, which handles 4K UHD source content.
How is the DEY01 connected to a network and a display?
The DEY01 has one RJ45 port for wired networking and dual-band Wi-Fi on 802.11 b/g/n/ac. It connects to the display with an HDMI 2.0 cable, which is included, and it has two USB cables for touch connection.
How do I mount the DEY01?
The DEY01 has an 82 x 82 mm VESA wall-mounting pattern and weighs 159 g without packaging. Use screws no longer than 19 mm in that pattern, and check the mounting bracket before installation.
