BenQMeeting Room SolutionsSKU DMY12
BenQ Wall Mount Kit for BH2801, BH2801N, BH3801 and BH3801N – DMY12

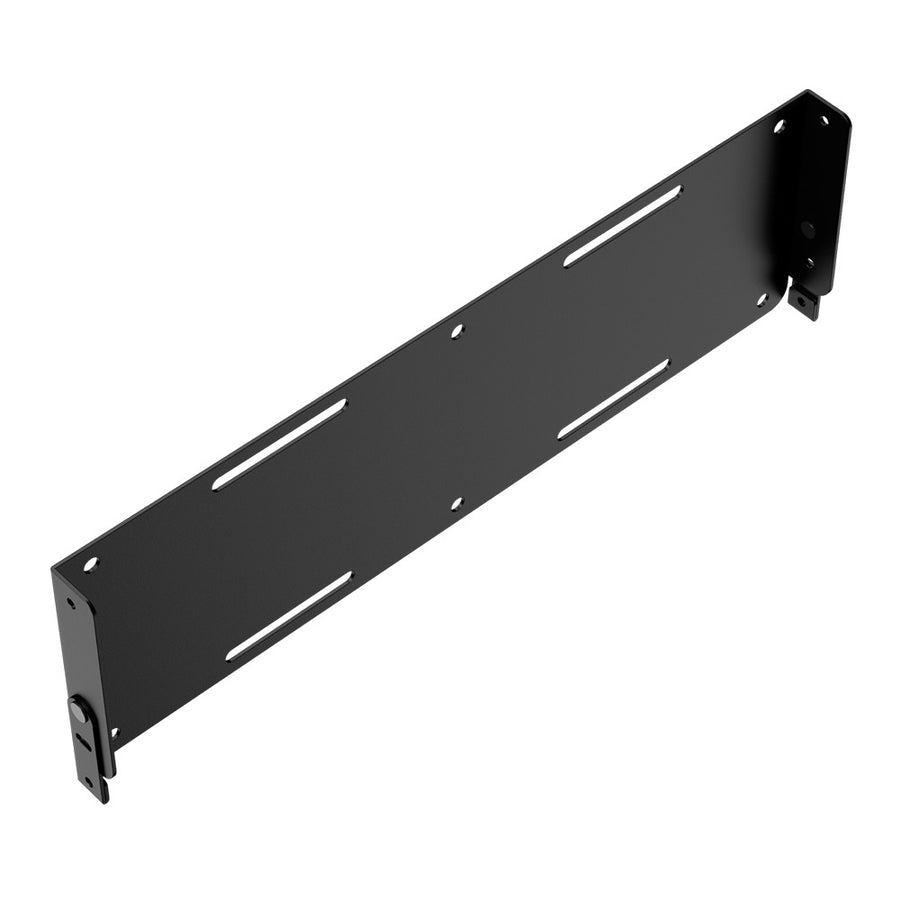

The BenQ DMY12 is a wall mount kit for BH2801, BH2801N, BH3801 and BH3801N displays. It offers 0°, 15° and 30° viewing angle settings and weighs 1.2 kg without packing. Procure.ae supplies the BenQ DMY12 in the UAE, with quotes, delivery and installation across the UAE and wider MEA.
The BenQ DMY12 is a wall mount kit for the BH2801, BH2801N, BH3801 and BH3801N displays. Horizontal and vertical viewing angles are set at 0°, 15° or 30°. The kit measures 420.0 x 132.3 x 30.0 mm (W x H x D) and weighs 1.2 kg without packing, or 1.6 kg with packing. The maximum wall mounting screw length is 30 mm. Use it to mount one of these BenQ models on a wall at a set viewing angle. Procure.ae supplies it across the UAE, with installation available.
Type
Wall Mount Kit
Weight
1.2 kg (1.6 kg with packing)
- Wall mount kit
- Viewing angle settings
- Compact size
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Wall mount kit
Mounts BH2801, BH2801N, BH3801 and BH3801N displays to a wall.
02
Viewing angle settings
Horizontal and vertical settings of 0°, 15° and 30°.
03
Compact size
420.0 x 132.3 x 30.0 mm (W x H x D).
04
Light weight
1.2 kg without packing, 1.6 kg with packing.
05
Screw length
Maximum wall mounting screw length of 30 mm.
Specifications
8 specificationsGeneral
CompatibilityBH2801, BH2801N, BH3801 and BH3801N displays
Key FeaturesWall mount kit, 0°, 15° and 30° viewing angle settings, made for BH2801, BH2801N, BH3801 and BH3801N displays
ModelDMY12
TypeWall Mount Kit
Display
Viewing Angle0° / 15° / 30° (horizontal / vertical)
Physical
Dimensions420.0 x 132.3 x 30.0 mm
MountingWall mount, maximum screw length 30 mm
Weight1.2 kg (1.6 kg with packing)
Questions
Can’t find your answer? Ask on WhatsApp
Which displays does the BenQ DMY12 fit?
The BenQ DMY12 is made for the BH2801, BH2801N, BH3801 and BH3801N displays. The manufacturer's specifications do not state compatibility with other models, so confirm the display model before you order.
Can the DMY12 change the viewing angle?
Yes. The DMY12 offers 0°, 15° and 30° settings for horizontal and vertical viewing angles, according to the manufacturer's specifications. Choose the setting that suits the seating position before the bracket is fixed.
What is the maximum screw length for the DMY12?
The manufacturer's specifications list a maximum wall mounting screw length of 30 mm. Confirm the wall type and fixings with your installer before mounting. The kit's maximum screw length is listed as 30 mm, so choose fixings that suit that length.
