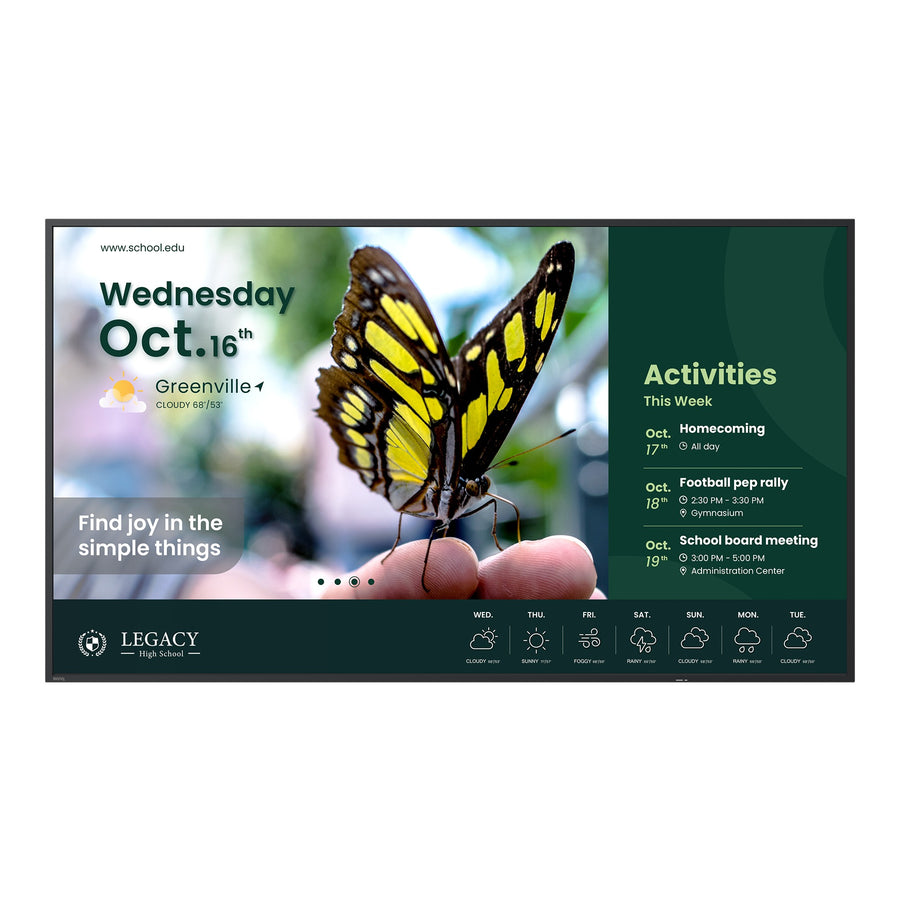

BenQ ST04 Smart Signage 55-inch 4K Digital Signage Display – ST5504
The BenQ ST5504 is a 55-inch 4K UHD smart signage display from the ST04 series for corporate and school signage. It uses an ADS panel with 10-bit colour, 99% sRGB coverage and Android 14.0. Procure.ae supplies the BenQ ST5504 in the UAE, with quotes, delivery and installation across the UAE and wider MEA.
The ST5504 has 3840 x 2160 resolution on a 55-inch 16:9 ADS panel, with an 8 ms response time, 10-bit colour depth and 350 nits typical brightness. The colour gamut is listed as 99% sRGB and 72% NTSC, with 1,200:1 typical contrast. It supports landscape and portrait orientation and runs 18 hours a day, 7 days a week, with two 12 W speakers and typical power use of 71 W.
The ST5504 lists X-Sign as its broadcast system and supports InstaShare 2 wireless screen sharing and DMS device management. Ports are USB-A x 2, RS-232, Ethernet (10/100 Mbps) and a 3.5 mm line out. Compared with the 55-inch ST5502S, the ST5504 has an ADS panel, 10-bit colour and Android 14.0, and it uses a 400 x 200 mm VESA pattern rather than 400 x 400 mm.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Type
Smart Signage Display
- ADS panel
- 10-bit colour
- Android 14.0 built in
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ADS panel
55-inch 16:9 ADS panel at 3840 x 2160 resolution.
02
10-bit colour
10-bit colour depth with 99% sRGB and 72% NTSC gamut.
03
Android 14.0 built in
Runs Android 14.0 with an A73 x 4 CPU and G52 MC1 graphics.
04
InstaShare 2 screen sharing
Wireless screen sharing with InstaShare 2.
05
Device management
DMS device management with X-Sign as the broadcast system.
06
Brightness and contrast
350 nits typical brightness and 1,200:1 typical contrast.
07
Built-in speakers
Two 12 W speakers built in.
08
Long operating hours
Rated for 18 hours a day, 7 days a week.
Specifications
29 specificationsGeneral
Key Features4K UHD, ADS panel, Android 14.0 built in, InstaShare 2 wireless screen sharing, DMS device management, X-Sign broadcast system, IR sensor, 2 × 12 W speakers
ModelST5504
TypeSmart Signage Display
Display
Aspect Ratio16:9
Brightness350 nits (typical)
Color Depth10-bit
Color Gamut99% sRGB, 72% NTSC
Contrast Ratio1,200:1 (typical)
OrientationLandscape and portrait
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Performance
GraphicsG52 MC1
Operating SystemAndroid 14.0
ProcessorA73 x 4
Storage Conditions-10 to 60 °C, 10% to 80% RH, non-condensing
Audio
Speaker Output2 × 12 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsUSB-A x 2 (2.0), RS-232 x 1, Ethernet x 1 (10/100 Mbps), 3.5 mm line out x 1
Power
Power Consumption71 W (typical)
Standby Power<0.5 W
Physical
Dimensions1234.2 x 706.7 x 58.9 mm
Duty Cycle18 hours / 7 days
Operating Humidity10% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Shipping Dimensions1386 x 845 x 140 mm
VESA Mount400 x 200 mm
Compliance
CertificationsENERGY STAR
Downloads
Manufacturer documents for the BenQ ST04 Smart Signage 55-inch 4K Digital Signage Display – ST5504 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the BenQ ST5504 a 4K display?
Yes. The ST5504 has 3840 x 2160 UHD resolution on a 55-inch 16:9 ADS panel, with an 8 ms response time. Typical brightness is 350 nits and typical contrast is 1,200:1, according to the manufacturer's specifications.
Does the ST5504 have 10-bit colour?
Yes. It has a 10-bit colour depth and a colour gamut listed as 99% sRGB and 72% NTSC. The ST5502S is listed with 8-bit colour, so the ST5504 is the 10-bit option in the 55-inch pair.
Which operating system does the ST5504 run?
The ST5504 runs Android 14.0 built in, and its specifications list an A73 x 4 processor and a G52 MC1 graphics chip. They list no OPS slot for a slot-in PC, so check that the built-in Android platform suits your content.
Can the ST5504 be wall mounted?
Yes. It uses a 400 x 200 mm VESA pattern with four M6 x 15 mm screws. The overall dimensions are 1234.2 x 706.7 x 58.9 mm. The specifications do not state the display weight, so check the bracket and wall before installation.
Does the ST5504 support Wi-Fi or Bluetooth?
No. Wi-Fi and Bluetooth are listed as not available. Connect the display to the network through its 10/100 Mbps Ethernet port, and plan cabling for that connection at install. Ethernet is the only network port listed.
