BenQDigital SignageSKU ST6504

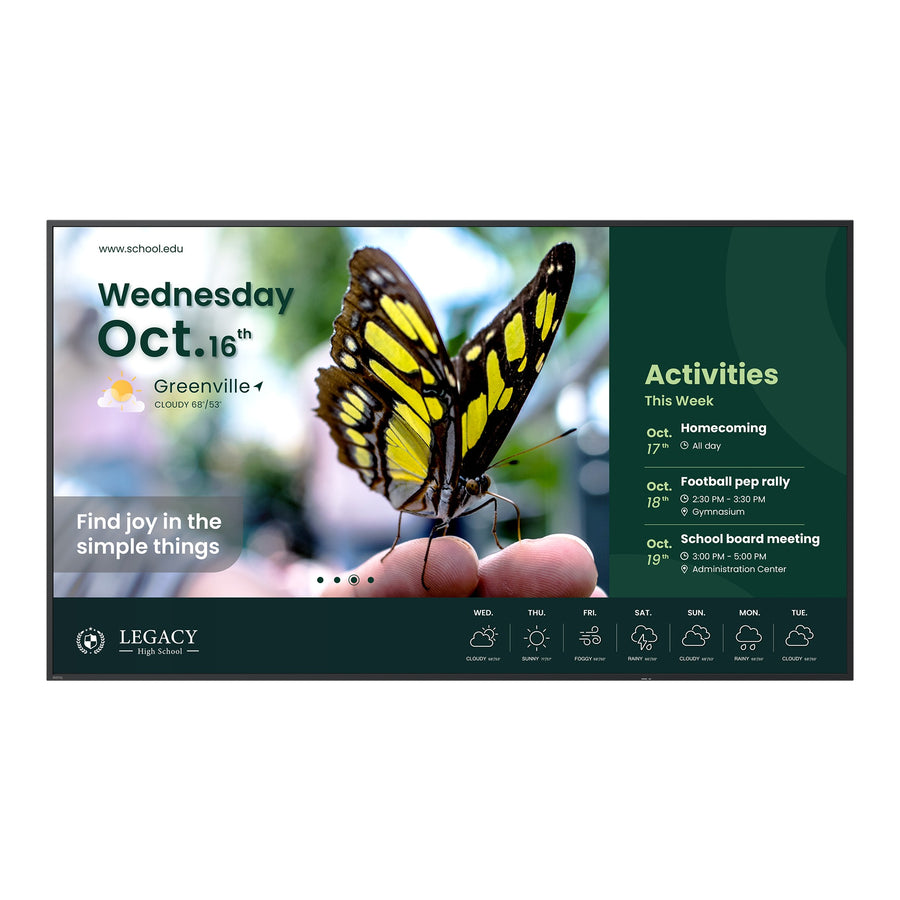

BenQ Smart Signage ST04 65-inch 4K UHD Digital Signage Display – ST6504
The BenQ Smart Signage ST6504 is a 65-inch 4K UHD digital signage display for schools and businesses that need landscape or portrait signage. It has a 10-bit, 350-nit ADS panel, runs Android 14.0 and supports InstaShare 2 wireless sharing. Procure.ae supplies the BenQ ST6504 across the UAE.
The ST6504 has a 65-inch 3840 x 2160 (4K UHD) ADS panel with 10-bit colour depth, 99% sRGB and 72% NTSC colour gamut, 350 nits typical brightness and 1,200:1 typical contrast. It has an 8 ms response time and is specified for 18 hours a day, seven days a week. Processing uses an A73 × 4 CPU with a G52 MC1 GPU on Android 14.0, and two 12 W speakers provide audio.
Use the ST6504 for school corridors, classrooms and lobbies where the display may be turned to portrait for menus or notices. Management uses DMS and the X-Sign broadcast system, and wireless sharing uses InstaShare 2. Compared with the BenQ ST6502S, this 65-inch model adds portrait orientation, 10-bit colour and Android 14.0, and draws 76 W typical against 155 W, but it has no OPS slot, VGA input or microSD reader.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Smart Signage Display
- Portrait and Landscape
- 10-bit Colour
- InstaShare 2 Sharing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Portrait and Landscape
Supports landscape and portrait orientation on a 65-inch 4K UHD panel.
02
10-bit Colour
10-bit colour depth with 99% sRGB and 72% NTSC colour gamut.
03
InstaShare 2 Sharing
Wireless screen sharing through InstaShare 2.
04
Android 14.0 Platform
Android 14.0 with an A73 × 4 CPU and G52 MC1 GPU.
05
Remote Management
DMS device management and the X-Sign broadcast system.
06
Speakers and Ports
Two 12 W speakers, 10/100 Mbps Ethernet, two USB 2.0 ports and a 1.8 m RS-232 cable.
07
Energy Efficiency
ENERGY STAR listed, with 76 W typical power and under 0.5 W standby.
Specifications
31 specificationsGeneral
Key Features4K UHD panel, 10-bit colour, landscape and portrait orientation, InstaShare 2 wireless sharing, DMS device management, X-Sign broadcast system, Android 14.0, ENERGY STAR
ModelST6504
TypeSmart Signage Display
What's in the BoxHDMI cable (1.5 m), RS-232 cable (1.8 m), remote control × 1
Display
Aspect Ratio16:9
Brightness350 nits
Color Depth10-bit
Color Gamut99% sRGB, 72% NTSC
Contrast Ratio1,200:1
OrientationLandscape and Portrait
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Performance
GraphicsG52 MC1
Operating SystemAndroid 14.0
ProcessorA73 × 4
Audio
Speaker Output2 × 12 W
Connectivity
Ethernet10 / 100 Mbps × 1
Input Voltage100–240 V AC, 50/60 Hz
PortsUSB 2.0 × 2, Ethernet × 1 (10/100 Mbps), RS-232 × 1, 3.5 mm audio out × 1
Serial PortRS-232 × 1
Power
Power Consumption76 W (typical)
Standby Power<0.5 W
Physical
Dimensions1452.9 x 829.2 x 59.7 mm
Duty Cycle18 hours / 7 days
Operating Humidity10% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1635 x 987 x 159 mm
VESA Mount400 x 400 mm
Compliance
CertificationsENERGY STAR
Downloads
Manufacturer documents for the BenQ Smart Signage ST04 65-inch 4K UHD Digital Signage Display – ST6504 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Can the ST6504 be used in portrait orientation?
Yes. The ST6504 supports both landscape and portrait orientation on its 65-inch 4K UHD panel. The manufacturer's specifications do not give a separate portrait mounting kit, so check the mount and cable layout before installing it upright.
Does the ST6504 support wireless screen sharing?
Yes. It supports InstaShare 2 wireless screen sharing. Remote device management is handled through DMS, and the X-Sign broadcast system is listed for content distribution. Ethernet is rated 10/100 Mbps for the network connection.
How is the ST6504 mounted?
The display uses a VESA 400 x 400 mm mounting pattern with four M6 x 15 mm screws. The manufacturer's specifications do not list a wall-mount bracket or a stand, so these need to be sourced separately.
Which operating system and connections does it use?
It runs Android 14.0 with DMS device management and the X-Sign broadcast system. The manufacturer's specifications list a 10/100 Mbps Ethernet port, an RS-232 port, two USB 2.0 ports and a 3.5 mm audio output.
