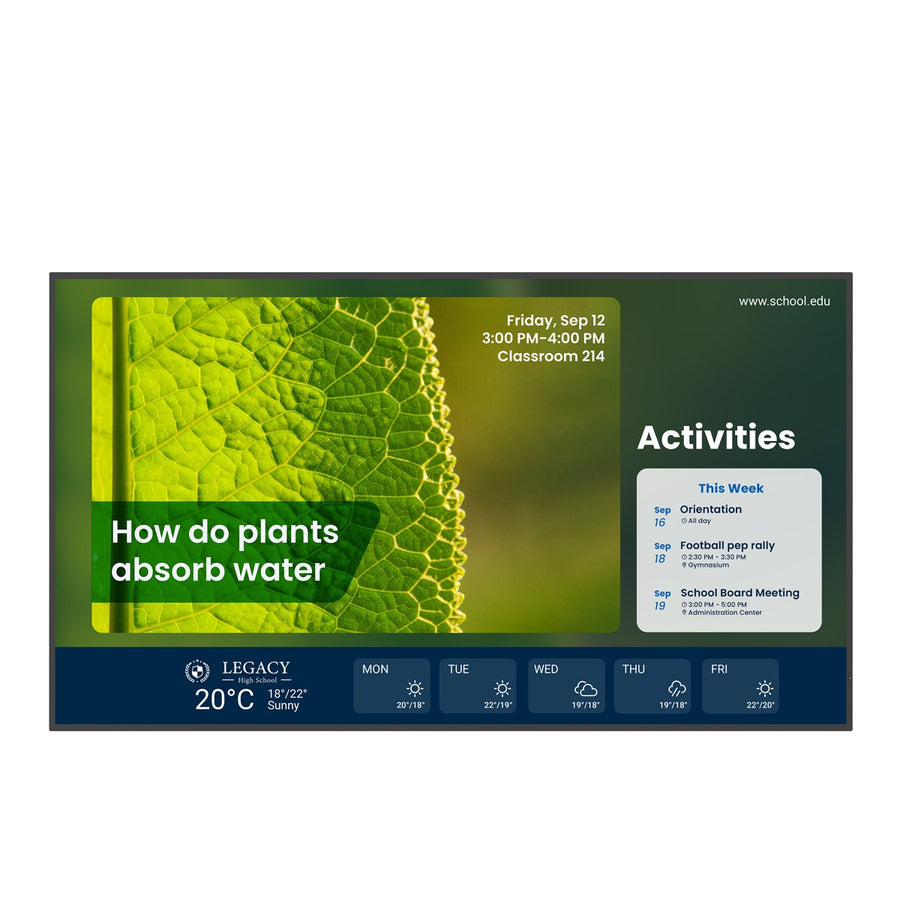

BenQ ST7502S 75-inch 4K UHD smart signage displayBenQ
Digital SignageSKU ST7502S

BenQ Smart Signage ST02S 75-inch 4K UHD Digital Signage Display – ST7502S

The BenQ Smart Signage ST7502S is a 75-inch 4K UHD digital signage display for schools, offices and retail, with a 400-nit ADS panel, 1,200:1 typical contrast and built-in Android 8.0. It supports InstaShare 1 wireless sharing and DMS device management. Procure.ae supplies the BenQ ST7502S across the UAE.

The ST7502S uses a 75-inch 3840 x 2160 (4K UHD) ADS panel with 400 nits typical brightness, 1,200:1 typical contrast, a 72% NTSC colour gamut, 8-bit colour depth and an 8 ms response time. It is specified for 18 hours a day, seven days a week, and runs Android 8.0 on two A73 and two A53 processor cores with a Mali-G51MP2 GPU. Two 10 W speakers provide built-in audio, and the listed cables include a 1.5 m HDMI cable.

The ST7502S suits classrooms, collaboration rooms, reception areas and retail signage where a larger landscape display is needed. It mounts on a VESA 600 x 400 mm pattern and has an OPS slot for a slot-in PC. Wireless sharing uses InstaShare 1 from the BenQ App Store, with DMS device management and the X-Sign Broadcast system for remote management and content broadcasting. Compared with the 65-inch ST6502S, this model is 75 inch, draws 177 W typical against 155 W.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Smart Signage Display
  • 4K UHD Panel
  • Wireless Screen Sharing
  • Remote Device Management
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD Panel
3840 x 2160 resolution on a 75-inch 16:9 ADS panel with 400 nits typical brightness.
02
Wireless Screen Sharing
InstaShare 1 wireless screen sharing from the BenQ App Store.
03
Remote Device Management
DMS device management with the X-Sign Broadcast system.
04
Built-in Android 8.0
Android 8.0 on two A73 and two A53 processor cores with a Mali-G51MP2 GPU.
05
Expansion Slot
OPS slot for a slot-in PC, plus a VGA input and a microSD card reader.
06
Ports and Connectivity
Ethernet rated 10/100 Mbps, RS-232, two USB 2.0 ports and 3.5 mm audio in and out.
07
Integrated Speakers
Two 10 W speakers and an IR sensor.

Specifications

31 specifications
General
Key Features4K UHD panel, 400-nit ADS display, InstaShare 1 wireless sharing, DMS device management, X-Sign Broadcast, IR sensor, Android 8.0, OPS slot
ModelST7502S
TypeSmart Signage Display
What's in the BoxHDMI cable (1.5 m), remote control × 1
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth8-bit
Color Gamut72% NTSC
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Performance
GraphicsMali-G51MP2
Operating SystemAndroid 8.0
ProcessorA73 × 2 + A53 × 2
Audio
Speaker Output2 × 10 W
Connectivity
Ethernet10 / 100 Mbps × 1
Input Voltage100–240 V AC, 50/60 Hz
PortsUSB 2.0 × 2, VGA × 1, OPS slot × 1, microSD × 1, RS-232 × 1, Ethernet × 1, 3.5 mm audio in × 1, 3.5 mm audio out × 1
Serial PortRS-232 × 1
Power
Power Consumption177 W (typical)
Standby Power<0.5 W
Physical
Dimensions1683.5 x 961.7 x 82.9 mm
Duty Cycle18 hours / 7 days
Operating Humidity10% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1828 x 1098 x 220 mm
VESA Mount600 x 400 mm
Compliance
CertificationsENERGY STAR

Questions

Can’t find your answer? Ask on WhatsApp

Does the ST7502S support wireless screen sharing?
Yes. It supports InstaShare 1 wireless screen sharing from the BenQ App Store. Remote management is handled through DMS, and the X-Sign Broadcast system is listed for content broadcasting. The built-in OS also supports the screen sharing and media playback options described for the ST series.
Can the ST7502S be wall mounted?
Yes. The display has a VESA 600 x 400 mm mounting pattern with four M8 x 15 mm screws. The manufacturer's specifications do not list a wall-mount bracket, so a VESA-compatible wall or stand mount needs to be selected separately.
Is the ST7502S suitable for a classroom?
Yes. The 75-inch 4K UHD panel has 400 nits typical brightness and 1,200:1 typical contrast, with two 10 W speakers for built-in audio. The specifications list an IR sensor, a remote control and a 1.5 m HDMI cable.
Which ports does the ST7502S have?
It has a VGA input, an OPS slot for a slot-in PC, a 10/100 Mbps Ethernet port, RS-232, two USB 2.0 ports, a microSD card reader and 3.5 mm audio in and out. The manufacturer's specifications do not give an HDMI port count.
Can I buy the ST7502S in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
