BenQMeeting Room SolutionsSKU VS20

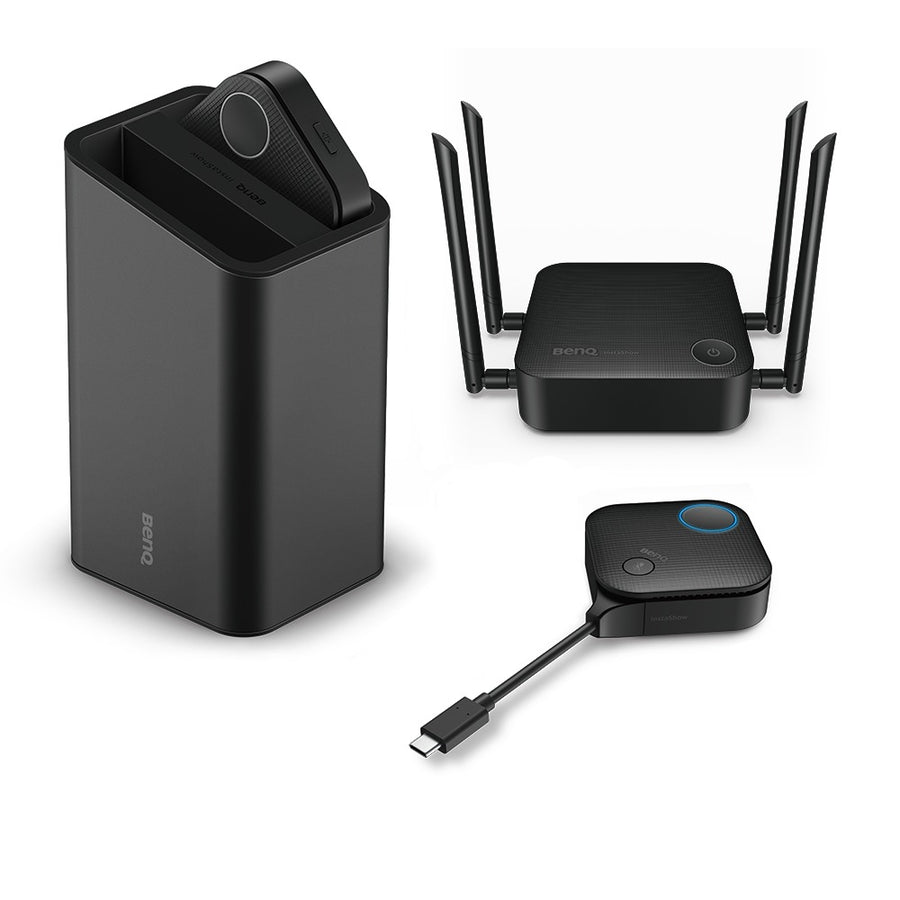

BenQ InstaShow Wireless Presentation System – VS20
The BenQ InstaShow VS20 is a wireless presentation system for hybrid meetings in medium to large rooms. Its receiver outputs up to 4K at 60 Hz over HDMI 2.0 with HDCP, supports four split screens and uses AES128 encryption with WPA2. Procure.ae supplies the BenQ InstaShow VS20 across the UAE and wider MEA.
The VS20 outputs up to 4K at 60 Hz over HDMI 2.0 with HDCP. Four MIMO antennas rated at 5 dBi each support dual-band 2.4 GHz and 5 GHz Wi-Fi 5, with AC1200 maximum data rates of 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz. The system supports four split screens, so several sources can appear on one display at the same time. Sessions are protected by AES128 encryption with WPA2. The host measures 145 x 145 x 46 mm without antenna and weighs 348 g.
The VS20 suits medium to large meeting rooms where hybrid meetings need wireless sharing alongside a button microphone, which the manufacturer lists as an integration. It also has a LAN (RJ45) port, so the receiver can sit on a wired network as well as Wi-Fi. Compared with the VS25, the VS20 does not list DisplayPort output, TouchBack or cloud DMS management, and it uses Wi-Fi 5 with WPA2 rather than Wi-Fi 6 with WPA3 Enterprise.
Resolution
3840 x 2160 (4K UHD)
Type
Wireless Presentation System
Weight
348 g
- 4K Output
- Four Split Screens
- Dual-Band Wi-Fi 5
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K Output
Outputs up to 4K at 60 Hz over HDMI 2.0 with HDCP.
02
Four Split Screens
Shows up to four sources on one display at the same time.
03
Dual-Band Wi-Fi 5
Runs on 2.4 GHz and 5 GHz with up to AC1200 data rates.
04
MIMO Antennas
Four 5 dBi MIMO antennas are included.
05
AES128 Security
Encrypts sessions with AES128 and WPA2.
06
Button Microphone Integration
Integrates with a button microphone for hybrid meetings.
07
Compact Host
Measures 145 x 145 x 46 mm without antenna and weighs 348 g.
Specifications
17 specificationsGeneral
ApplicationMedium to large meeting rooms
Key Features4K 60 Hz output, 4-split screen, Wi-Fi 5 dual band, AES128 encryption, WPA2, button microphone integration
ModelVS20
TypeWireless Presentation System
What's in the BoxHost receiver, cradle, HDMI cable, power supply, 4 antennas
Display
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Connectivity
Antenna4 × 5 dBi MIMO
Data RateAC1200 (2.4 GHz 300 Mbps + 5 GHz 867 Mbps)
HDMI OutputsHDMI 2.0 (HDCP)
PortsHDMI out × 1, LAN (RJ45) × 1
Wi-FiWi-Fi 5
Power
Power Consumption11 W (normal)
Power SourceDC 12 V, 3 A
Physical
Dimensions145 x 145 x 46 mm
Weight348 g
Compliance
Security FeaturesWPA2, AES128 encryption
Downloads
Manufacturer documents for the BenQ InstaShow Wireless Presentation System – VS20 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the maximum output resolution of the VS20?
Up to 4K at 60 Hz over HDMI 2.0, with HDCP support. The output suits presentations and video on large-format displays in medium to large rooms. Connect the display to the HDMI 2.0 output to get the full 4K resolution.
Is the VS20 suitable for medium to large rooms?
Yes. The manufacturer positions the VS20 for medium to large-size rooms. It supports four split screens and a button microphone, which suits hybrid meetings with remote participants. Its 4K 60 Hz output also suits larger displays.
Does the VS20 integrate with a button microphone?
Yes. The manufacturer states that the VS20 integrates with a button microphone for hybrid meetings. The VS20 also supports 4K transmission with AES128 encryption, and its host sits on a LAN (RJ45) connection as well as Wi-Fi.
Which Wi-Fi standard and security does the VS20 use?
It uses Wi-Fi 5 on 2.4 GHz and 5 GHz, with AC1200 maximum data rates. Security is WPA2 with AES128 encryption. Four 5 dBi MIMO antennas are included with the unit.
