BenQMeeting Room SolutionsSKU WDC15
BenQ InstaShow 4K UHD Wireless Presentation System – WDC15
The BenQ InstaShow WDC15 is a 4K UHD wireless presentation system for huddle and small meeting rooms. It outputs up to 4K at 30 Hz over HDMI 1.4 with HDCP, runs on 5 GHz Wi-Fi 5 with WPA3 encryption and needs no drivers, apps or network setup. Procure.ae supplies the BenQ InstaShow WDC15 across the UAE and wider MEA.

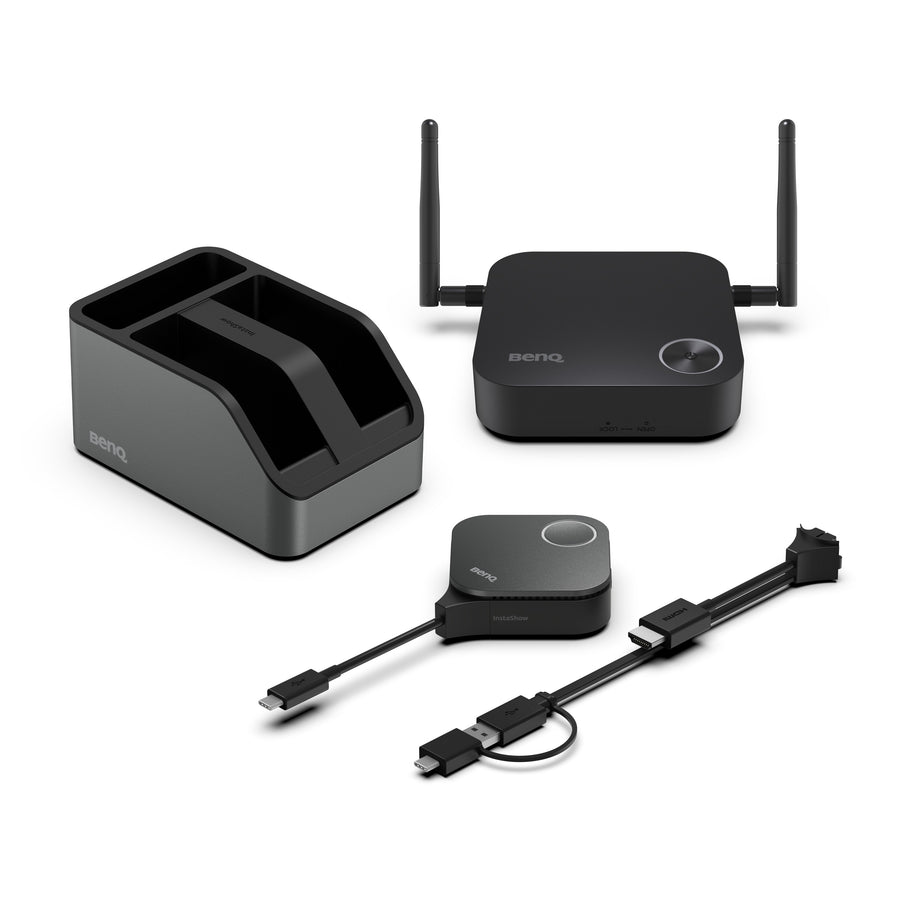

The WDC15 mirrors the screen of a connected source at up to 4K UHD, with a maximum output of 4K at 30 Hz over HDMI 1.4 with HDCP. Its 5 GHz Wi-Fi 5 link runs at up to AC1200 data rates (867 Mbps on 5 GHz), with AES128 encryption and WPA3 security. TouchBack lets the presenter control the source from the display. The host measures 110 x 110 x 29 mm without antenna and weighs 205 g. The package includes a host receiver, cradle, HDMI cable, two 2 dBi MIMO antennas and a power supply.
The WDC15 suits huddle and small meeting rooms that want 4K sharing and touch control from the display. Compared with the WDC10, the WDC15 adds 4K output and WPA3 encryption, while the WDC10 is listed for 1080p at 60 Hz with WPA2. Compared with the WDC25, the WDC15 is a Wi-Fi 5 unit at 4K 30 Hz and does not list split screens or cloud DMS management, while the WDC25 uses Wi-Fi 6 at 4K 60 Hz.
Resolution
3840 x 2160 (4K UHD)
Type
Wireless Presentation System
Weight
205 g
- 4K UHD Output
- Wi-Fi 5 Link
- WPA3 Security
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Output
Outputs up to 4K at 30 Hz over HDMI 1.4 with HDCP.
02
Wi-Fi 5 Link
Uses 5 GHz Wi-Fi 5 with up to 867 Mbps data rates.
03
WPA3 Security
Protects the connection with WPA3 and AES128 encryption.
04
TouchBack
Lets the presenter control the source from the display.
05
No Software Setup
Needs no drivers, apps or network setup, according to the manufacturer.
06
Dual MIMO Antennas
Includes two 2 dBi MIMO antennas.
07
Compact Host
Measures 110 x 110 x 29 mm and weighs 205 g.
Specifications
18 specificationsGeneral
ApplicationHuddle and small meeting rooms
Key Features4K UHD output, Wi-Fi 5 on 5 GHz, WPA3 with AES128, TouchBack, no drivers or apps, dual MIMO antennas
ModelWDC15
TypeWireless Presentation System
What's in the BoxHost receiver, cradle, HDMI cable, power supply, 2 antennas
Display
Refresh Rate30 Hz
Resolution3840 x 2160 (4K UHD)
Touch PointsTouchBack supported
Connectivity
Antenna2 × 2 dBi MIMO
Data RateAC1200 (5 GHz 867 Mbps)
HDMI OutputsHDMI 1.4 (HDCP)
PortsHDMI out × 1, LAN (RJ45) × 1
Wi-FiWi-Fi 5
Power
Power Consumption10 W (normal)
Power SourceDC 5 V, 2 A
Physical
Dimensions110 x 110 x 29 mm
Weight205 g
Compliance
Security FeaturesWPA3, AES128 encryption
Downloads
Manufacturer documents for the BenQ InstaShow 4K UHD Wireless Presentation System – WDC15 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the WDC15 need drivers or an app?
No. The manufacturer states that the WDC15 needs no drivers, apps or network setup, so presenters can start sharing without configuring a network. The kit includes a cradle, HDMI cable, power supply and two antennas.
What is the highest output resolution of the WDC15?
Up to 4K UHD at 30 Hz over HDMI 1.4 with HDCP. For 4K output at 60 Hz, the BenQ WDC25 is listed at 4K 60 Hz over HDMI 2.0.
Does the WDC15 support TouchBack?
Yes. TouchBack is listed for the WDC15, so the presenter can control the source from the display. Use it with a touch-enabled display in huddle rooms, and confirm the touch connection during installation.
Is the WDC15 suitable for huddle rooms?
Yes. The manufacturer positions the WDC15 for huddle and small meeting rooms, with 4K UHD screen mirroring and 5 GHz Wi-Fi 5 with WPA3 encryption. It is a compact unit at 110 x 110 x 29 mm and weighs 205 g.
