BenQMeeting Room SolutionsSKU TZY31
BenQ InstaShare Button Solution for Wireless Sharing – TZY31

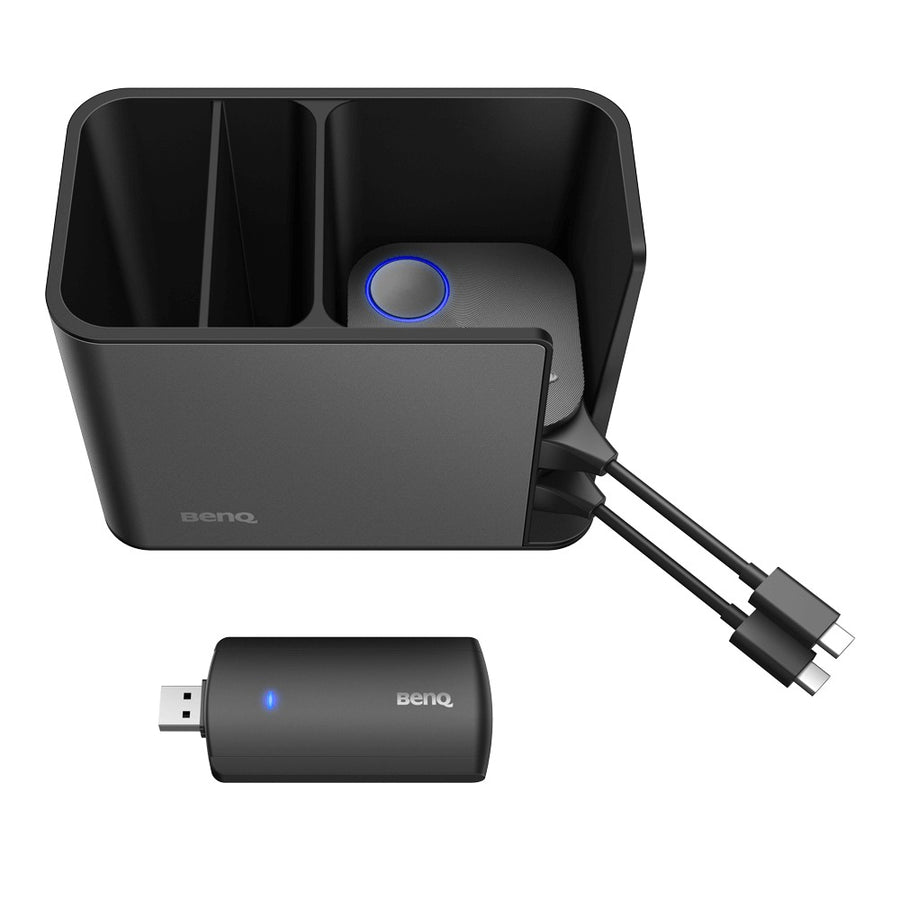

The BenQ TZY31 is an InstaShare button solution for one-click wireless screen sharing from a laptop to BenQ large-panel displays, without cables. It supports 4K30P input, 802.11ac Wi-Fi and AES-256 wireless encryption. It works with listed RM03, RP, RE and CP series displays. Procure.ae supplies the BenQ TZY31 in the UAE.
The TZY31 lets a user share content from any laptop to a BenQ large-panel display without cables, with one click. The solution transmits at up to 60 fps depending on the environment, at 1080P60 or 4K30P. It supports stereo audio at 16-bit, 48 kHz. The power supply is DC 5 V, 0.9 A maximum, and power consumption is a maximum of 4.5 W at full load. The operating temperature range is 0 to 40 °C.
The TZY31 fits the BenQ large-panel displays in its compatibility list. RM03 series models connect over USB Type-C, while RP02, RE01, RM02K, RM02S, CP01K, CS01, SL02K and VC01A models need a USB Type-C to USB Type-A adapter. The solution is designed to work with these listed series rather than with other display families.
Resolution
Up to 4K30P
Type
Wireless Screen Sharing Button Solu...
- One-click sharing
- Cable-free sharing
- 4K30P input
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
One-click sharing
Shares content to a BenQ large-panel display with a single click.
02
Cable-free sharing
Shares from any laptop to the display without cables.
03
4K30P input
TX button input resolution up to 4K30P.
04
Stereo audio
Audio rate of stereo, 16-bit, 48 kHz radio quality.
05
Wi-Fi 802.11ac
IEEE 802.11ac on the 5 GHz band with 2T2R MIMO.
06
AES-256 encryption
WPA2/3 Personal and WPA2 Enterprise security with AES-256 encryption.
Specifications
13 specificationsGeneral
CompatibilityRM03 series (USB Type-C); RP02, RE01, RM02K, RM02S, CP01K, CS01, SL02K series and VC01A (with Type-C to Type-A adapter)
Key FeaturesOne-click screen sharing, share from any laptop without cables, up to 4K30P input, Wi-Fi 802.11ac, AES-256 encryption
ModelTZY31
TypeWireless Screen Sharing Button Solution
Display
Refresh RateUp to 60 fps (1080P60/4K30P)
ResolutionUp to 4K30P
Audio
AudioStereo, 16-bit 48 kHz
Connectivity
Connector TypeUSB Type-C
Wi-FiIEEE 802.11ac 5 GHz, 2T2R MIMO
Power
Power Consumption4.5 W (max, full load)
Power SourceDC 5 V, 0.9 A (max)
Physical
Operating Temperature0 to 40 °C
Compliance
Security FeaturesWPA2/3 Personal, WPA2 Enterprise, AES-256
Downloads
Manufacturer documents for the BenQ InstaShare Button Solution for Wireless Sharing – TZY31 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which BenQ displays are compatible with the TZY31?
The TZY31 is compatible with RM03 series displays through USB Type-C, and with RP02, RE01, RM02K, RM02S, CP01K, CS01, SL02K and VC01A series through a USB Type-C to USB Type-A adapter. Procure.ae can confirm the right pairing for your model before you order.
Does the TZY31 need cables to share a screen?
No. The TZY31 is designed for sharing content to a BenQ large-panel display from any laptop without cables, with one click. Its wireless transmission runs at up to 60 fps depending on the environment.
What power does the TZY31 need?
The TZY31 uses a DC 5 V, 0.9 A (maximum) power supply and draws up to 4.5 W at full load. Its operating temperature range is 0 to 40 °C. Procure.ae can confirm the power setup for your display before installation.
Can I buy the TZY31 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
