BarcoMeeting Room SolutionsSKU ClickShare X-Display 86
Barco ClickShare X-Display 86-inch All-in-One Display – ClickShare X-Display 86

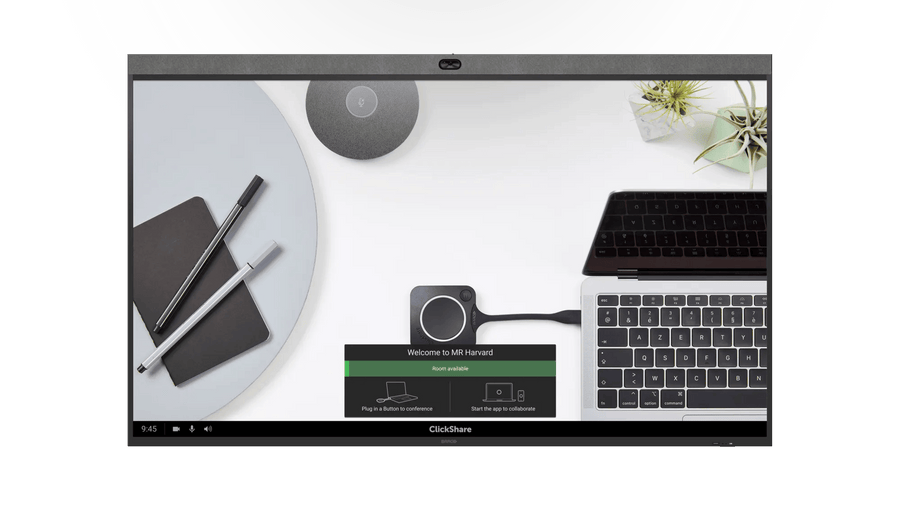

The Barco ClickShare X-Display 86 is an 86-inch all-in-one meeting room display with a 4K UHD panel, a 4K 50 MP camera and a 16-microphone array. It offers 400 nits typical brightness and a 1,200:1 contrast ratio for larger hybrid meeting rooms. Procure.ae supplies it across the UAE with quotes, delivery and installation.
The display combines an 86-inch 4K UHD panel (3840 x 2160) with 400 nits typical brightness, 94% P3 colour gamut and a D-LED backlight. The 50 MP camera has a 99° field of view, 5x digital zoom, Speaker framing and Group framing for up to 8 people. Its 16 beamforming MEMS microphones pick up sound up to 12 metres away across a 180° angle, and the 2.1 speaker system outputs 2 x 15 W plus 20 W.
The 86-inch model is 1932 mm wide and weighs 62.3 kg gross (47 kg net), so check the doorway, lift and wall or floor stand load before delivery. It suits larger hybrid meeting rooms that need one unit for display, camera, microphones and speakers. Compared with the 65-inch model, its contrast ratio is 1,200:1 rather than 4,000:1, and its maximum operating power is under 320 W rather than under 180 W.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (typical)
Type
All-in-One Meeting Room Display
- 86-inch 4K UHD display
- 50 MP 4K camera
- Group and intelligent framing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-inch 4K UHD display
Panel at 3840 x 2160 with 400 nits typical brightness.
02
50 MP 4K camera
99° field of view, 5x digital zoom and Speaker framing.
03
Group and intelligent framing
Group framing for up to 8 people and Intelligent tracking.
04
16-microphone array
Beamforming MEMS microphones with 12 m pickup across 180°.
05
Echo and reverb control
Echo cancellation, dereverberation and automatic gain control.
06
2.1 speaker system
Five speaker units with 2 x 15 W + 20 W output.
07
RS232 and Ethernet
One RS232 (DB9) port and two RJ45 1 Gbps Ethernet ports.
Specifications
30 specificationsGeneral
ModelClickShare X-Display 86
TypeAll-in-One Meeting Room Display
What's in the BoxPower cord, remote control, wall-mounted bracket, storage box, USB-C cable
Display
BacklightD-LED
Brightness400 nits (typical)
Camera4K 50 MP camera, 99° FOV, 5x digital zoom, SONY sensor
Color Gamut94% P3 (typical)
Contrast Ratio1,200:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size86 inch
Performance
Storage Conditions-20 to 60 °C, 10% to 90% RH
Audio
Audio OutSPDIF × 1
Frequency Response60 Hz to 20 kHz
Microphone16 beamforming MEMS microphones, 12 m pickup, 180° angle
Speaker Configuration2.1 channel stereo, 5 speaker units
Speaker Output2 x 15 W + 20 W
Connectivity
EthernetRJ45 (1 Gbps) × 2
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS slot, CX-M optional
PortsHDMI In × 2 (HDMI 2.0), HDMI Out × 1, USB-C × 2 (front and board), USB-A 3.0 × 2, USB-B 2.0 × 1, USB-A 2.0 × 1 (X-Display upgrade only)
Serial PortRS232 (DB9) × 1
Power
Power ConsumptionUnder 320 W (maximum operating)
Standby PowerUnder 0.5 W
Physical
Dimensions1932 x 1175 x 82.5 mm (W x H x D)
MountingWall-mounted bracket included, floor stand optional
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Weight47 kg net, 62.3 kg gross
Compliance
CertificationsCCC, CE, China Energy Label 2, China RoHS
Downloads
Manufacturer documents for the Barco ClickShare X-Display 86-inch All-in-One Display – ClickShare X-Display 86 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ClickShare X-Display 86?
It is an 86-inch all-in-one meeting room display from Barco that combines a 4K UHD screen, a 4K 50 MP camera, a 16-microphone array and a 2.1 speaker system in one unit. It is designed for larger hybrid meeting rooms.
What size room does the ClickShare X-Display 86 suit?
The manufacturer's specifications do not state a recommended room size. Check the 99° camera field of view and 12-metre microphone pickup against your room layout, and Procure.ae can confirm coverage before installation.
Does the ClickShare X-Display 86 support RS232 control?
Yes. The manufacturer lists one RS232 (DB9) port. Procure.ae can confirm the control protocol and command set for your integration before you order. The unit also has two RJ45 1 Gbps Ethernet ports for network connection.
Can the ClickShare X-Display 86 be wall mounted?
Yes. The manufacturer lists a wall-mounted bracket as included and a floor stand as optional. At 62.3 kg gross, check the wall structure and bracket fitting before installation.
Can I buy the ClickShare X-Display 86 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
