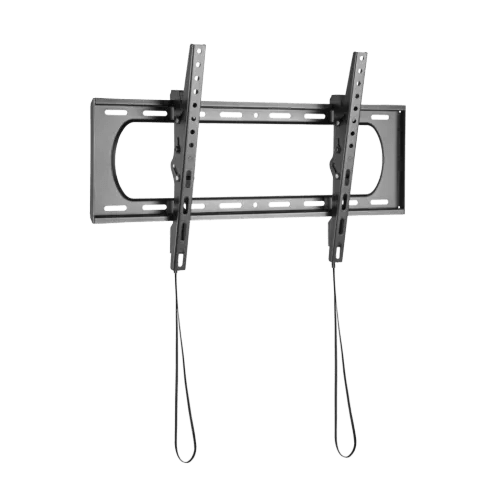

VSYS VS01A-46T Heavy-Duty Tilt TV Wall Mount for 37"–86" Displays, 80 kg
- Model: VS01A-46T
- SKU: VS01A-46T
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VS01A-46T is a heavy-duty tilting wall mount for 37"–86" flat and curved displays weighing up to 80 kg, available in the UAE from Procure.ae. Screens rarely end up at eye level. Above a reception desk, a retail counter or a lecture-theatre whiteboard,... See More
The VSYS VS01A-46T is a heavy-duty tilting wall mount for 37"–86" flat and curved displays weighing up to 80 kg, available in the UAE from Procure.ae.
Screens rarely end up at eye level. Above a reception desk, a retail counter or a lecture-theatre whiteboard, a flat-hung panel throws ceiling light straight back at the audience and forces viewers to look up at an oblique angle. The VS01A-46T corrects that geometry with a tilt yoke that runs from plus 10 to minus 10 degrees, while keeping the load path through 1.8mm cold-rolled steel arms and wall plate rated to 80 kg and strength-tested four times.
The tilt angle is set by hand, with no tools and no need to unhook the panel, so an installer can commission the screen, stand back, and fine-tune the angle from the floor. Bracket arms accept VESA patterns from 50x50mm to 600x400mm, up to a 645x402mm hole spread. The plate mounts to solid walls or spans studs at 406mm, 450mm or 600mm centres, sits 60mm off the surface to give the mechanism room to swing, and releases via pull-cord spring locks for rear access.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Toolless tilt from plus 10 to minus 10 degrees, adjustable after commissioning without dismounting the display.
- 80 kg (176 lb) rating on 1.8mm cold-rolled steel arms and wall plate, strength-tested four times.
- 60mm wall clearance gives the tilt mechanism travel while keeping the panel visually close to the wall.

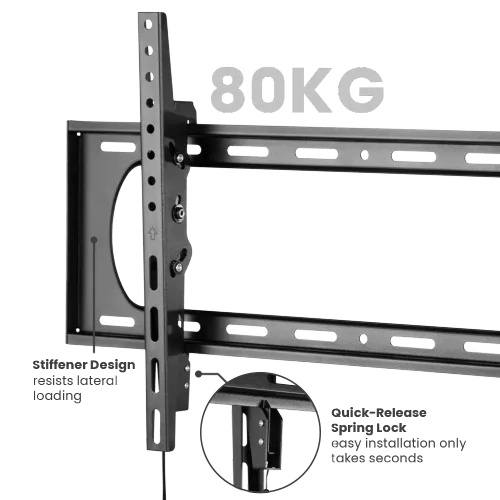

- Pull-cord quick-release spring locks so one technician can lift the screen off for cabling or service.
- Open-architecture plate keeps sockets, conduit and airflow accessible behind the panel.
- VESA 50x50mm to 600x400mm with a 645x402mm maximum hole spread, covering most 37-86 inch commercial and consumer panels.
- Fixes to solid walls or dual studs at 406mm, 450mm or 600mm centres, with a hook-on bubble level in the box.
- Handles curved as well as flat screens inside the rated envelope.

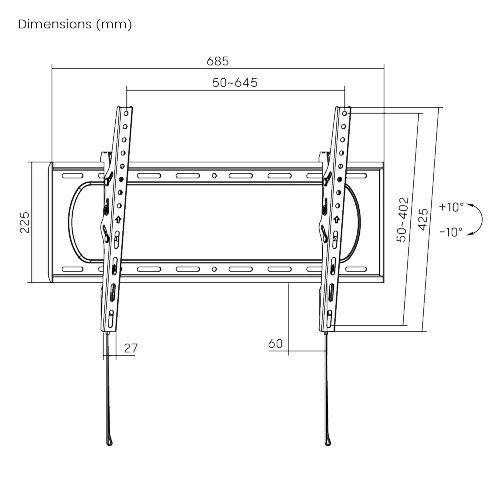

Technical Specifications
| Model | VS01A-46T |
| Type | Tilting TV wall mount |
| Screen size range | 37" to 86" |
| Weight capacity | 80 kg (176 lb) |
| VESA compatibility | 50x50mm to 600x400mm (max hole spread 645x402mm) |
| Tilt range | Plus 10 to minus 10 degrees, toolless |
| Swivel | None |
| Wall clearance | 60mm (2.4") |
| Material | 1.8mm cold-rolled steel |
| Finish | Powder-coated black |
| Stud spacing | 406mm, 450mm or 600mm; also suits solid walls |
| Testing | Strength tested 4x |

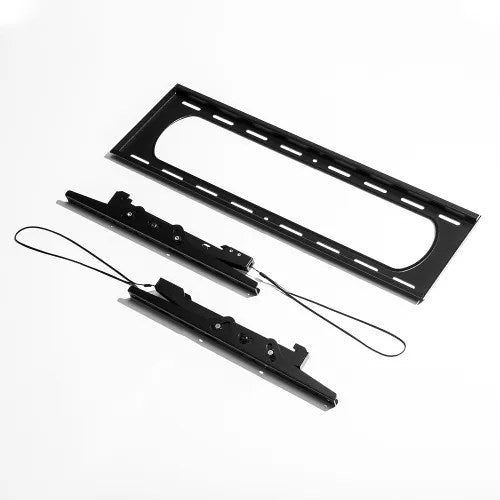

| In the box | Wall plate, bracket arms, mounting hardware kit, hook-on bubble level, installation instructions |
Ideal for: reception and lobby screens hung above desk height, retail and mall signage, classrooms and training rooms, airport and metro information displays, hotel public areas, warehouse and factory floor screens, and clinic waiting areas across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VS01A-46T Heavy-Duty Tilt TV Wall Mount for 37"–86" Displays, 80 kg |
| Mounting Type | Wall mount, solid wall or dual stud at 406mm, 450mm or 600mm centres |
| Screen Size Support | 37 to 86 inch flat and curved displays |
| Wall Mount Type | Tilt |
| Product Type | Tilting TV wall mount |
| Screen Size Range | 37 to 86 inches |
| Load Capacity | 80 kg (176 lb) |
| VESA Compatibility | 50x50mm to 600x400mm, maximum hole spread 645x402mm |
| Movement | Toolless tilt, plus 10 to minus 10 degrees |
| Tilt | Plus 10 to minus 10 degrees, toolless adjustment |
| Swivel | None |
| Wall Clearance | 60mm (2.4 inches) |
| Material and Finish | 1.8mm cold-rolled steel |
| Available Finishes | Powder-coated black |
| Mounting Interface | VESA 50x50mm to 600x400mm |
| Cable Management | Open architecture wall plate allows outlets and cabling behind the display |
| Testing and Certification | Strength tested 4 times |
| In the Box | Wall plate, bracket arms, mounting hardware kit, hook-on bubble level, installation instructions |
| MPN | VS01A-46T |
| Model | VS01A-46T |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VS01A-46T in the UAE?
Procure.ae supplies the VSYS VS01A-46T across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How much does it tilt, and do I need tools?
The range is plus 10 to minus 10 degrees and the adjustment is toolless. The angle can be reset at any time after installation without taking the display off the wall, which matters when a room's seating or lighting layout changes.
How far off the wall does the panel sit?
60mm, roughly 2.4 inches. That clearance is what allows the tilt mechanism to rotate; a flush 30mm result would require a fixed mount instead.
Which displays fit this mount?
Flat or curved panels from 37 to 86 inches, weighing 80 kg or less, with a VESA pattern between 50x50mm and 600x400mm and a hole spread no wider than 645x402mm. Send us the display model number and we will confirm the fit before you order.
Can it be supplied in project quantities?
Yes. Procure.ae quotes the VS01A-46T for multi-unit fit-outs and rollouts, with consolidated delivery across the UAE and GCC and documentation suitable for tender and procurement submissions.
