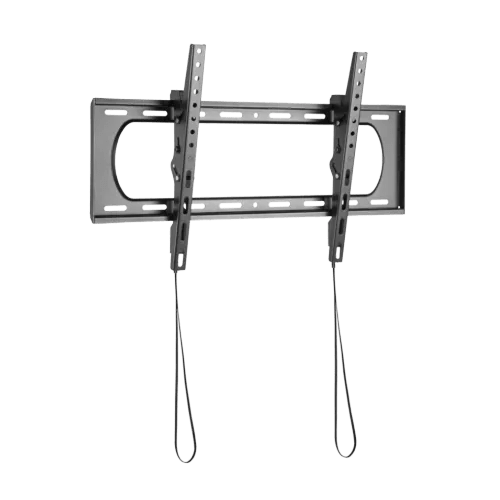

VSYS VS01A-46T Heavy-Duty Tilt TV Wall Mount for 37"–86" Displays, 80 kg

The VSYS VS01A-46T is a heavy-duty tilting wall mount for 37"–86" flat and curved displays weighing up to 80 kg, available in the UAE from Procure.ae.

Screens rarely end up at eye level. Above a reception desk, a retail counter or a lecture-theatre whiteboard, a flat-hung panel throws ceiling light straight back at the audience and forces viewers to look up at an oblique angle. The VS01A-46T corrects that geometry with a tilt yoke that runs from plus 10 to minus 10 degrees, while keeping the load path through 1.8mm cold-rolled steel arms and wall plate rated to 80 kg and strength-tested four times.

The tilt angle is set by hand, with no tools and no need to unhook the panel, so an installer can commission the screen, stand back, and fine-tune the angle from the floor. Bracket arms accept VESA patterns from 50x50mm to 600x400mm, up to a 645x402mm hole spread. The plate mounts to solid walls or spans studs at 406mm, 450mm or 600mm centres, sits 60mm off the surface to give the mechanism room to swing, and releases via pull-cord spring locks for rear access.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
