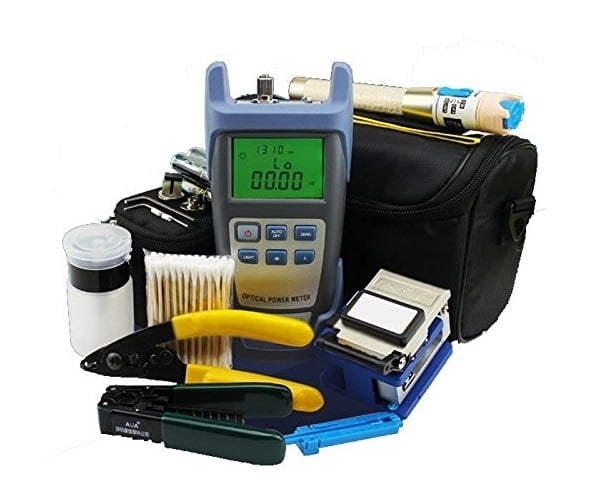

Zoostliss FTTH Fiber Optic Tool Kit with Medidor Fibra Optic and Visual Fault Locator and Cable Cutter Stripper FC-6S Fiber Cleaver

Product Description

Portable optical power meter is an accurate and durable handheld meter designed for the installation, operation and maintenance of optical fiber network. It is a compact device with backlight switch and auto power on-off ability. Besides, it provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port. In addition, it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same time.

Specification:
Wavelength(nm): 800~1700nm
Detector: InGaAs
Measurement Range (dBm): -70~+10
Uncertainty: ±0.2(5%)
Calibrated Wavelength(nm): 850,980,1300,1310,1490,1550
Resolution(dB): Linear indication: 0.1% Loharithmic indication: 0.01dBm
Optical Connector: FC/ Universal 2.5mm adaptor
Operating Temperature: -10 ~ +60C
Storage Temperature: -25 ~ +70C
Relative Humidity: 0 to 95% (non-condensing)
Dimension(mm): 190×100×48

Fiber Cleaver FC-6S Features and  Functions :

high quality fiber cutting knife (recommended for FTTH cold welding, hot melt connection is not recommended for the use of this paragraph). Simple operation; single core fiber for single mode or multimode cutting; 12 cutting end face; blade long life; adjust the peeling length is: 5~20mm; technical specifications: fiber size: 125um; skin diameter: 250~900um.
