YealinkMeeting Room SolutionsSKU CP925

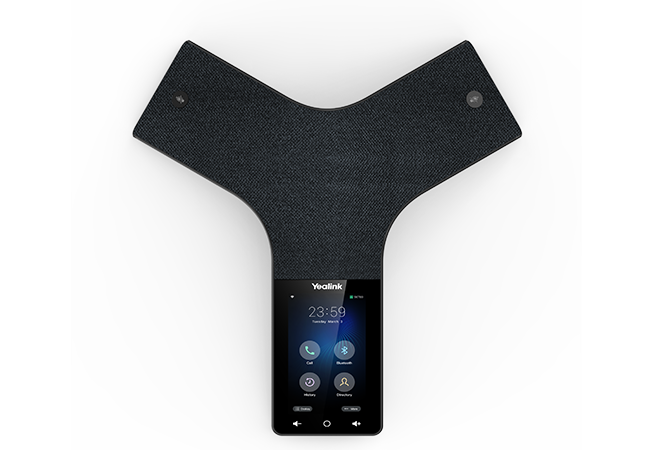

Yealink CP925 Touch-Sensitive HD Conference Phone – CP925
The Yealink CP925 is a touch-sensitive HD conference phone for small to medium conference rooms. It has a frequency response of 100 Hz to 20 kHz and a peak volume of 94 dB at 0.5 m. It supports G.722, G.729 and other codecs and can be powered by PSU or PoE. Procure.ae supplies the CP925 across the UAE.
The CP925 is a touch-sensitive HD conference phone with a frequency response of 100 Hz to 20 kHz and a peak volume of 94 dB at 0.5 m. It supports G.722, G.722.1C, G.726, G.729, G.723, iLBC and G.711 codecs. DTMF can be sent in-band, by RFC 2833 or by SIP INFO. Call history records dialed, received, missed and forwarded calls, and STUN NAT traversal is supported.
The CP925 fits small to medium conference rooms that need a clear, touch-operated phone on the desk. It supports static or DHCP IP assignment, 802.1p/Q VLAN tagging and Layer 3 ToS or DSCP quality of service, so it can sit in a managed voice network. Power comes from a PSU at 3.5 to 11 W or from PoE at 4 to 12 W. Procure.ae can advise on the setup for your phone system.
Volume
94 dB at 0.5 m (peak)
Type
Touch-Sensitive HD Conference Phone
- Touch-Sensitive Interface
- Frequency Response
- Peak Volume
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Touch-Sensitive Interface
Touch-sensitive HD conference phone.
02
Frequency Response
Covers 100 Hz to 20 kHz.
03
Peak Volume
94 dB at 0.5 m peak volume.
04
Codec Support
G.722, G.722.1C, G.726, G.729, G.723, iLBC and G.711 codecs.
05
DTMF Options
In-band, RFC 2833 and SIP INFO DTMF.
06
Call History
Dialed, received, missed and forwarded calls.
07
Network Controls
STUN NAT traversal, static or DHCP IP, 802.1p/Q VLAN and DSCP QoS.
08
Flexible Power
PSU at 3.5 to 11 W or PoE at 4 to 12 W.
Specifications
14 specificationsGeneral
Key FeaturesTouch-sensitive HD phone, in-band / RFC 2833 / SIP INFO DTMF, call history (dialed, received, missed, forwarded), PSU or PoE power
ModelCP925
TypeTouch-Sensitive HD Conference Phone
Display
TouchscreenTouch-sensitive
Performance
Storage Conditions-30 to +70 °C
Audio
Audio CodecsG.722, G.722.1C, G.726, G.729, G.729A, G.723, iLBC, G.711µ (PCMU), G.711A (PCMA)
Frequency Response100 Hz to 20 kHz
Connectivity
ProtocolsSTUN NAT traversal, static or DHCP IP, 802.1p/Q VLAN, Layer 3 ToS / DSCP QoS
Power
Power Consumption3.5–11 W (PSU); 4–12 W (PoE)
Physical
ColorBlack
Dimensions285 x 59.1 x 289.5 mm
Operating Humidity10% to 90%
Operating Temperature-10 to +45 °C
Volume94 dB at 0.5 m (peak)
Downloads
Manufacturer documents for the Yealink CP925 Touch-Sensitive HD Conference Phone – CP925 — datasheets, manuals, drawings and certificates.
- Datasheet – CP925
- User manual – CP
- User manual – CP
- User manual – CP
- User manual – CP
- User manual – CP
- User manual – CP
- User manual – CP
- User manual – CP
- User manual – CP
- User manual – CP
- Using Security Certificates on Yealink IP Phones V1.4
- Calling and Connected Line Identification Presentation on Yealink IP Phones
- LDAP Directory on Yealink IP Phones
- Recovery Mode on Yealink IP Phones V86
- Server Redundancy on Yealink IP Phones
- OpenVPN Feature on Yealink IP Phones V1.0
- Using Ribbon Features on Yealink IP Phones V1.0
- Using Enhanced DSS Keys on Yealink IP Phones V1.0
- VLAN Feature on Yealink IP Phones
- Yealink 802.1X Authentication
- Yealink SIP IP Phones XML Browser Developer's Guide V1.0
- Yealink SIP Phones Integrated with Metaswitch CommPortal Phone Applications User Guide V1.
- Yealink IP Phones Deployment Guide for BroadSoft UC-One Environment V1.6
- Yealink SIP Phones Integrated with Metaswitch Configuring Guide V1.5
- Yealink IP Phone Features Integrated with BroadSoft UC-One User Guide V1.5
- Yealink Regulatory Notice V1.2
Questions
Can’t find your answer? Ask on WhatsApp
Is the CP925 suitable for small to medium conference rooms?
Yes. Yealink describes the CP925 as a touch-sensitive HD conference phone designed for small to medium conference rooms. Its 94 dB peak volume at 0.5 m and 100 Hz to 20 kHz frequency response suit that room size.
Which audio codecs does the CP925 support?
The CP925 supports G.722, G.722.1C, G.726, G.729, G.729A, G.723, iLBC, G.711µ (PCMU) and G.711A (PCMA). Support for this range of codecs gives the phone flexibility when it connects to different voice systems.
Can the CP925 be powered over Ethernet?
Yes. The CP925 can be powered by PoE, which draws 4 to 12 W, or by its PSU, which draws 3.5 to 11 W. Using PoE lets you run one Ethernet cable to the desk instead of a separate power outlet in the room.
What IP and network settings does the CP925 support?
The CP925 supports static or DHCP IP assignment, STUN NAT traversal and 802.1p/Q VLAN tagging, with Layer 3 ToS or DSCP quality of service. These settings let the phone fit into a managed network with defined quality of service.
What temperature range does the CP925 operate in?
The CP925 operates between -10 and +45 °C (+14 to 113 °F) at 10% to 90% humidity. Storage is rated from -30 to +70 °C (-22 to +158 °F), so the phone can be held in a store room between installations.
