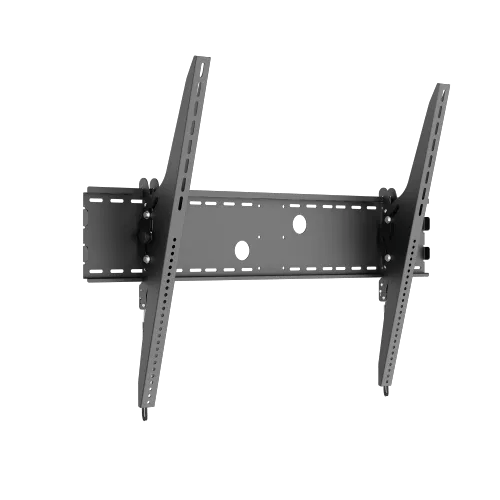

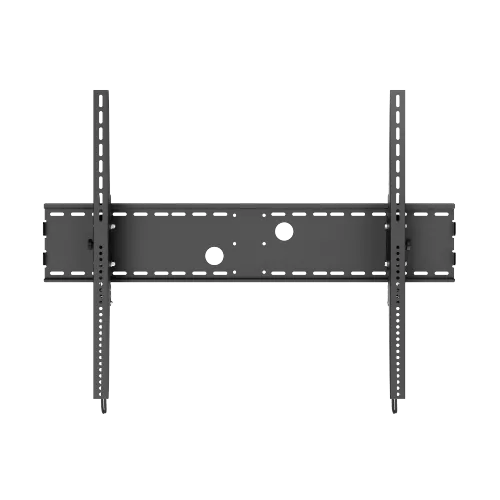

VSYS VS01XL-810T X-Large Heavy-Duty Tilt TV Wall Mount for 60"–100" Displays, 100 kg
- Model: VS01XL-810T
- SKU: VS01XL-810T
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VS01XL-810T is an extra-large tilting wall mount for 60"–100" displays weighing up to 100 kg, available in the UAE from Procure.ae. Panels beyond 80 inches change the problem. Their VESA patterns outgrow standard brackets, their mass concentrates high on the wall, and... See More
The VSYS VS01XL-810T is an extra-large tilting wall mount for 60"–100" displays weighing up to 100 kg, available in the UAE from Procure.ae.
Panels beyond 80 inches change the problem. Their VESA patterns outgrow standard brackets, their mass concentrates high on the wall, and a mounting position dictated by stud centres rarely lines up with where the screen should sit in the room. The VS01XL-810T is dimensioned for that class of display: 2mm cold-rolled steel, a 100 kg rating, UL approval, four-times strength testing, and a VESA window that reaches 1000x800mm.
Two mechanisms do the fine work. Lateral shift brackets let the mounted panel slide horizontally, so a screen fixed to fixed stud positions can still be centred on a feature wall or aligned to a stage. A toolless tilt yoke covers plus 15 to minus 15 degrees, a wider arc than a typical tilt mount, which matters when a 100-inch screen is hung well above seated eye level. Pull-cord spring locks release the panel for rear access; the assembly stands 120mm off the wall.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features

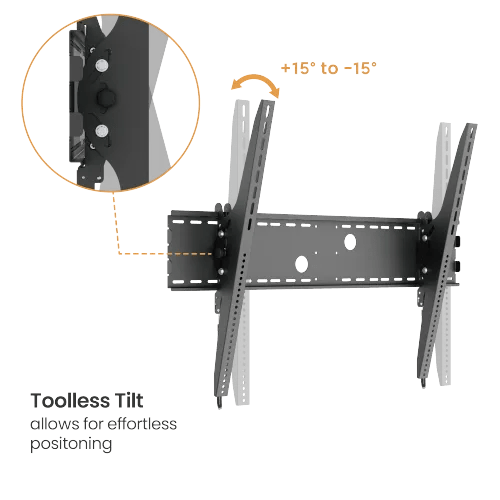

- Plus 15 to minus 15 degree toolless tilt, a wider arc than standard tilt brackets, for screens mounted high in auditoriums and halls.
- 100 kg (220 lb) capacity on 2mm cold-rolled steel, UL approved and strength-tested four times.
- Lateral shift brackets allow the display to be slid left or right after mounting to centre it on the wall.
- VESA 200x200mm to 1000x800mm covers the oversized patterns used on 85, 98 and 100 inch panels.
- Wide, deep bracket structure distributes load across dual studs at 406mm, 450mm or 600mm centres.

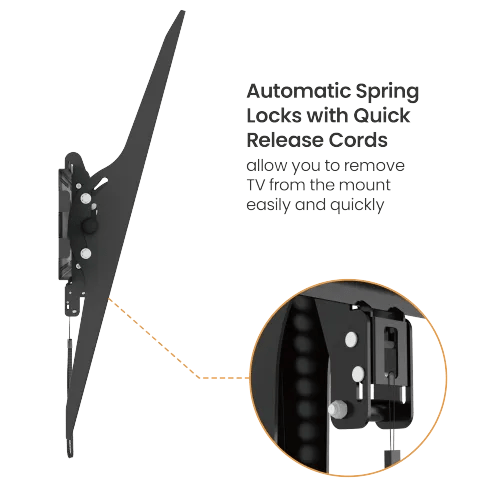

- Pull-cord quick-release spring locks let a service team detach even a large panel for cabling or maintenance.
- 120mm wall clearance leaves working room behind the screen for connectors, media players and heat dissipation.
- Suits flat and curved panels from 60 to 100 inches, so one part number can cover several screen sizes in a rollout.
Technical Specifications
| Model | VS01XL-810T |
| Type | X-large tilting TV wall mount |
| Screen size range | 60" to 100" |
| Weight capacity | 100 kg (220 lb) |
| VESA compatibility | 200x200mm to 1000x800mm |
| Tilt range | Plus 15 to minus 15 degrees, toolless |
| Lateral adjustment | Lateral shift brackets for post-installation centring |
| Wall clearance | 120mm (4.7") |
| Material | 2mm cold-rolled steel |
| Finish | Powder-coated black |
| Stud spacing | 406mm, 450mm or 600mm dual stud |
| Certification and testing | UL approved, strength tested 4x |
| In the box | Wall plate, bracket arms, lateral shift brackets, heavy-duty mounting hardware kit, installation instructions |
Ideal for: auditoriums and lecture theatres, hotel ballrooms and event venues, corporate town-hall and all-hands spaces, airport and transport concourse displays, large-format retail signage, and government briefing rooms across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VS01XL-810T X-Large Heavy-Duty Tilt TV Wall Mount for 60"–100" Displays, 100 kg |
| Mounting Type | Wall mount, dual stud at 406mm, 450mm or 600mm centres or solid wall |
| Screen Size Support | 60 to 100 inch flat and curved displays |
| Wall Mount Type | Tilt with lateral shift |
| Product Type | X-large tilting TV wall mount |
| Screen Size Range | 60 to 100 inches |
| Load Capacity | 100 kg (220 lb) |
| VESA Compatibility | 200x200mm to 1000x800mm |
| Movement | Toolless tilt plus 15 to minus 15 degrees, with lateral shift adjustment |
| Tilt | Plus 15 to minus 15 degrees, toolless adjustment |
| Swivel | None |
| Wall Clearance | 120mm (4.7 inches) |
| Material and Finish | 2mm cold-rolled steel |
| Available Finishes | Powder-coated black |
| Mounting Interface | VESA 200x200mm to 1000x800mm |
| Testing and Certification | UL approved, strength tested 4 times |
| In the Box | Wall plate, bracket arms, lateral shift brackets, heavy-duty mounting hardware kit, installation instructions |
| MPN | VS01XL-810T |
| Model | VS01XL-810T |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VS01XL-810T in the UAE?
Procure.ae supplies the VSYS VS01XL-810T across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
What makes this different from a standard tilt mount?
Three things: a 1000x800mm maximum VESA pattern instead of 600x400mm, a plus or minus 15 degree tilt arc rather than 10, and lateral shift brackets that allow the panel to be repositioned horizontally once it is on the wall.
Can I recentre the screen after it is installed?
Yes. The lateral shift brackets slide the display sideways on the wall plate, which is how installers reconcile fixed stud positions with the visual centre of a room or feature wall.
Is it certified for heavy panels?
It is UL approved and strength-tested four times at a 100 kg rating. For panels near that limit, plan a two-person lift and confirm the wall structure can carry the concentrated load before fixing.
Will it fit a 98 or 100 inch commercial display?
Provided the panel weighs 100 kg or less and its VESA pattern falls between 200x200mm and 1000x800mm, yes. Send the display model number with your enquiry and we will check the mounting pattern against the bracket before quoting.
