WIDESKY V Type Blade Plastic Crusher with 18mm Max Thickness, High Torque Blades & Output up to 1000KG/H
- SKU: V TYPE BLADE CRUSHER
Actual Stock & Price Can Be Confirmed After Placing the Order.

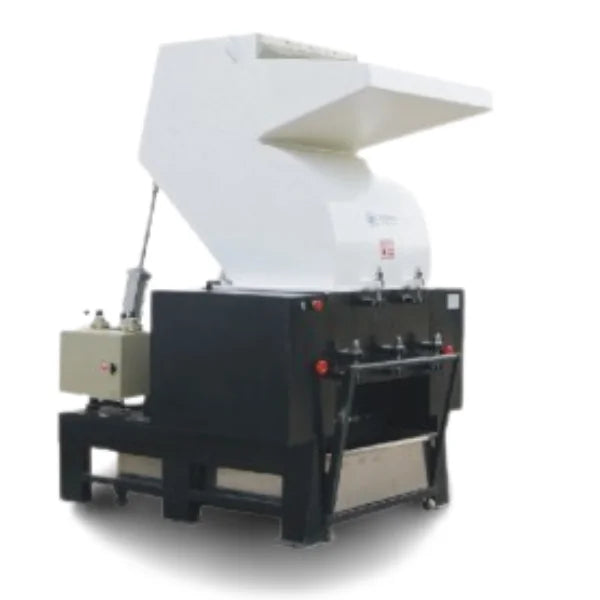

The WIDESKY V Type Blade Crusher is a powerful plastic crushing machine designed to handle plastic film, drums, and lumps with a thickness of up to 18mm. It features a unique V-shaped blade design that provides better grip and reduces vibration during operation. The... See More
The WIDESKY V Type Blade Crusher is a powerful plastic crushing machine designed to handle plastic film, drums, and lumps with a thickness of up to 18mm. It features a unique V-shaped blade design that provides better grip and reduces vibration during operation. The machine is available in multiple models with crushing capacities ranging from 400 to 1000 kg/h. Equipped with high-diameter rotors and 6 rotary blades, the system delivers precise cutting with minimal waste. Built-in silo storage and conveyor options enable streamlined material flow. Its robust industrial frame, combined with low energy consumption motors, supports continuous operation. Ideal for mid to large-scale plastic recycling facilities, the V Type Blade Crusher enhances output while ensuring processing stability and noise reduction.
Key Features
-

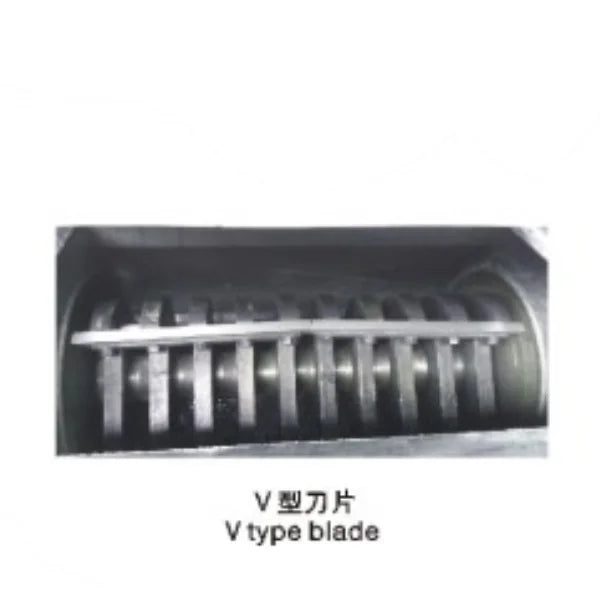

V-Type Blade Design – Enhances grip on plastic material and reduces vibration.
-
Supports Up to 18mm Thickness – Processes thick films, containers, and industrial lumps.
-
Crushing Capacity up to 1000KG/H – High-efficiency shredding for heavy-duty operations.
-
Multiple Model Options – Available from PC-600 to PC-1200 based on throughput.
-
6 Rotary Blades – Offers precise and consistent material slicing with each cycle.
-
4 Stationary Blades – Complements rotary blades for clean, efficient shredding.
-

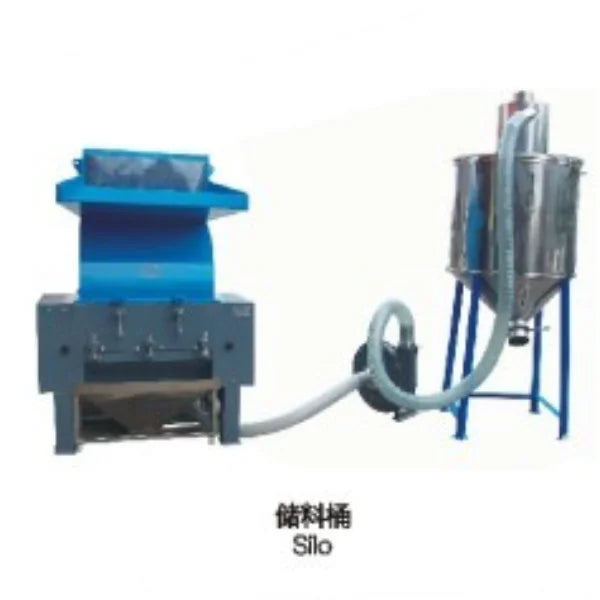

Integrated Silo – Facilitates smooth material collection and storage post-crushing.
-

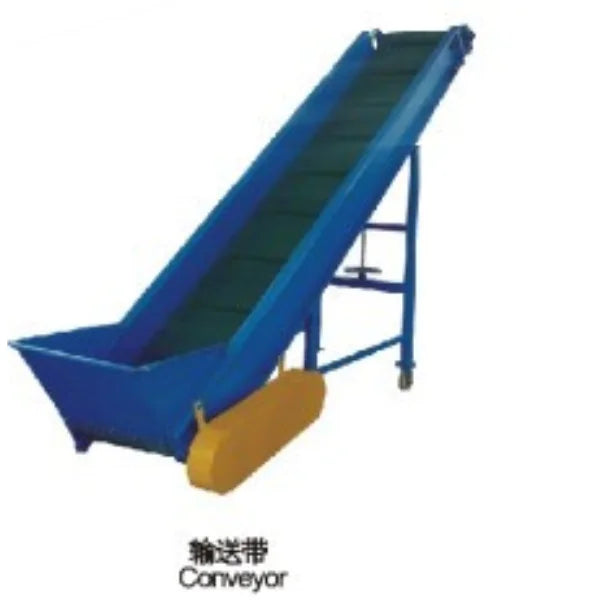

Conveyor Compatible – Supports seamless input and output material handling.
-
Heavy-Duty Steel Frame – Ensures long-term durability under industrial loads.
-
Low Energy Usage – Motor options from 15KW to 45KW depending on model.
-
Compact Footprint Design – Fits well into existing production lines.
-
Safe & Easy Maintenance – Designed for minimal downtime and tool-less blade changes.

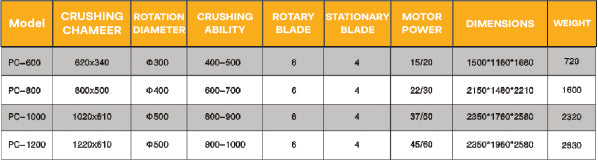

Product Models
| Model | Crushing Chamber (mm) | Rotation Diameter (mm) | Crushing Ability (kg/h) | Rotary Blade (pcs) | Stationary Blade (pcs) | Motor Power (kW/HP) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| PC-600 | 620×340 | Ø300 | 400–500 | 6 | 4 | 15/20 | 1500×1160×1680 | 720 |
| PC-800 | 800×500 | Ø400 | 600–700 | 6 | 4 | 22/30 | 2150×1480×2210 | 1600 |
| PC-1000 | 1020×810 | Ø500 | 800–1000 | 6 | 4 | 37/50 | 2350×1760×2580 | 2230 |
| PC-1200 | 1220×610 | Ø610 | 900–1100 | 6 | 4 | 45/60 | 2350×1980×2560 | 2830 |
The WIDESKY V Type Blade Crusher combines a powerful blade system, support for thick plastic waste, and up to 1000KG/H crushing output. Built for industrial plastic recycling, it ensures durable, low-vibration, and energy-efficient operation across various production lines.
| Name | WIDESKY V Type Blade Plastic Crusher with 18mm Max Thickness, High Torque Blades & Output up to 1000KG/H |
| Model | V TYPE BLADE CRUSHER |
