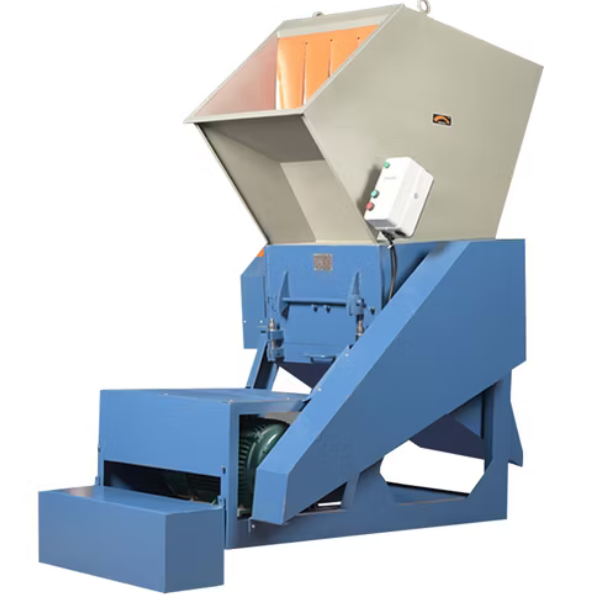

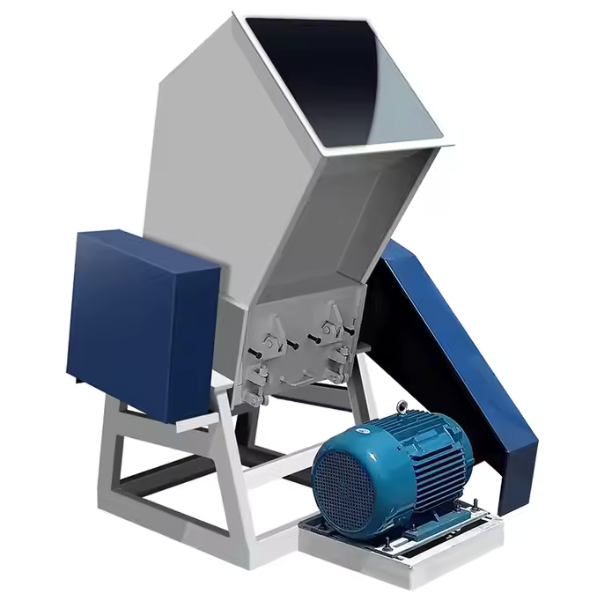

Long Blade Plastic Crusher with 1000mm Chamber, 37KW Motor & 800KG/H Capacity
- SKU: LONG BLADES CRUSI
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Long Blades Crusher is designed for crushing PVC pipes, buckets, fruit baskets, beer baskets, and plastic drums. Featuring an extra-wide 1000mm chamber, it can process bulky, rigid plastic items with ease. Equipped with long rotary blades and stationary cutting arms, the machine delivers... See More
The Long Blades Crusher is designed for crushing PVC pipes, buckets, fruit baskets, beer baskets, and plastic drums. Featuring an extra-wide 1000mm chamber, it can process bulky, rigid plastic items with ease. Equipped with long rotary blades and stationary cutting arms, the machine delivers consistent and high-output shredding performance. Its heavy-duty frame, coupled with a 37KW motor, ensures powerful torque for demanding applications. Crushing capacity ranges from 300 to 800 KG/H depending on the model. A specialized feeding mechanism and optimized blade arrangement minimize downtime and energy waste. Compact and efficient, this unit is ideal for mid to large-scale plastic recycling plants requiring bulk recovery and high throughput.
Key Features
-
Wide Crushing Chamber – Up to 1000mm for handling large and irregular plastic shapes.
-
Long Rotary Blades – Designed to handle bulky items like baskets and barrels.
-
Crushing Output up to 800KG/H – Supports mid to high-volume recycling operations.
-
37KW Industrial Motor – Delivers strong torque for thick and tough materials.
-
Durable Steel Structure – Engineered for rugged environments and extended use.
-
4 Stationary Cutting Blades – Work in tandem with rotary blades for clean shearing.
-
Adjustable Output Range – Ideal for various thicknesses and material types.
-
Compact Installation Footprint – Optimized for recycling floor space.
-
Low Vibration Operation – Ensures smooth cutting and longer blade life.
-
Minimal Maintenance – Simple access to parts and easy cleaning.
-
Energy Efficient Performance – Balanced power-to-output ratio.
-
Ideal for Rigid Plastics – Especially PVC, PE, and HDPE materials.
Product Models
| Model | Crushing Chamber (mm) | Crushing Ability (kg/h) | Rotary Blade (pcs) | Stationary Blade (pcs) | Motor Power (kW/HP) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| PC-650WB | 650×870 | 300–600 | 6 | 4 | 18.5/25 | 1400×1040×1620 | 1030 |
| PC-700WB | 700×870 | 400–700 | 6 | 4 | 30/40 | 1500×1120×1700 | 1430 |
| PC-800WB | 800×870 | 500–800 | 6 | 4 | 37/50 | 1700×1200×1850 | 1740 |
| PC-1000WB | 1000×700 | 500–800 | 6 | 4 | 37/50 | 1800×1350×1900 | 2000 |
The Long Blades Crusher features a 1000mm crushing width, high-speed rotary blade system, and up to 800KG/H capacity for bulky PVC and plastic containers. Built for heavy-duty recovery tasks, it ensures reliable operation across industrial recycling workflows.
| Name | Long Blade Plastic Crusher with 1000mm Chamber, 37KW Motor & 800KG/H Capacity |
| Model | LONG BLADES CRUSI |
