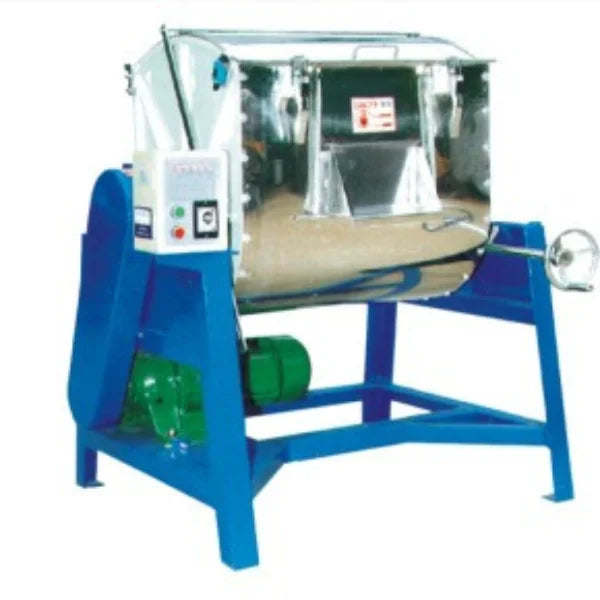

Horizontal Color Mixer with 200KG Capacity, Tilt Design & Overload Protection
- SKU: HORIZONTAL COLOR MIXER
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Horizontal Color Mixer is built for uniform mixing of plastic materials and color batches with stainless steel paddles and container for easy cleaning and durability. It supports a tilting function between 0° to 90° for quick discharge and better operator handling. Available in... See More
The Horizontal Color Mixer is built for uniform mixing of plastic materials and color batches with stainless steel paddles and container for easy cleaning and durability. It supports a tilting function between 0° to 90° for quick discharge and better operator handling. Available in 100KG, 150KG, and 200KG models, this mixer offers reliable rotation at 45 RPM, powered by 2.2KW to 4KW motors. It includes a 30-minute automatic stop timer and overload protection, making it a safe and user-friendly choice. Ideal for masterbatch preparation, recycling, and compounding, the mixer ensures even blending, low maintenance, and compact installation footprint.
Key Features
-
0°–90° Tilting Drum – Adjustable angle for effortless material discharge.
-
Fully Stainless Steel Contact Parts – Prevents rust and ensures hygiene.
-
Compact Footprint – Space-saving mixer suitable for small workshops.
-
Available in 3 Sizes – Models with 100KG, 150KG, and 200KG capacities.
-
Powerful Motors – Ranging from 2.2KW to 4KW for stable operation.
-
Fixed 45 RPM Speed – Ensures optimal material movement and dispersion.
-
Auto Timer Feature – Adjustable up to 30 minutes for hands-free control.
-
Overload Safety System – Built-in shutoff prevents motor burnout.
-
Easy Access Design – Simplified operation and faster cleaning cycles.
-
Ideal for Color & Resin Mixing – Works with masterbatch and plastic flakes.
-
Operator Safe Build – Smooth edges and secure panel placement.
-
Low Maintenance Cost – Durable build with minimal moving components.

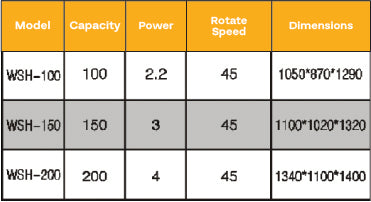

Product Models
| Model | Capacity (kg) | Power (kW) | Rotate Speed (r/min) | Dimensions (L×W×H mm) |
|---|---|---|---|---|
| WSH–100 | 100 | 2.2 | 45 | 1050×870×1290 |
| WSH–150 | 150 | 3 | 45 | 1100×1020×1320 |
| WSH–200 | 200 | 4 | 45 | 1340×1100×1400 |
The Horizontal Mixer is ideal for color blending and plastic resin mixing, offering up to 200KG capacity and 0–90° tilt unloading. With stainless construction, timer function, and 45 RPM rotation, it’s a reliable tool for consistent batch quality.
| Name | Horizontal Color Mixer with 200KG Capacity, Tilt Design & Overload Protection |
| Model | HORIZONTAL COLOR MIXER |
