Flake Crusher with High-Torque Blade Rotor & Adjustable Output
- SKU: Flake Crusher
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Flake Crusher is engineered to recycle hard plastics like bottles, containers, and molded sheets with precision and durability. It features a rotor with high-torque blades, reinforced stationary cutting knives, and adjustable output sieves for optimal flake sizing. The crusher is suitable for HDPE,... See More
The Flake Crusher is engineered to recycle hard plastics like bottles, containers, and molded sheets with precision and durability. It features a rotor with high-torque blades, reinforced stationary cutting knives, and adjustable output sieves for optimal flake sizing. The crusher is suitable for HDPE, LDPE, PVC, and post-industrial plastics. Available in multiple models with crushing capacities ranging from 100 to 1500 kg/h. The rugged frame and stable motor platform enable continuous operation with minimal vibration. Users can choose from nine different models depending on throughput requirements. Each system includes a blade sharpening unit to extend cutter life and performance. Built for demanding environments, the Flake Crusher enhances waste reduction and promotes material recovery.
Key Features
-
Rotor Blade System – Equipped with hardened rotary and stationary blades.
-
Sieve-Controlled Output – Achieves consistent flake size for downstream processing.
-
Nine Model Options – Select from PC180 to PC1000 depending on desired capacity.
-
High Rotation Diameter – Models with up to 610mm blade rotation.
-
Crushing Capacity up to 1500KG/H – Handles heavy-duty recycling needs.
-
Durable Build – Designed for plastic pellets, molded parts, sheets, and more.
-

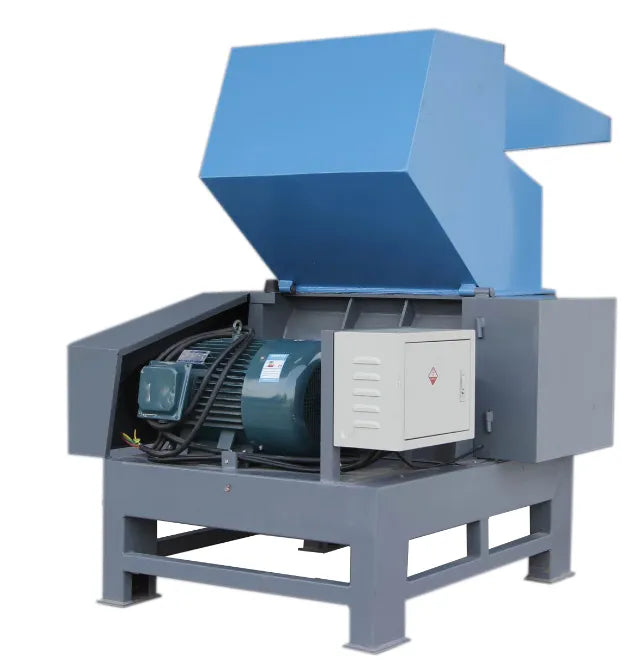

Stabilized Motor Platform – Minimizes vibrations for continuous operation.
-
Blade Sharpener Included – Prolongs cutting efficiency and reduces downtime.
-
Easy Maintenance Access – User-friendly design for quick cleanout and repairs.
-
Compact Footprint – Fits into medium- to large-scale recycling plants.
-
Supports Mixed Plastics – Ideal for HDPE, LDPE, ABS, PVC, and PS.
-
Energy Efficient Operation – Delivers performance without high power usage.

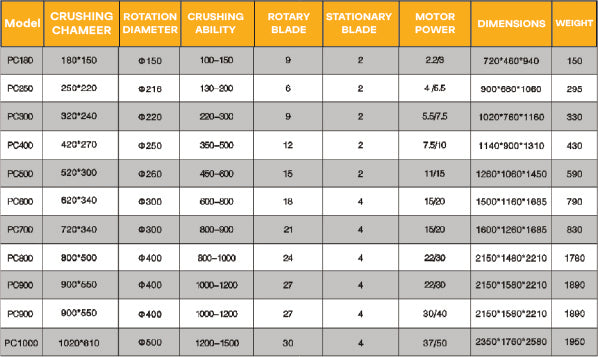

Product Models
| Model | Crushing Chamber (mm) | Rotation Diameter (mm) | Crushing Ability (kg/h) | Rotary Blade (pcs) | Stationary Blade (pcs) | Motor Power (kW/HP) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| PC180 | 180×150 | Ø150 | 100–150 | 6 | 2 | 2.2/3 | 720×640×910 | 150 |
| PC250 | 252×200 | Ø216 | 130–200 | 6 | 2 | 4/5.5 | 900×580×1060 | 295 |
| PC300 | 320×240 | Ø220 | 220–330 | 9 | 2 | 5.5/7.5 | 1020×760×1160 | 330 |
| PC400 | 420×270 | Ø250 | 300–500 | 12 | 2 | 7.5/10 | 1140×900×1360 | 430 |
| PC500 | 520×300 | Ø300 | 400–600 | 15 | 2 | 11/15 | 1300×1020×1600 | 690 |
| PC600 | 620×340 | Ø350 | 500–800 | 18 | 4 | 15/20 | 1500×1160×1685 | 930 |
| PC800 | 820×460 | Ø400 | 800–1200 | 21 | 4 | 22/30 | 1600×1260×1865 | 1250 |
| PC900 | 920×500 | Ø500 | 1000–1500 | 27 | 4 | 30/40 | 2150×1570×2280 | 1650 |
| PC1000 | 1020×610 | Ø610 | 1200–1500 | 30 | 4 | 37/50 | 2350×1760×2580 | 1950 |
The Flake Crusher offers high-capacity plastic recycling with its rotor blade system, multiple models, and reliable crushing power. Built for hard plastic materials, it enables efficient processing from injection-molded waste to sheet scraps.
| Name | Flake Crusher with High-Torque Blade Rotor & Adjustable Output |
| Model | Flake Crusher |
