WIDESKY Big Horizontal Mixer with 3000KG Capacity, 18.5KW Power & Heating-Enabled S-Type Blades
- SKU: Big Horizontal Mixer
Actual Stock & Price Can Be Confirmed After Placing the Order.

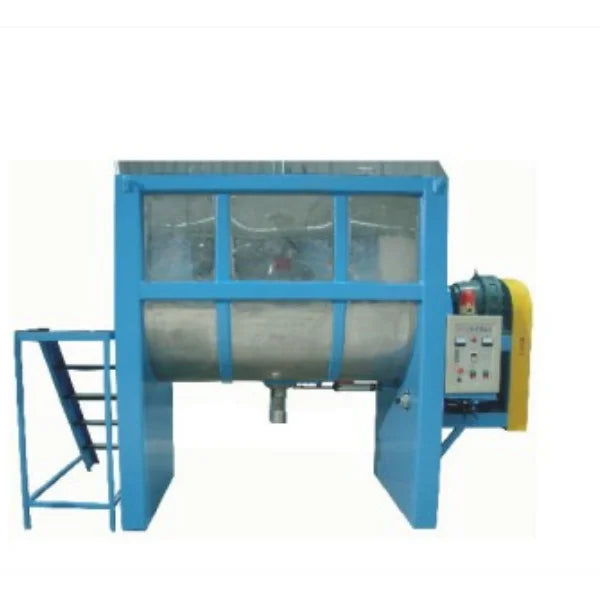

The WIDESKY Big Horizontal Mixer is engineered for high-volume plastic material mixing with precision and efficiency. It features an extra-wide stainless steel tank and ‘S’-shaped blades for thorough, uniform agitation. Available with optional electric heating (up to 40°C–120°C), this mixer is ideal for materials... See More
The WIDESKY Big Horizontal Mixer is engineered for high-volume plastic material mixing with precision and efficiency. It features an extra-wide stainless steel tank and ‘S’-shaped blades for thorough, uniform agitation. Available with optional electric heating (up to 40°C–120°C), this mixer is ideal for materials requiring temperature-controlled processing. With capacities from 500KG to 3000KG, it supports batch production across multiple plastic applications. The horizontal design ensures easy material feeding and discharge through side outlet ports. It includes multiple safety features, full structural steel frame support, and an ergonomic control panel. This mixer is widely used for compounding, color mixing, and masterbatch integration.
Key Features
-
Stainless Steel Tank & S-Blades – Rustproof and efficient for high-speed blending.
-
500KG–3000KG Capacity – Suitable for small to large-scale industrial mixing.
-
Optional Heating System (Up to 120°C) – Allows heated mixing for moisture removal or better blending.
-
Wide Tank Mouth – Simplifies material loading and cleaning.
-
S-Type Mixing Blades – Designed for smooth, complete circulation of material.
-
Independent Control Panel – Timed operation and safety cutoff included.
-
Rack-Mounted with Side Discharge – Ensures safe and convenient material output.
-
Integrated Safety Locks & Shields – Operator protection built into the system.
-
Heavy-Duty Steel Frame – Withstands high-load, continuous operation.
-
Uniform Mixing in Short Time – Built for efficiency in every cycle.
-
Low Vibration & Noise – Maintains working environment comfort.
-
Ideal for Color Masterbatch and Resin – Especially suitable for PP, PE, PVC, and ABS.
Product Models
| Model | Power (kW) | Heating (°C) | Inside Capacity (L) | Mixing Capacity (kg) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| WSH–500 | 5.5 | 12–15 | 1 | 500 | 2300×1100×1900 | 1700 |
| WSH–1000 | 7.5 | 22–25 | 2 | 1000 | 2800×1200×2100 | 1900 |
| WSH–2000 | 11 | 30 | 4 | 2000 | 3450×1500×2500 | 2800 |
| WSH–3000 | 18.5 | 40–50 | 6 | 3000 | 3900×1900×2650 | 3900 |
The WIDESKY Big Horizontal Mixer supports industrial-scale plastic mixing with up to 3000KG capacity, optional heating integration, and stainless ‘S’ blades for consistent results. Ideal for batch processing of masterbatch, resins, and compound materials.
