Air-Cooled Water Chiller with 119652W Capacity, Dual Compressor, and R22/R407/R134 Refrigerant Compatibility
- SKU: WATER CHILLER AIR COOLED
Actual Stock & Price Can Be Confirmed After Placing the Order.

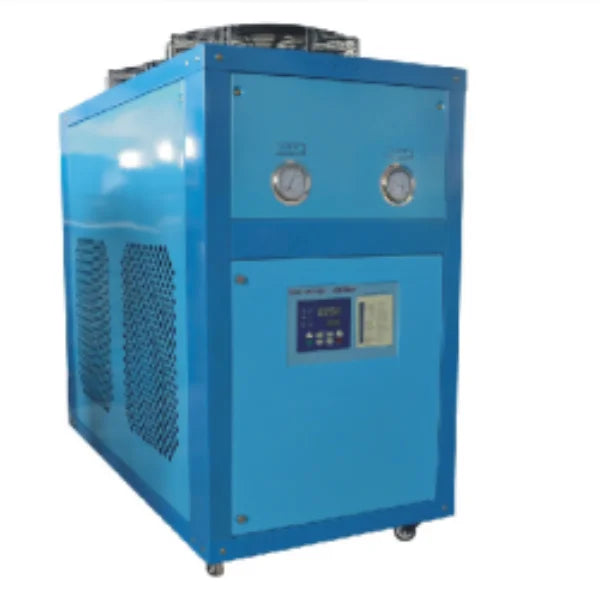

The Water Chiller (Air Cooled) is a compact, high-efficiency refrigeration system designed for plastic, food, electroplating, and industrial processing. Featuring cooling capacities from 8250W to 119652W, it utilizes imported compressors, open-type stainless water tanks, and microcomputer temperature control for precision performance. Safety is ensured... See More
The Water Chiller (Air Cooled) is a compact, high-efficiency refrigeration system designed for plastic, food, electroplating, and industrial processing. Featuring cooling capacities from 8250W to 119652W, it utilizes imported compressors, open-type stainless water tanks, and microcomputer temperature control for precision performance. Safety is ensured through overload, anti-phase, open-phase, and freezing protection, as well as built-in trouble indicators. Each unit supports R22, R407, or R134 refrigerants, offering flexibility across operations. The double-compressor system improves energy efficiency, and the unit’s fan cooling configuration ensures rapid heat dissipation. Perfect for environments where low-noise, fast cooling, and stable flow rates are critical.
Key Features
-
Cooling Capacity from 8250W to 119652W – Supports diverse industrial cooling needs.
-
Imported Compressors & Pumps – Provides durability and consistent output.
-
Fan Cooled Condenser System – Ensures effective and quiet thermal dissipation.
-
R22/R407/R134 Refrigerant Compatible – Flexibility across various global standards.
-
Open-Type Stainless Tank – Easy to maintain and ideal for clean environments.
-
Advanced Microcontroller Touch Panel – Enables precise control and alarm feedback.
-
Dual Compressor System – Reduces power consumption and improves cooling performance.
-
Multi-Layer Safety System – Includes phase protection, overload shutdown, and buzzer alarms.
-
Energy-Saving Design – Built for continuous operation with optimized motor control.
-
Water Tank Capacity up to 800L – Ideal for mid-to-large scale manufacturing plants.
-
Flow Rate from 50–1200 L/min – Customizable flow profiles per unit size.
-
Heavy-Duty Wheels (Optional) – Allows mobile placement and modular expansion.

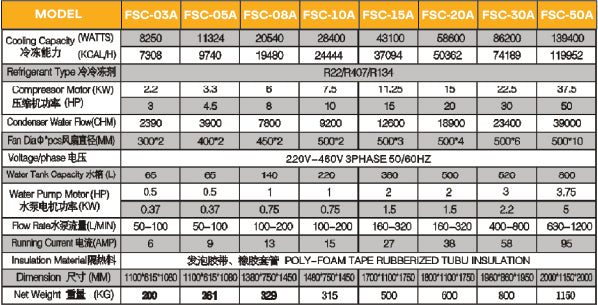

Product Models
| Model | Cooling Capacity (WATTS) | Cooling Capacity (KCAL/H) | Refrigerant Type | Compressor Power (KW) | Compressor Quantity (HP) | Condenser Water Flow (M³/H) | Fan Dia × Pcs | Voltage/Phase | Water Tank Capacity (L) | Water Pump Motor (HP) | Water Pump Power (kW) | Flow Rate (L/MIN) | Running Current (A) | Insulation Material | Dimension (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FSC–03A | 8250 | 7300 | R22/R407/R134 | 2.2 | 3 | 2390 | 300*2 | 220V–460V 3PHASE 50/60HZ | 65 | 0.5 | 0.37 | 50–100 | 6 | POLY–FOAM TAPE / RUBBERIZED TUBE INSULATION | 1100×615×980 | 200 |
| FSC–05A | 11324 | 9740 | R22/R407/R134 | 3.3 | 4.5 | 3630 | 400*2 | 66 | 0.5 | 0.5 | 50–100 | 9 | 1100×615×980 | 261 | ||
| FSC–08A | 20540 | 19480 | R22/R407/R134 | 5.6 | 8 | 7800 | 450*2 | 140 | 0.75 | 0.75 | 100–200 | 15 | 1300×750×1450 | 329 | ||
| FSC–10A | 28400 | 24444 | R22/R407/R134 | 7.5 | 11 | 9200 | 500*2 | 220 | 1 | 1 | 100–200 | 27 | 1450×975×1450 | 315 | ||
| FSC–15A | 43100 | 37904 | R22/R407/R134 | 11.25 | 15 | 12600 | 500*3 | 380 | 2 | 1.5 | 160–320 | 38 | 1700×1100×1500 | 500 | ||
| FSC–20A | 58800 | 50362 | R22/R407/R134 | 15 | 20 | 18900 | 500*4 | 500 | 2 | 1.5 | 400–800 | 58 | 1800×1070×1590 | 600 | ||
| FSC–30A | 86200 | 74189 | R22/R407/R134 | 22 | 30 | 23400 | 500*4 | 520 | 2 | 2.2 | 600–800 | 98 | 1890×980×1590 | 800 | ||
| FSC–50A | 139400 | 119652 | R22/R407/R134 | 30 | 50 | 30600 | 500*10 | 800 | 3.75 | 5 | 630–1200 | 120 | 2000×1150×2000 | 1150 |
The Air-Cooled Water Chiller delivers reliable industrial cooling with up to 119652W capacity, R22/R407/R134 compatibility, and integrated safety systems. Perfect for plastics, electronics, and food industries, it combines performance with easy maintenance.
| Name | Air-Cooled Water Chiller with 119652W Capacity, Dual Compressor, and R22/R407/R134 Refrigerant Compatibility |
| Model | WATER CHILLER AIR COOLED |
