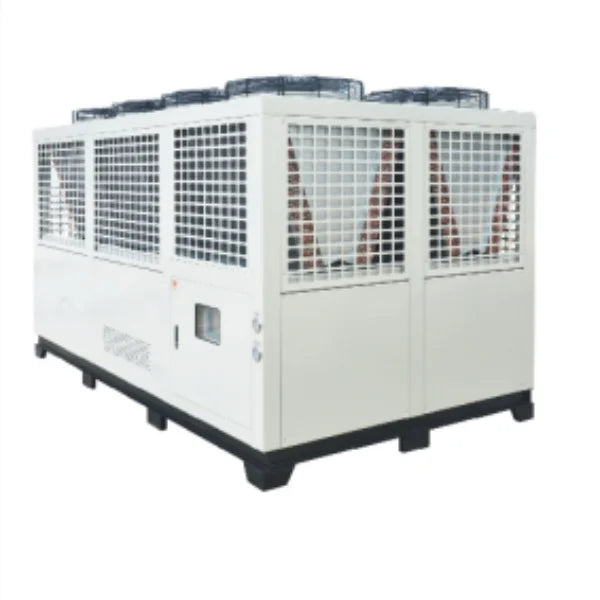

WIDESKY Air-Cooled Screw Chiller with 125.4KW to 598KW Capacity & Dual Compressor System
- SKU: SCREW CHILLER AIR TYPE
Actual Stock & Price Can Be Confirmed After Placing the Order.
The WIDESKY Screw Chiller Air Type is engineered for industrial refrigeration, offering cooling capacities from 125.4KW to 598KW using R22/R134A/R407A refrigerants. Built with Japan Hitachi compressors and Schneider electronics, it includes microcomputer touch control, overload protection, and dual-compressor energy-saving operation. The chiller ensures high... See More
The WIDESKY Screw Chiller Air Type is engineered for industrial refrigeration, offering cooling capacities from 125.4KW to 598KW using R22/R134A/R407A refrigerants. Built with Japan Hitachi compressors and Schneider electronics, it includes microcomputer touch control, overload protection, and dual-compressor energy-saving operation. The chiller ensures high thermal efficiency through a powerful air-cooled condenser system, with axial fans delivering rapid heat exchange. Stainless steel water tanks are open-type, making maintenance and cleaning simple. With cold water temperatures ranging from 3°C to 45°C, it’s ideal for applications in plastics, textiles, chemicals, electroplating, printing, food processing, and more. Each unit comes with well-structured safety controls to ensure long service life and dependable performance.
Key Features
-
Cooling Range from 125.4KW to 598KW – Supports a wide spectrum of industrial applications.
-
Air-Cooled System – Efficient axial fans with 630mm–700mm blade sizes for heat discharge.
-
Dual-Compressor Design – Optimized energy consumption with two-stage operation.
-
Open-Type Stainless Water Tank – Easy to clean, install, and maintain.
-
Refrigerant Compatibility – R22, R407A, R134A, based on client requirement.
-
Advanced Safety Systems – Overload, phase loss, and freezing protection included.
-
Microcontroller Touch Panel – Enables accurate temperature settings and alarm controls.
-
Compact Yet Powerful Build – Optimized footprint-to-power ratio for industrial sites.
-
Noise Level Maintained at 74 dB – Quiet despite large-scale cooling output.
-
Imported Brand Components – Uses Hitachi compressors and Schneider electronics.
-
Cooling Water Temp Range: 3°C–45°C – Flexible performance for process control.
-
Ideal for multiple industries - Such as plastic, electroplating, food, electronics, printing, and more.

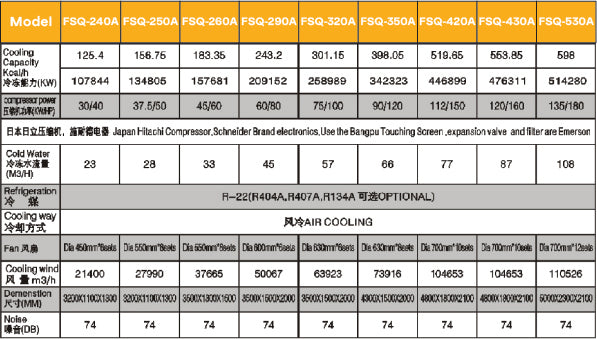

Product Models
| Model | Cooling Capacity (kcal/h) | Compressor Power (kW/HP) | Cold Water Flow Rate (m³/h) | Refrigerant | Cooling Way | Fan Power (W) | Cooling Wind Volume (m³/h) | Dimensions (mm) | Noise (dB) |
|---|---|---|---|---|---|---|---|---|---|
| FSQ–240A | 125.4 | 30/40 | 23 | R–22 (R404A/R407A/R134A Optional) | Air Cooling | 630mm×5 sets | 21400 | 2200×1300×1800 | 74 |
| FSQ–250A | 156.75 | 37.5/50 | 28 | R–22 (Optional) | Air Cooling | 630mm×6 sets | 27990 | 2600×1300×1800 | 74 |
| FSQ–260A | 183.35 | 45/60 | 33 | R–22 (Optional) | Air Cooling | 630mm×6 sets | 37665 | 3000×1300×1800 | 74 |
| FSQ–290A | 243.2 | 60/80 | 44 | R–22 (Optional) | Air Cooling | 630mm×7 sets | 50067 | 3500×1500×2000 | 74 |
| FSQ–320A | 301.5 | 75/100 | 57 | R–22 (Optional) | Air Cooling | 630mm×8 sets | 63923 | 3700×1500×2000 | 74 |
| FSQ–350A | 398.05 | 90/120 | 66 | R–22 (Optional) | Air Cooling | 700mm×9 sets | 73916 | 4200×1800×2100 | 74 |
| FSQ–420A | 519.65 | 112/150 | 77 | R–22 (Optional) | Air Cooling | 700mm×10 sets | 104653 | 4800×1800×2100 | 74 |
| FSQ–430A | 553.85 | 120/160 | 87 | R–22 (Optional) | Air Cooling | 700mm×10 sets | 104653 | 4800×1800×2100 | 74 |
| FSQ–530A | 598 | 135/180 | 108 | R–22 (Optional) | Air Cooling | 700mm×12 sets | 110526 | 5000×1800×2100 | 74 |
The WIDESKY Screw Chiller (Air Type) delivers powerful cooling up to 598KW, featuring dual compressors, air cooling, and touchscreen control. Ideal for industrial environments, it offers stable, efficient refrigeration across multiple sectors.
