800 Single Shaft Shredder with 1000mm Feed Size, 45KW Motor & 800KG/H Output
- SKU: 800 Single Shaft Shredder
Actual Stock & Price Can Be Confirmed After Placing the Order.
The 800 Single Shaft Shredder is a high-performance machine designed for medium to heavy-duty shredding of plastic, rubber, wood, and mixed industrial waste. Engineered with 30–60 rotary blades, depending on the model, it offers powerful and consistent material breakdown. With a main shaft speed... See More
The 800 Single Shaft Shredder is a high-performance machine designed for medium to heavy-duty shredding of plastic, rubber, wood, and mixed industrial waste. Engineered with 30–60 rotary blades, depending on the model, it offers powerful and consistent material breakdown. With a main shaft speed of 80 RPM, it operates efficiently and safely while maintaining high torque. Available in multiple configurations, it supports feeding sizes up to 1000×1360mm and outputs up to 800KG/H. Its heavy-duty steel frame ensures long-term durability and vibration resistance. The shredder includes a safety-driven gear reducer system, optimized for long blade life and smooth operation. This solution is ideal for in-house recycling, production line rejects, and waste recovery plants.
Key Features
-
Single Shaft Configuration – Ensures smooth and stable material intake.
-
Rotary Blade Count Up to 60 – Designed for deep shredding and extended use.
-
80 RPM Main Shaft Speed – Maintains torque while minimizing heat generation.
-
Output up to 800KG/H – Supports high-volume processing needs.
-
Feeding Sizes up to 1000×1360mm – Handles wide and bulky input material.
-
Modular Design for Easy Maintenance – Blade replacement and cleaning are straightforward.
-
Heavy-Duty Frame Build – Provides stability and durability in tough work environments.
-
Integrated Gear Reducer Drive – Increases blade torque and improves energy efficiency.
-
Ideal for Mixed Waste – Works with plastics, rubber, wood, and other industrial scraps.
-
Compact Floor Layout – Maximizes performance in limited production spaces.
-
Low Vibration Operation – Ensures smoother, safer shredding cycles.
-
Three Model Options – Scalable for small, medium, and large production lines.

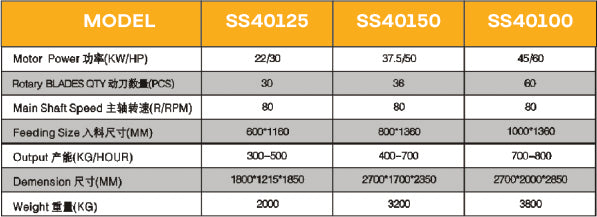

Product Models
| Model | Motor Power (kW/HP) | Rotary Blades (pcs) | Main Shaft Speed (R/RPM) | Feeding Size (mm) | Output (kg/hour) | Dimension (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SS40125 | 22/30 | 30 | 80 | 600×1160 | 300–500 | 1800×1215×1850 | 2000 |
| SS40150 | 37.5/50 | 36 | 80 | 800×1360 | 400–700 | 2700×1700×2350 | 3200 |
| SS40100 | 45/60 | 60 | 80 | 1000×1360 | 700–800 | 2700×2000×2850 | 3800 |
The 800 Single Shaft Shredder delivers quiet, powerful shredding for industrial plastics and waste with up to 800KG/H output. Its gear-driven rotor, large feed opening, and up to 60 rotary blades make it a reliable choice for continuous recycling operations.
| Name | 800 Single Shaft Shredder with 1000mm Feed Size, 45KW Motor & 800KG/H Output |
| Model | 800 Single Shaft Shredder |
