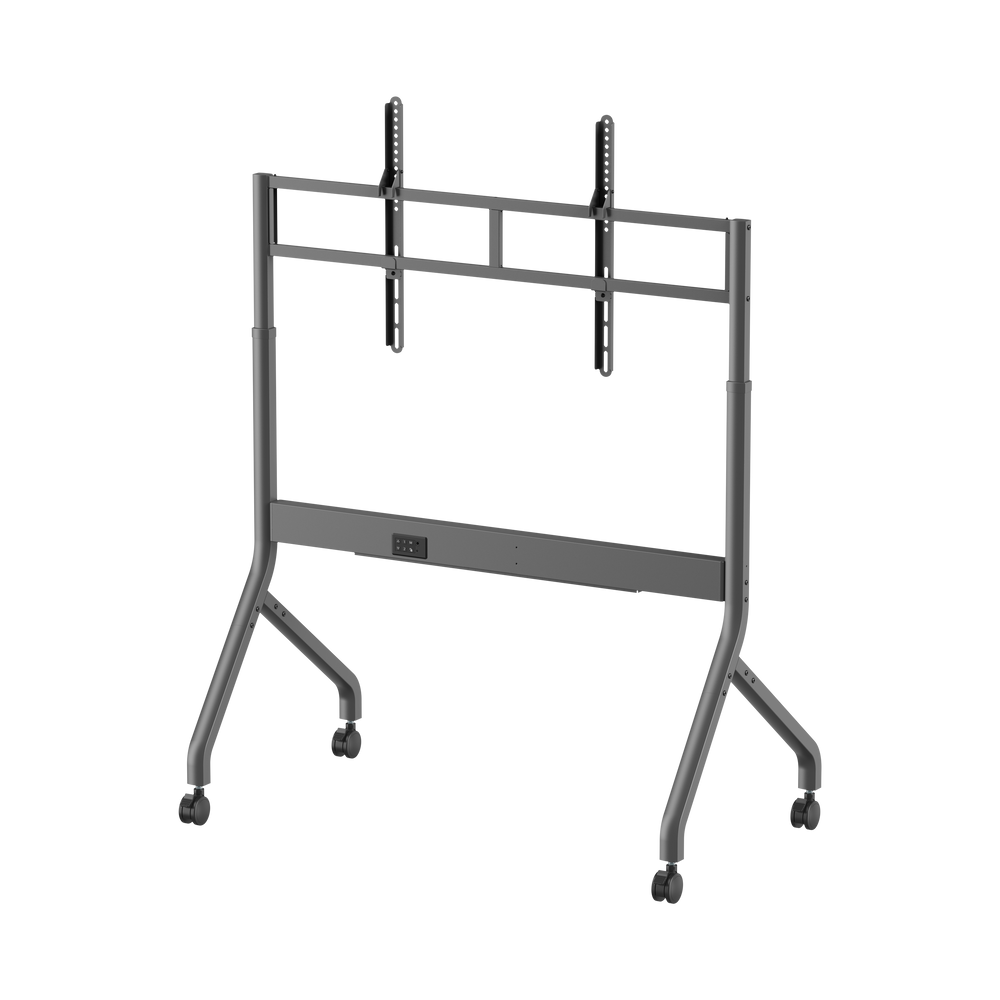

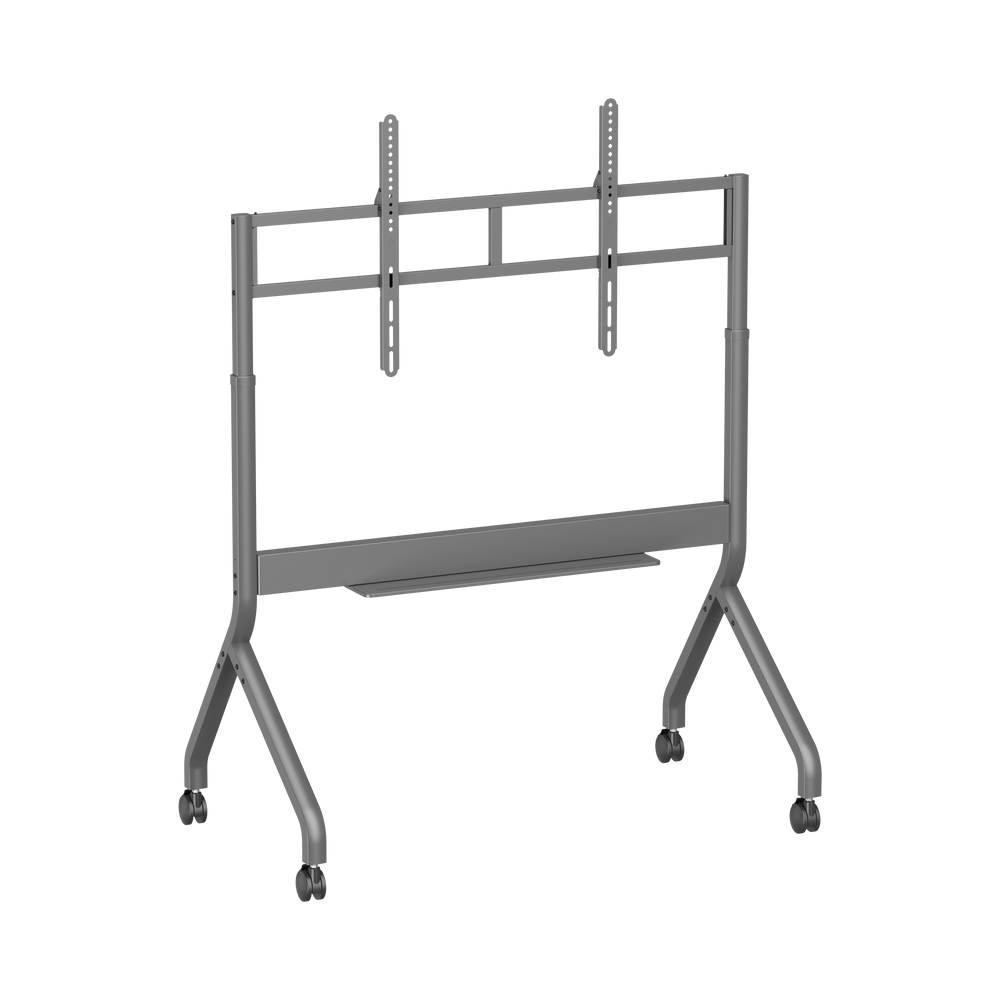

VSYS VTLX16M-612FW Motorised Height-Adjustable TV Cart for 60"–110" Displays, 120 kg
- Model: VTLX16M-612FW
- SKU: VTLX16M-612FW
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VTLX16M-612FW is a motorised height-adjustable TV cart for 60"–110" displays weighing up to 120 kg, available in the UAE from Procure.ae. Manual carts stop being practical once the panel is large. Releasing a spring lock while steadying a 100 inch display is... See More
The VSYS VTLX16M-612FW is a motorised height-adjustable TV cart for 60"–110" displays weighing up to 120 kg, available in the UAE from Procure.ae.
Manual carts stop being practical once the panel is large. Releasing a spring lock while steadying a 100 inch display is a two-person job, and in a room used by several presenters a day it simply does not get done. This model moves the load with a powered column instead, so the screen height is reset in seconds by whoever is running the session. It suits boardrooms shared between seated and standing meetings, and multipurpose halls where the audience layout changes.

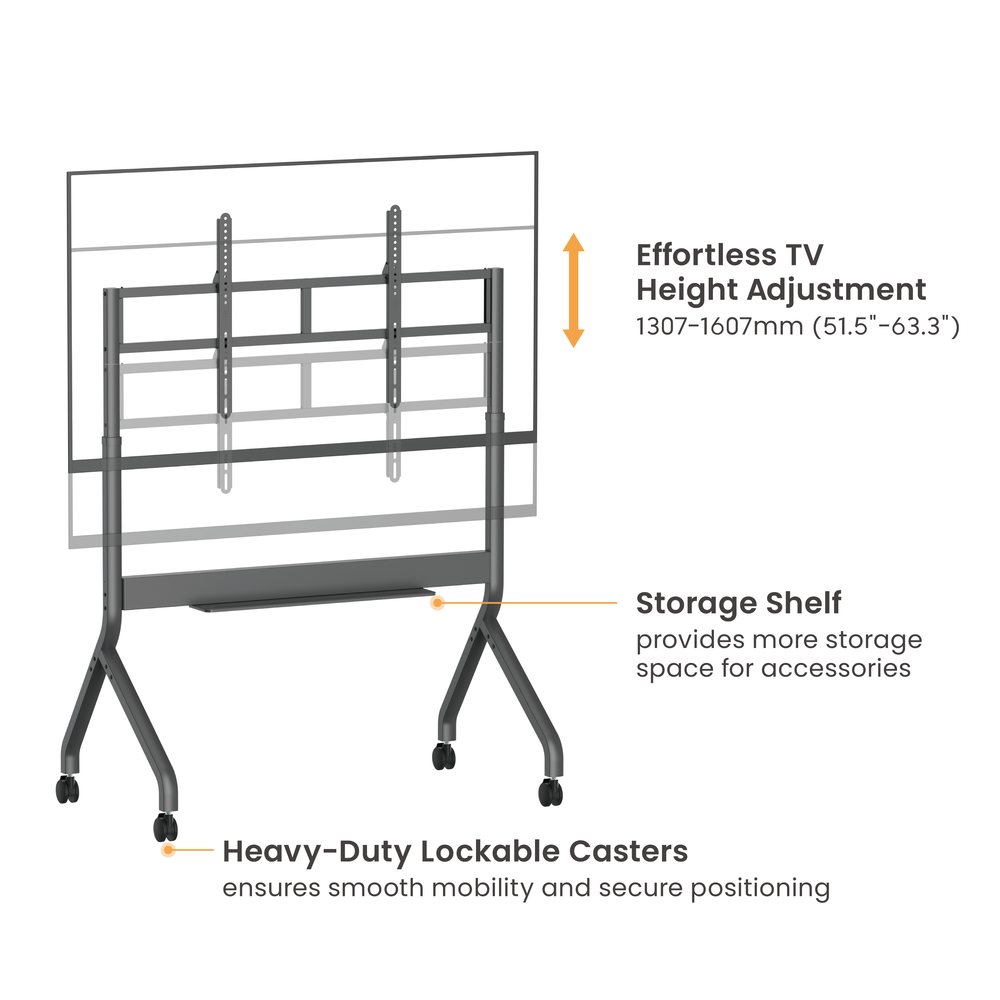

An RF remote drives the motor and moves the display through a height range of 1307 mm to 1607 mm, giving roughly 300 mm of powered travel with no need to touch the column. Mounting is by VESA pattern from 100x100 mm up to 1200x600 mm, which is wide enough for both small commercial panels and 110 inch large-format displays. A fixed support shelf rated to 3 kg carries a media player or codec, and the cart rolls on heavy-duty locking casters. Fixed tilt and no rotation keep the mechanism focused on vertical movement.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Powered column driven by an RF remote, so the display height is changed without physical effort or a second person.
- Height range of 1307 mm to 1607 mm covers seated boardroom sightlines through to standing presentation height.
- Rated to 120 kg, which accommodates 98 and 110 inch commercial panels rather than only consumer televisions.
- VESA support from 100x100 mm to 1200x600 mm, one of the widest mounting ranges available on a mobile cart.
- Fixed support shelf rated to 3 kg holds a media player, codec or control device.
- Heavy-duty locking casters allow the cart to be repositioned and then held still during use.
- Steel construction with a gunmetal grey powder-coat finish suited to corporate interiors.
- Carries CE, FCC, ErP and AS to NZS marks, with 10 degree slope testing on the assembled cart.
- No wall drilling required, so the cart can be deployed in leased or heritage premises and relocated later.
- Professional assembly is recommended given the mass of the panel and the powered mechanism.
Technical Specifications
| Model | VTLX16M-612FW |
| Type | Motorised height-adjustable mobile TV cart |
| Screen Size Range | 60 to 110 inch |
| Weight Capacity | 120 kg display, 3 kg support shelf |
| VESA Compatibility | 100x100 mm to 1200x600 mm |
| Height Range | 1307 mm to 1607 mm |
| Height Adjustment | Motorised column operated by RF remote control |
| Movement | Powered vertical adjustment only, no tilt or rotation |
| Material | Steel and engineering plastic |
| Finish | Gunmetal grey powder coat |
| Mobility | Heavy-duty locking casters |
| Shelf | Fixed support shelf, 3 kg |
| Certifications | CE, FCC, ErP, AS to NZS, 10 degree slope tested |
Ideal for: executive boardrooms and video-conference suites, corporate training and demonstration rooms, university lecture and seminar spaces, hotel conference and function rooms, showrooms and experience centres, and government briefing and command rooms across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VTLX16M-612FW Motorised Height-Adjustable TV Cart for 60"–110" Displays, 120 kg |
| Height Adjustment Type | Motorised column with RF remote control |
| Mounting Type | Floor standing mobile cart, no wall fixing |
| Screen Size Support | 60 to 110 inch |
| Product Type | Motorised height-adjustable mobile TV cart |
| Screen Size Range | 60 to 110 inch |
| Load Capacity | 120 kg display, 3 kg support shelf |
| VESA Compatibility | 100x100 mm to 1200x600 mm |
| Movement | Powered vertical height adjustment only, no tilt or rotation |
| Height Range | 1307 mm to 1607 mm |
| Material and Finish | Steel and engineering plastic |
| Available Finishes | Gunmetal grey powder coat |
| Mounting Interface | VESA 100x100 mm to 1200x600 mm |
| Shelves | Fixed support shelf rated to 3 kg |
| Mobility | Heavy-duty locking casters |
| Testing and Certification | CE, FCC, ErP, AS to NZS, 10 degree slope tested |
| In the Box | Motorised steel column, display bracket, RF remote control, fixed support shelf, caster base, mounting hardware, assembly guide |
| MPN | VTLX16M-612FW |
| Model | VTLX16M-612FW |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VTLX16M-612FW in the UAE?
Procure.ae supplies the VSYS VTLX16M-612FW across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How much does the motorised column actually move?
The powered column moves the display between 1307 mm and 1607 mm, so around 300 mm of travel. That is enough to shift the screen centre from a seated boardroom sightline to a comfortable standing presentation height.
How is the height controlled?
An RF remote drives the motor, so the cart is adjusted from anywhere in the room without reaching behind or under the display. RF rather than infrared means the remote does not need line of sight to the column.
Does this cart tilt or rotate the screen?
No. This model is built purely for powered vertical adjustment. If the room needs screen tilt or landscape to portrait rotation, ask Procure.ae for the manual telescopic and rotating models in the same range.
What size and weight of display will it carry?
Displays from 60 to 110 inch weighing up to 120 kg, with VESA patterns from 100x100 mm to 1200x600 mm. Confirm the panel's weight and bolt pattern on its specification sheet before ordering, as large-format displays differ considerably at the same diagonal.
Should it be professionally assembled?
It is strongly recommended. The combination of a powered column and a display of this mass means the base, column and bracket must be correctly torqued and balanced. Procure.ae can quote supply with installation.
