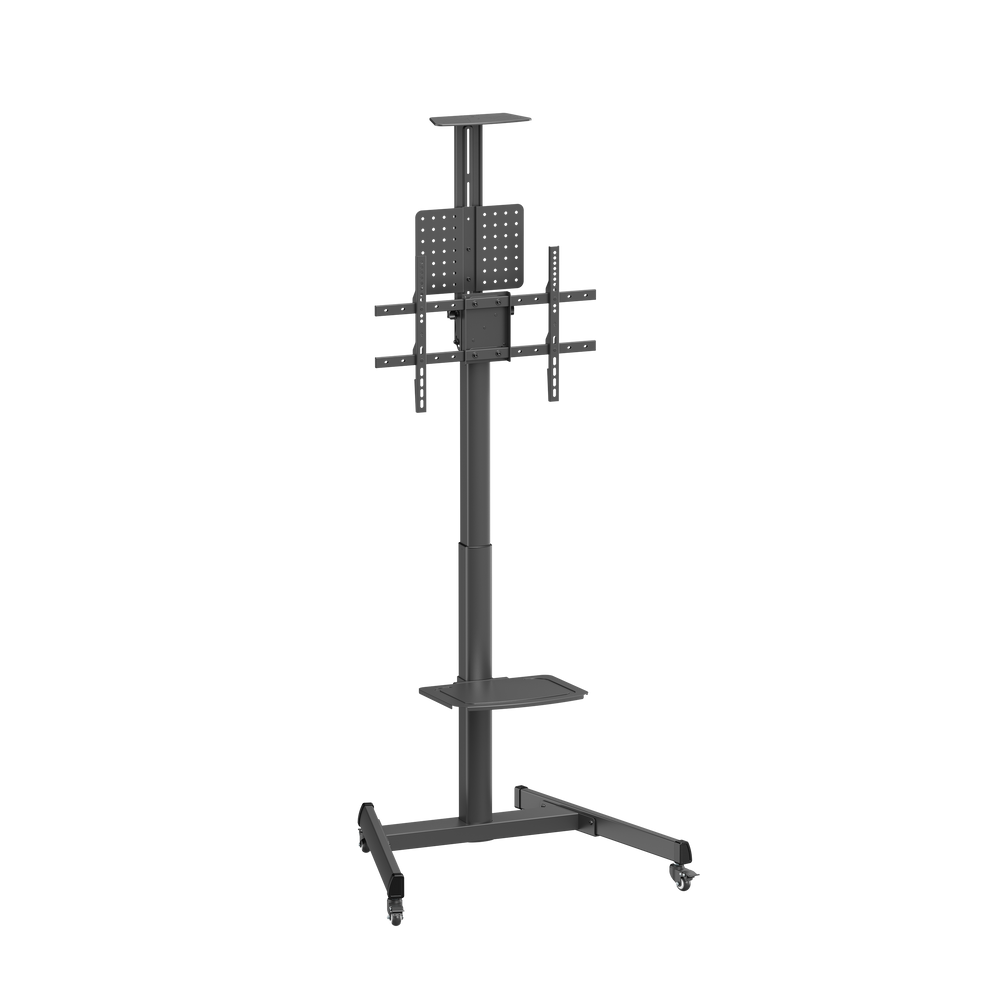

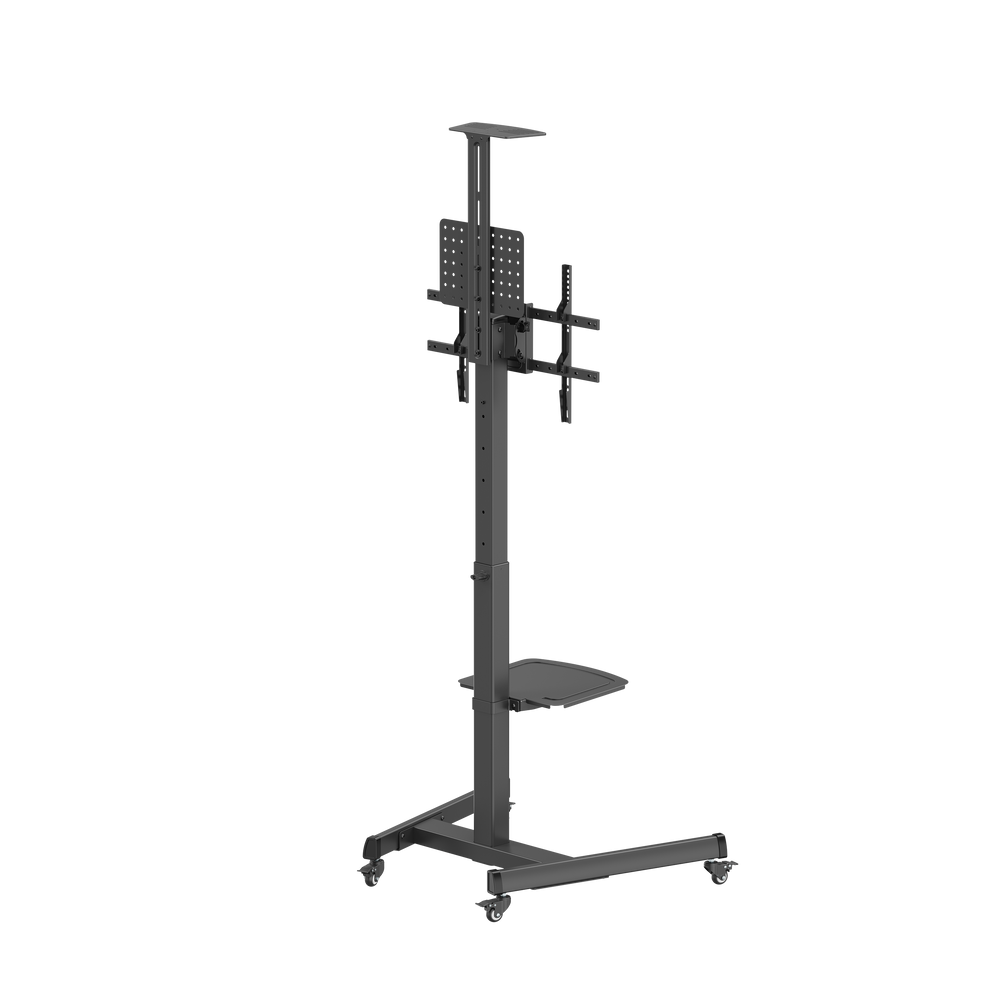

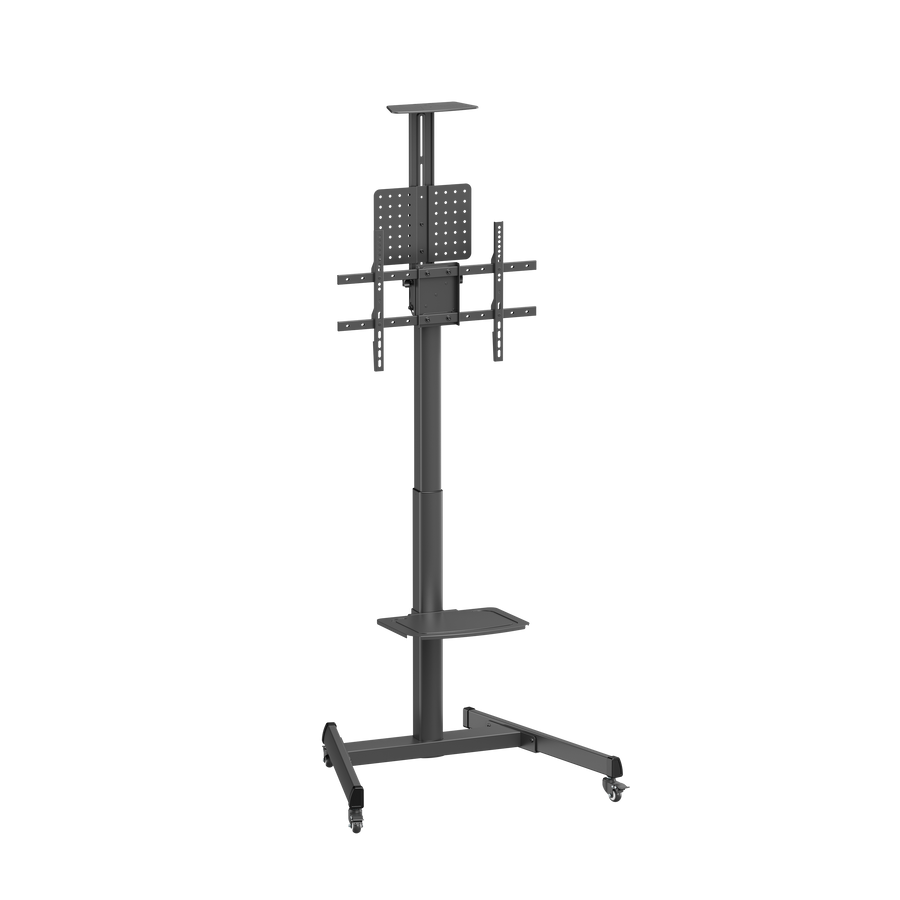

VSYS VTLS17-46TW Quick-Release TV Cart with Pegboard for 37"–70" Displays, 70 kg
- Model: VTLS17-46TW
- SKU: VTLS17-46TW
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VTLS17-46TW is a quick-release height-adjustable TV cart with a pegboard storage panel for 37"–70" displays up to 70 kg, available in the UAE from Procure.ae.Shared carts fail in two predictable ways. The height is wrong for whoever is using the room next,... See More
The VSYS VTLS17-46TW is a quick-release height-adjustable TV cart with a pegboard storage panel for 37"–70" displays up to 70 kg, available in the UAE from Procure.ae.
Shared carts fail in two predictable ways. The height is wrong for whoever is using the room next, and the accessories that came with it are gone within a month. The VTLS17-46TW addresses both. A spring-loaded quick-release collar drops or raises the column through a 450mm range in seconds with no tools, so a primary classroom and an adult training session can use the same unit hours apart. A pegboard panel gives clickers, dongles, adapters and coiled leads a fixed home on the cart itself.

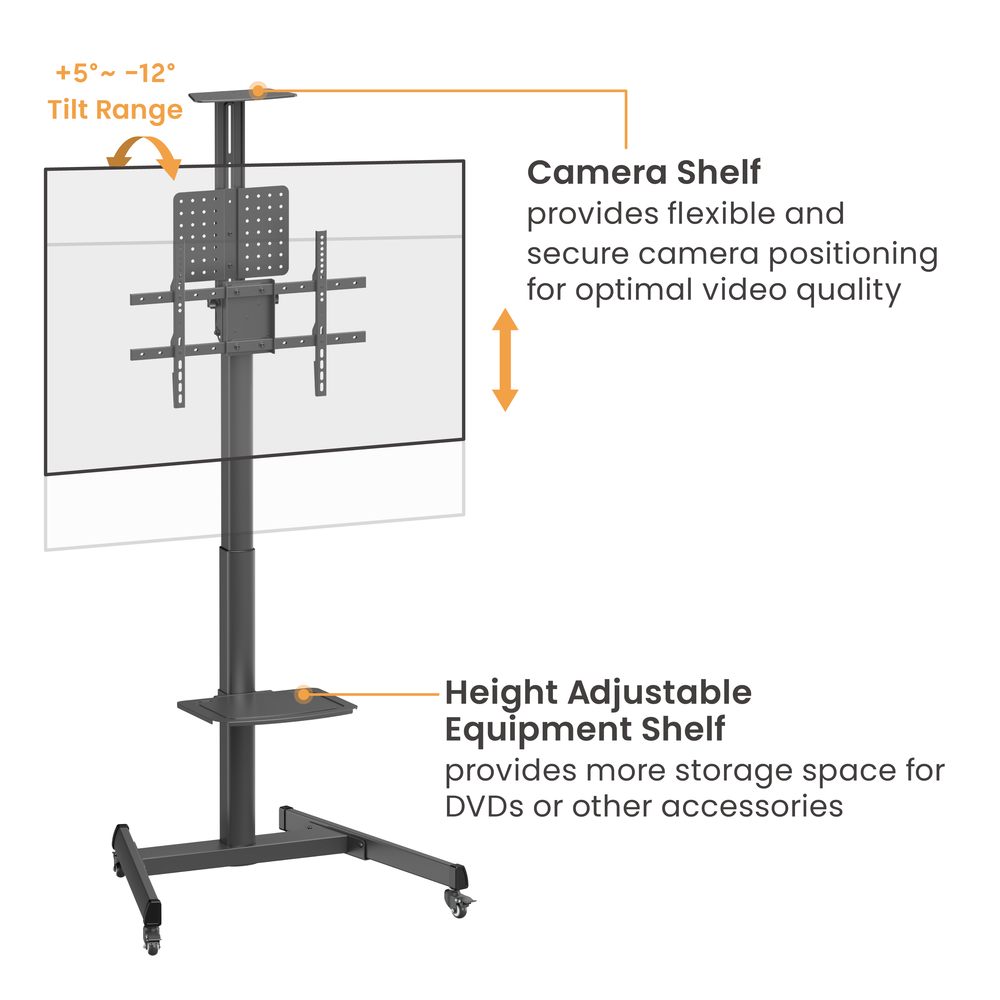

The bracket carries up to 70 kg on VESA patterns from 200x200mm to 600x400mm, tilts between plus 5 and minus 12 degrees, and rotates through 0 to 90 degrees for portrait signage. Two height-adjustable shelves are supplied, each rated to 5 kg, one for source equipment and one for a conferencing camera above the screen. The steel frame wears a matte black powder coat, and 2-inch heavy-duty casters lock the cart in place once positioned.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Quick-release spring lock changes column height across a 450mm range in seconds, with no tools and no second person.
- Pegboard storage panel keeps remotes, adapters, dongles and coiled cables attached to the cart instead of disappearing between rooms.
- 70 kg display rating gives headroom over lighter economy carts in the same 37" to 70" size class.

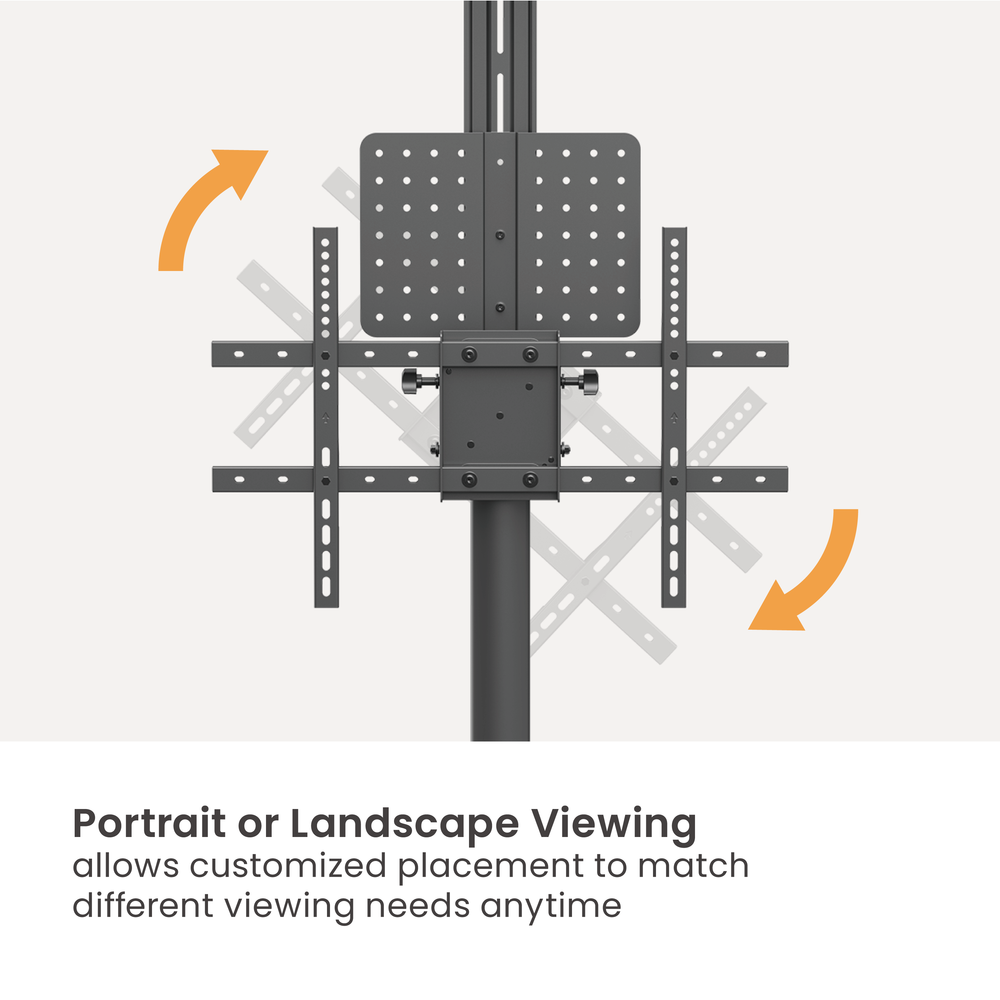

- Rotation through 0 to 90 degrees lets the same cart serve landscape meetings and portrait digital signage.
- Tilt from plus 5 to minus 12 degrees, with more downward travel than most carts, useful when the screen sits above seated viewers.
- Two height-adjustable shelves rated to 5 kg each: one for a media player or codec, one positioned for a conferencing camera.
- VESA support from 200x200mm to 600x400mm covers mainstream commercial panels in this size band.

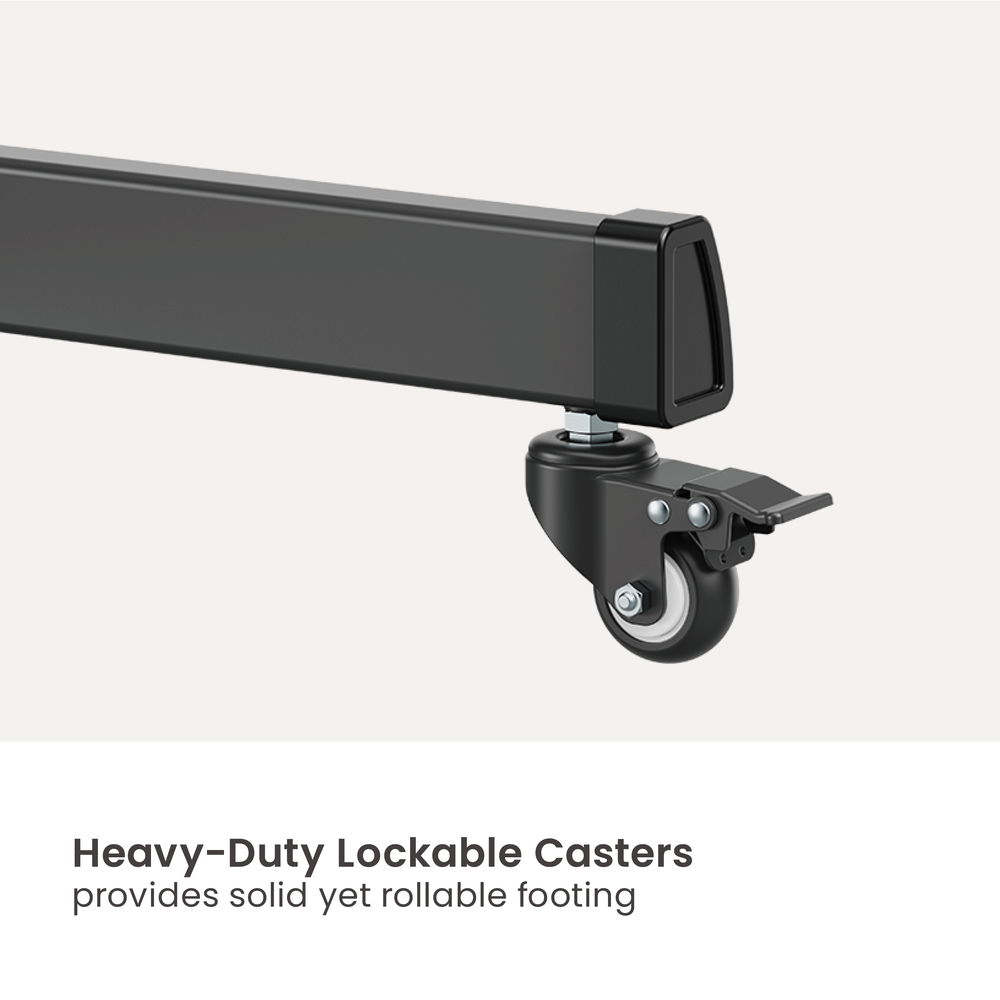

- 2-inch heavy-duty casters with locks roll on carpet and hard floors and hold firm during use.
- Steel construction finished in matte black powder coat, which hides scuffs in daily-use environments.
- Free-standing design with no wall or floor fixing, and a 10 degree slope stability test at rated load.
Technical Specifications
| Model | VTLS17-46TW |
| Type | Mobile TV cart and floor stand with pegboard storage |
| Screen size range | 37 to 70 inches |
| Weight capacity | 70 kg display, 5 kg per shelf |
| VESA compatibility | 200x200mm to 600x400mm |
| Movement | Tilt and 0 to 90 degree rotation |
| Tilt | Plus 5 to minus 12 degrees |
| Rotation | 0 to 90 degrees, portrait or landscape |
| Height adjustment | 450mm range, quick-release spring lock |
| Shelves | Height-adjustable equipment shelf and camera shelf, 5 kg each |
| Storage | Pegboard accessory and cable panel |
| Mobility | Heavy-duty 2 inch locking casters |
| Material | Steel and plastic |
| Finish | Matte black powder coating |
| Testing | 10 degree slope tested |
| Package contents | Steel column, TV bracket, pegboard storage panel, height-adjustable equipment and camera shelves, caster base, mounting hardware, assembly guide |
Ideal for: schools and universities where one cart serves several year groups, corporate training suites, AV and IT support teams running demo kit, hospital and clinic education rooms, makerspaces and technical labs, and hotel meeting floors across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VTLS17-46TW Quick-Release TV Cart with Pegboard for 37"–70" Displays, 70 kg |
| Height Adjustment Type | Toolless quick-release spring lock, 450mm range |
| Mounting Type | Free-standing mobile cart, no wall fixing required |
| Screen Size Support | 37 to 70 inch flat and curved displays |
| Product Type | Mobile TV cart and floor stand with pegboard storage |
| Screen Size Range | 37 to 70 inches |
| Load Capacity | 70 kg display, 5 kg per shelf |
| VESA Compatibility | 200x200mm to 600x400mm |
| Movement | Tilt and 0 to 90 degree rotation |
| Tilt | Plus 5 to minus 12 degrees |
| Swivel | None |
| Rotation | 0 to 90 degrees, portrait or landscape |
| Height Range | 450mm adjustment range |
| Material and Finish | Steel and plastic |
| Available Finishes | Matte black powder coating |
| Mounting Interface | VESA 200x200mm to 600x400mm |
| Cable Management | Pegboard panel for cables and accessories plus column cable management |
| Shelves | Height-adjustable equipment shelf and camera shelf, 5 kg each |
| Mobility | Heavy-duty 2 inch locking casters |
| Testing and Certification | 10 degree slope tested |
| In the Box | Steel column, TV bracket, pegboard storage panel, height-adjustable equipment and camera shelves, caster base, mounting hardware, assembly guide |
| MPN | VTLS17-46TW |
| Model | VTLS17-46TW |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VTLS17-46TW in the UAE?
Procure.ae supplies the VSYS VTLS17-46TW across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How does the height adjustment work?
A spring-loaded quick-release lock holds the telescopic column. Release it, slide the carriage to the height you want within the 450mm range, and let the lock re-engage. No tools and no partial disassembly are involved.
What is the pegboard panel used for?
It provides a fixed mounting surface on the cart for hooks, cable loops, remotes, adapters and small accessories, so the kit that belongs to the display travels with it rather than getting lost between rooms.
How does this compare with the VTLS17H-46TW?
The two share the same 37" to 70" frame. This model uses a quick-release spring lock, which is faster for frequent height changes. The VTLS17H-46TW uses a crank handle, which trades speed for finer, more controlled positioning under load.
Can the display be used in portrait for signage?
Yes. The bracket rotates through 0 to 90 degrees, so the cart can run landscape presentations in a training room and portrait content in a foyer or reception area.
