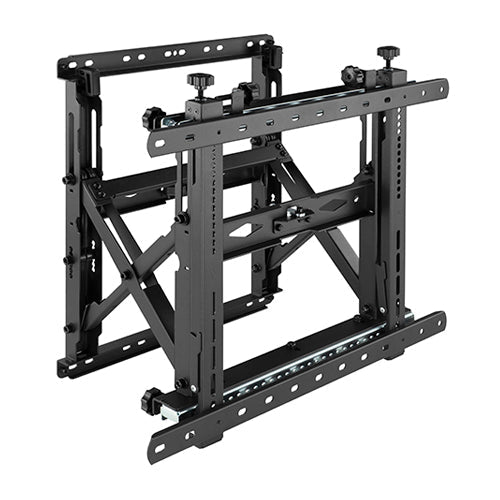

VSYS VSVW13-610T Push-Pull Video Wall Mount for Displays Up to 120", 130 kg
- Model: VSVW13-610T
- SKU: VSVW13-610T
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VSVW13-610T is a push-pull video wall mount for large-format panels up to 120" and 130 kg, available in the UAE from Procure.ae. Tiled display arrays create a servicing problem that single-screen installations do not have. Once panels sit shoulder to shoulder there... See More
The VSYS VSVW13-610T is a push-pull video wall mount for large-format panels up to 120" and 130 kg, available in the UAE from Procure.ae.

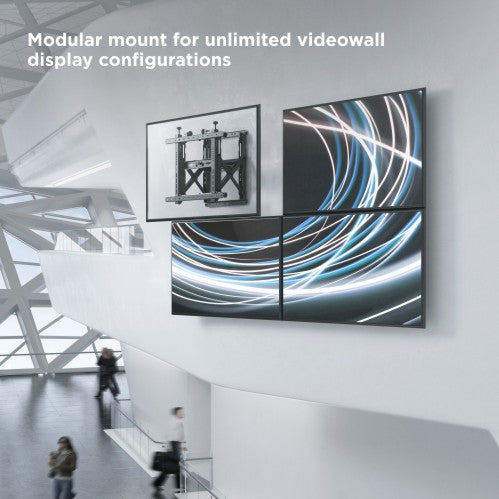

Tiled display arrays create a servicing problem that single-screen installations do not have. Once panels sit shoulder to shoulder there is no side gap to reach through, no room to lift a screen off its bracket, and no way to reach a failed power supply or a loose signal lead without disturbing the neighbouring tiles. This mount is designed around that constraint, letting an individual panel come forward out of the array on its own so the rest of the wall stays undisturbed and aligned.

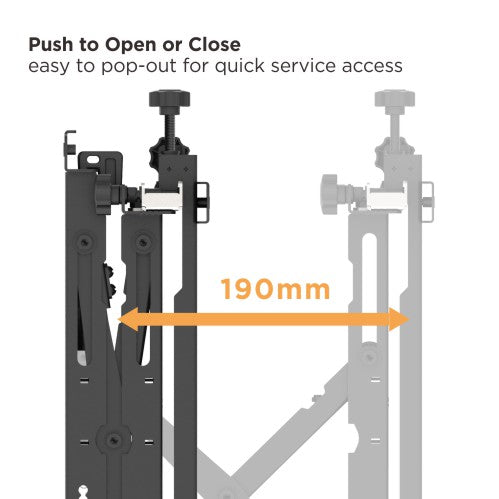

The mechanism is push-pull: pressing or pulling the face of the display releases it and pops it out from the wall for rear access, and pushing it back re-engages the lock and returns the panel to its slim retracted position. No tools and no second pair of hands are required. Micro-adjustment lets depth and height be trimmed after installation so adjacent tiles sit flush and level, panels can be fitted in portrait or landscape, and VESA patterns up to 1000 x 600 mm are supported for screens weighing up to 130 kg. An anti-theft locking design secures each panel in public-facing positions.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Push-pull pop-out action releases a single panel from the array for rear service access, then locks it flat again.
- Rated for displays up to 120" and 130 kg, covering the large-format panels used in feature video walls and standalone signage.
- VESA support up to 1000 x 600 mm, matching the wide mounting grids on large commercial screens.
- Portrait and landscape mounting, so the same mount serves both signage columns and conventional video wall grids.
- Micro-adjustment on depth and height allows tiles to be aligned after installation, which is what keeps seams even across an array.
- Retracted profile stays slim, so the finished wall reads as a single flat surface rather than a shelf of brackets.

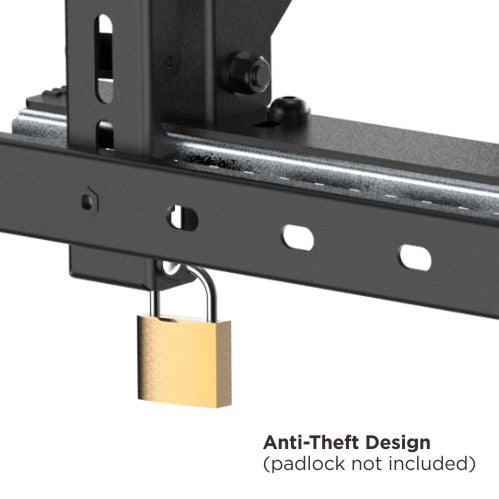

- Anti-theft locking design suits unattended retail, transit and lobby installations.
- Supplied with a wall plate and heavy-duty hardware for fixing to a solid wall or a stud array.
Technical Specifications
| Model | VSVW13-610T |
| Mount type | Push-pull video wall mount |
| Screen size range | Up to 120 inches |
| Weight capacity | Up to 130 kg |
| VESA range | Up to 1000 x 600 mm |
| Movement | Push-pull pop-out extension for rear access |
| Orientation | Portrait or landscape |
| Alignment | Micro-adjustment of depth and height after installation |
| Security | Anti-theft locking design |
| Wall interface | Solid wall or stud array, wall plate and heavy-duty hardware supplied |
Ideal for: retail flagship and mall video walls, airport and metro passenger information displays, corporate lobby and reception feature screens, broadcast and control-room overview walls, exhibition and museum installations, and hotel event-space signage across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VSVW13-610T Push-Pull Video Wall Mount for Displays Up to 120", 130 kg |
| Height Adjustment Type | Micro-adjustment of depth and height after installation |
| Mounting Type | Wall mount |
| Screen Size Support | Up to 120 inches |
| Wall Mount Type | Push-pull video wall |
| Product Type | Push-pull video wall mount |
| Screen Size Range | Up to 120 inches |
| Load Capacity | Up to 130 kg |
| VESA Compatibility | Up to 1000 x 600 mm |
| Movement | Push-pull pop-out extension for rear access |
| Rotation | Portrait or landscape orientation |
| Mounting Interface | Solid wall or stud array using the supplied wall plate and heavy-duty hardware |
| Cable Management | Pop-out extension gives full rear cable access |
| In the Box | Mount assembly, wall plate and heavy-duty mounting hardware |
| MPN | VSVW13-610T |
| Model | VSVW13-610T |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VSVW13-610T in the UAE?
Procure.ae supplies the VSYS VSVW13-610T across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How does the push-pull mechanism work?
Pressing or pulling on the display releases the catch and the panel pops out from the wall, giving access to the connections behind it. Pushing the screen back re-engages the lock and returns it to the retracted position. No tools are involved.
What size and weight of display does it take?
Panels up to 120" and up to 130 kg, with VESA mounting patterns up to 1000 x 600 mm. Confirm the panel's weight and hole pattern from its specification sheet before ordering.
Can panels be mounted in portrait for a signage column?
Yes. The mount supports both portrait and landscape orientation, so a single specification can cover mixed-orientation signage and video wall layouts in the same project.
How are the tiles kept aligned across a video wall?
Micro-adjustment allows depth and height to be corrected after the panels are hung, which is how even seams are achieved across an array once the wall itself is out of true.
Should this be professionally installed?
For panels of this size and weight, yes. The wall plate must be fixed to a solid wall or a properly surveyed stud array, and array layouts should be set out before any fixings are drilled.
