VSYS VS03P-610T Pull-Out Tilt and Swivel TV Wall Mount for 55"–105" Displays, 80 kg
- Model: VS03P-610T
- SKU: VS03P-610T
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VS03P-610T is a pull-out tilt and swivel wall mount for 55"–105" displays weighing up to 80 kg, with 172 mm of extension, available in the UAE from Procure.ae. A flat-mounted panel becomes a problem the first time somebody has to change a... See More
The VSYS VS03P-610T is a pull-out tilt and swivel wall mount for 55"–105" displays weighing up to 80 kg, with 172 mm of extension, available in the UAE from Procure.ae.
A flat-mounted panel becomes a problem the first time somebody has to change a source device, reseat an HDMI lead or replace a media player. On a 75" or 98" screen that usually means two people and a partial de-installation. The VS03P-610T removes that job from the maintenance schedule: the whole display slides forward on a parallel arm so an engineer can reach behind it, work on the terminations, and push it back flat against the wall afterwards.

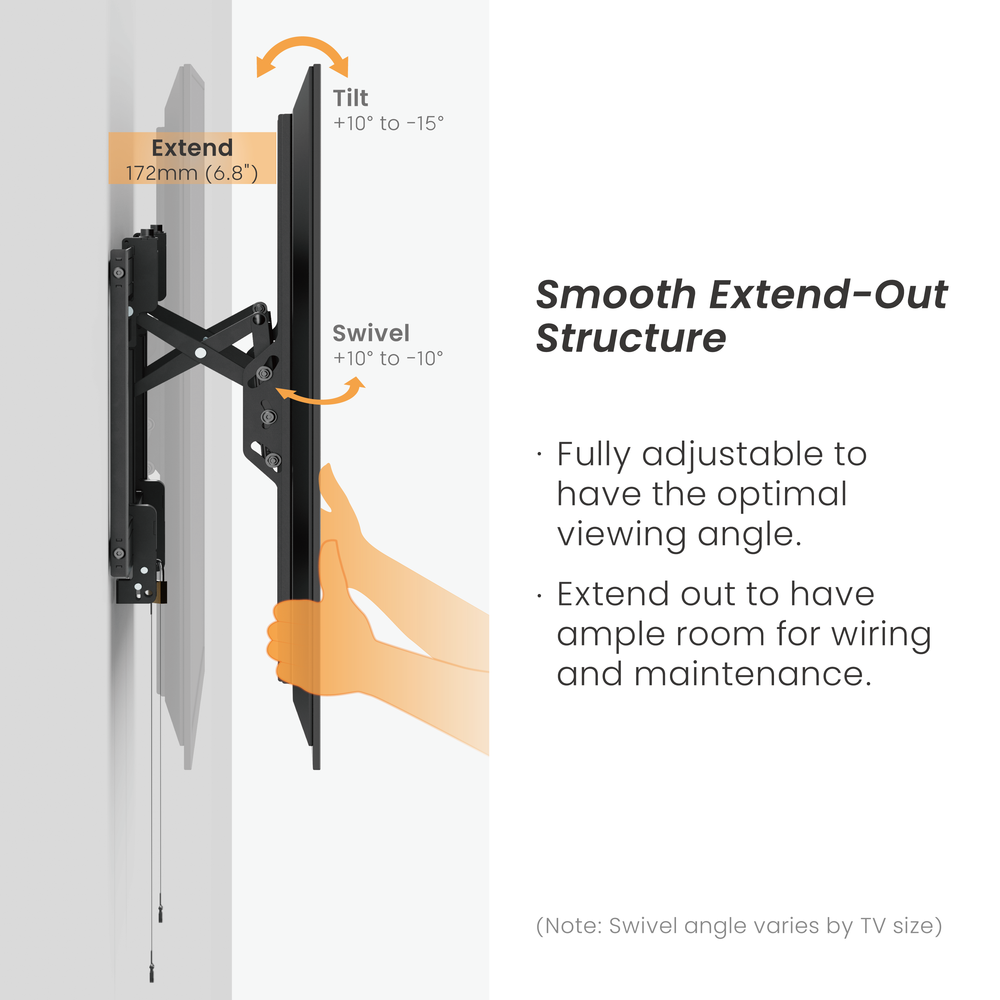

Extension is 172 mm, which is enough clearance for a hand and a connector on the rear of a large panel. Once the screen is back against the wall the mount still articulates, with tilt from plus 10 to minus 15 degrees and swivel of 10 degrees each way for above-fireplace and off-axis positions. The bracket also slides laterally along its wall plate after installation, so the screen can be centred on the room rather than on the studs, and a micro-adjustment levelling stage squares the panel once it is loaded. The frame is 2 mm cold-rolled steel and the mount is UL certified for up to 80 kg.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- 172 mm of pull-out travel gives full hand access to connectors and power behind the screen without removing the panel.
- Rated to 80 kg and sized for 55" to 105" displays, covering large commercial and premium residential panels.

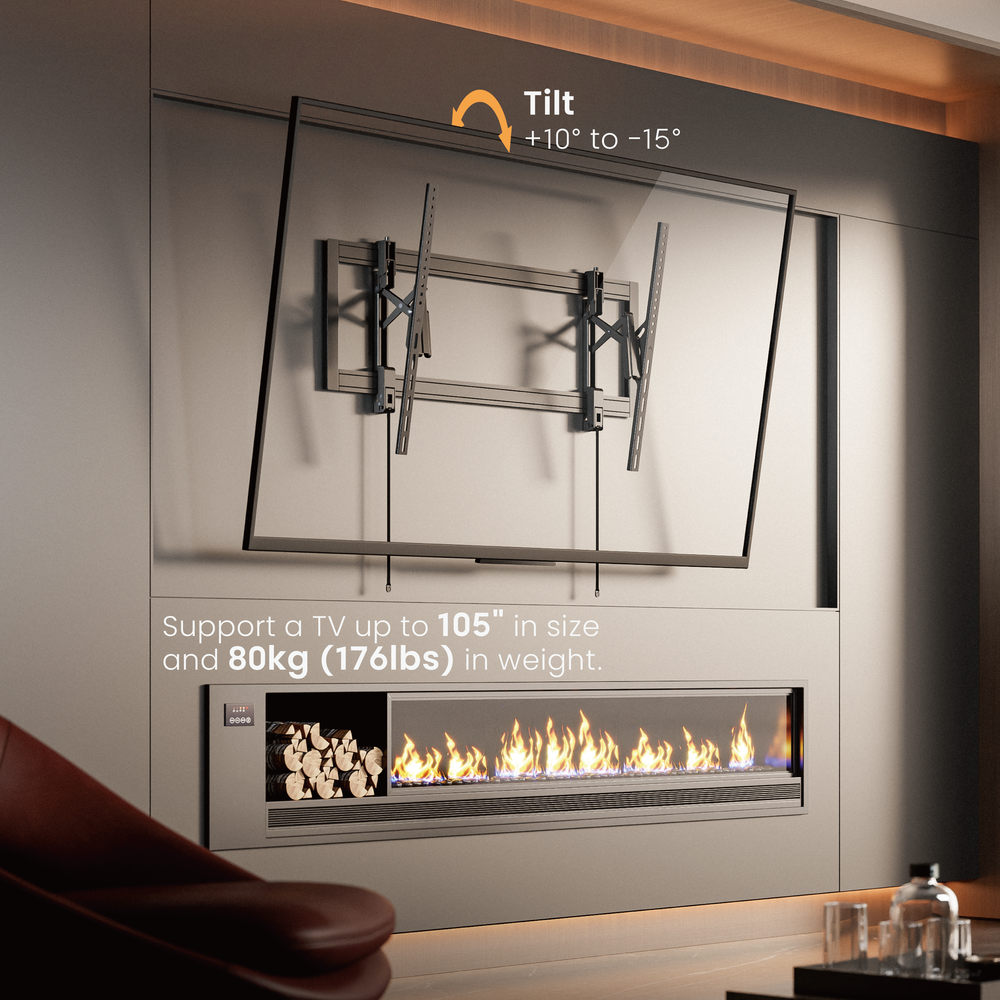

- Tilt from plus 10 to minus 15 degrees corrects the sightline for screens hung above a fireplace or cabinet run.
- Swivel of 10 degrees left and right lets the display be aimed at the main seating or standing position.
- Lateral sliding adjustment on the wall plate means the screen can be centred on the wall, not on the stud spacing.

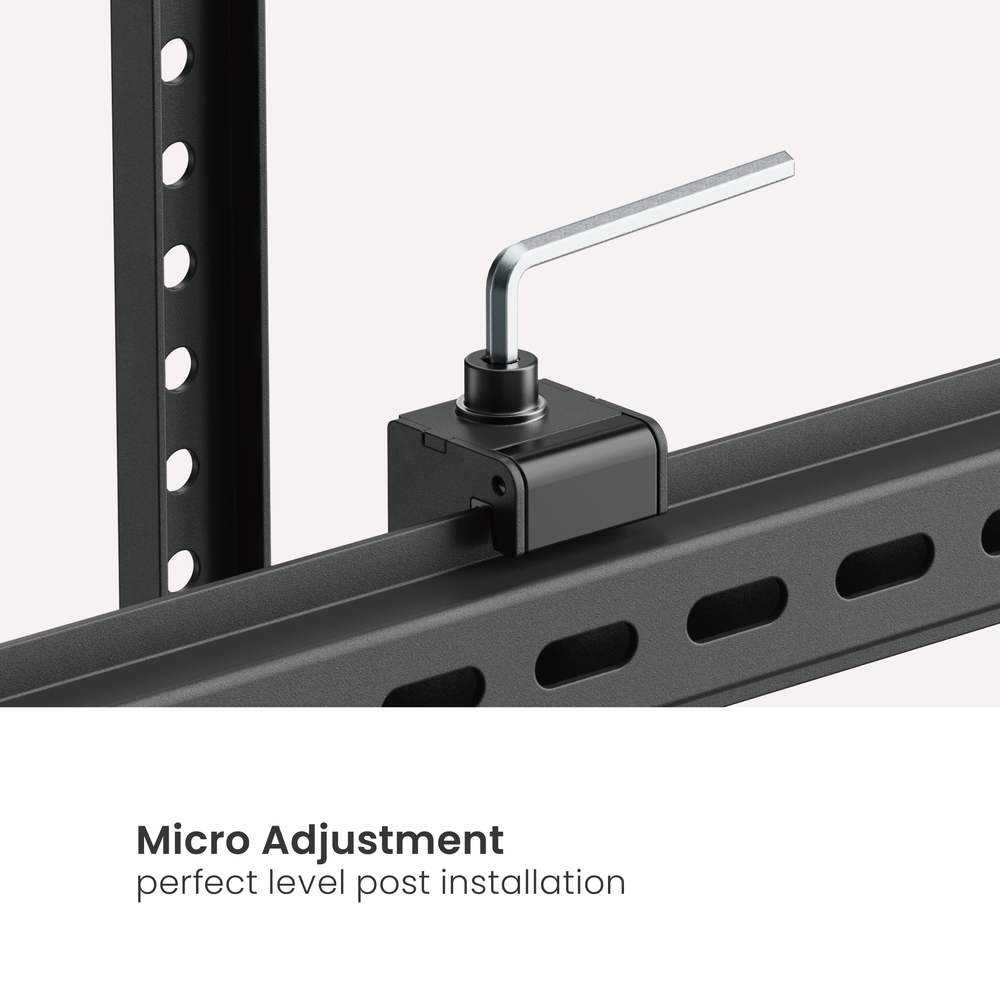

- Micro-adjustment levelling brings the panel true after it has been hung and loaded.

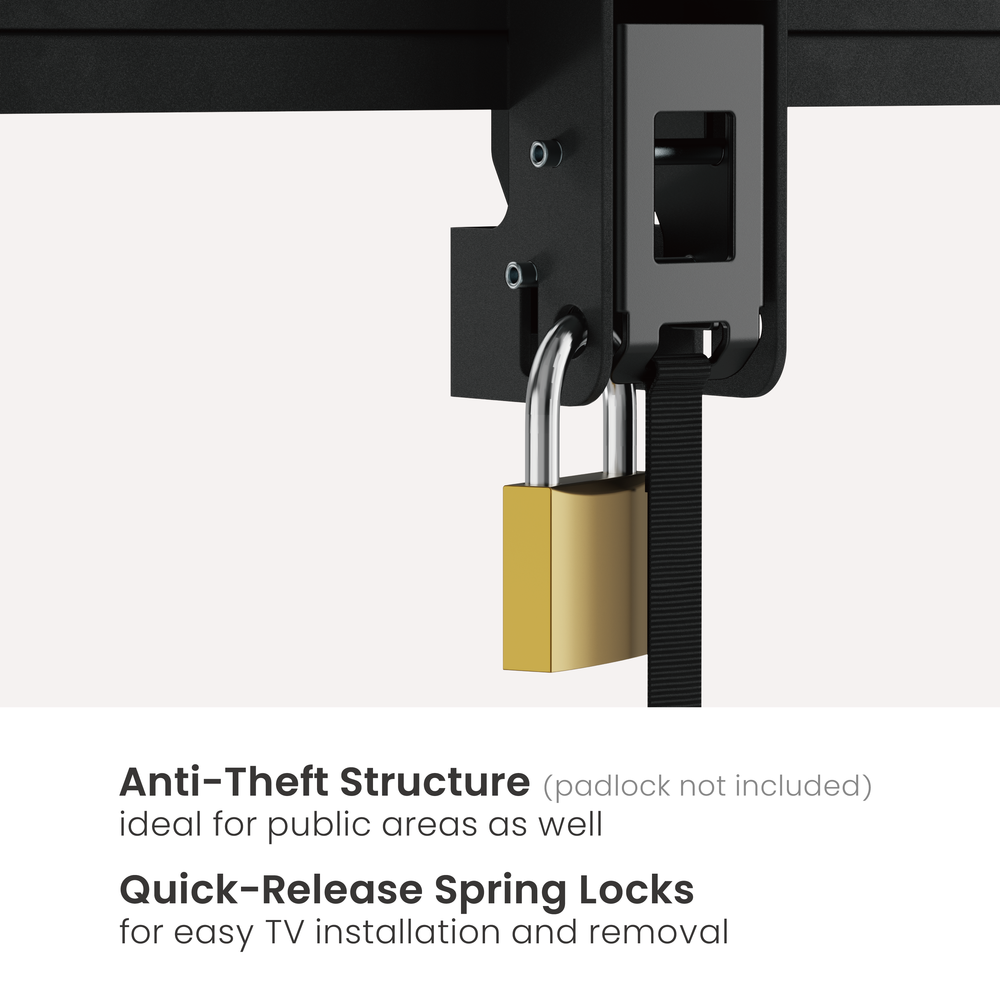

- Anti-theft locking structure secures the display in lobbies, showrooms and other public-facing rooms.
- Quick-release spring locks keep installation and later removal a straightforward, tool-light operation.
- VESA support up to 1000 x 600 mm, with a maximum mounting hole spread of 1000 x 602 mm for the widest panels in this class.
- 2 mm cold-rolled steel construction, UL certified, with fixing patterns for solid walls and dual studs at 406 mm, 450 mm or 600 mm.
Technical Specifications
| Model | VS03P-610T |
| Mount type | Pull-out tilt and swivel wall mount |
| Screen size range | 55 to 105 inches |
| Weight capacity | Up to 80 kg |
| Extension | Up to 172 mm from the wall |
| Tilt | Plus 10 to minus 15 degrees |
| Swivel | Plus 10 to minus 10 degrees |
| Lateral adjustment | Sliding left and right on the wall plate after installation |
| Levelling | Micro-adjustment |
| VESA range | Up to 1000 x 600 mm, maximum hole 1000 x 602 mm |
| Material | 2 mm cold-rolled steel |
| Security | Anti-theft locking structure with quick-release spring locks |
| Stud spacing | 406 mm, 450 mm and 600 mm |
| Certification | UL certified |
Ideal for: boardrooms and meeting suites, hotel lobbies and reception areas, retail and automotive showrooms, above-fireplace and above-cabinet residential installations, media walls in villas and serviced apartments, and any room where the rear of the display must stay reachable across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VS03P-610T Pull-Out Tilt and Swivel TV Wall Mount for 55"–105" Displays, 80 kg |
| Mounting Type | Wall mount |
| Screen Size Support | 55 to 105 inches |
| Wall Mount Type | Pull-out tilt and swivel |
| Product Type | Pull-out tilt and swivel wall mount |
| Screen Size Range | 55 to 105 inches |
| Load Capacity | Up to 80 kg |
| VESA Compatibility | Up to 1000 x 600 mm, maximum mounting hole 1000 x 602 mm |
| Movement | Pull-out extension with tilt, swivel and lateral slide |
| Tilt | Plus 10 to minus 15 degrees |
| Swivel | Plus 10 to minus 10 degrees |
| Extension Range | Up to 172 mm from the wall |
| Material and Finish | 2 mm cold-rolled steel |
| Mounting Interface | Solid wall or dual studs at 406 mm, 450 mm and 600 mm spacing |
| Cable Management | Extends 172 mm from the wall for rear cable and connector access |
| Testing and Certification | UL certified |
| MPN | VS03P-610T |
| Model | VS03P-610T |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VS03P-610T in the UAE?
Procure.ae supplies the VSYS VS03P-610T across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How far does the VS03P-610T pull away from the wall?
Up to 172 mm. That is enough working room to reach the rear panel of a large display, change a cable or swap a media player, after which the screen pushes back against the wall.
What are the tilt and swivel ranges?
Tilt runs from plus 10 to minus 15 degrees and swivel from plus 10 to minus 10 degrees. The wider downward tilt is intended for screens mounted above a fireplace or joinery run.
Can the screen be centred if the studs are in the wrong place?
Yes. The bracket slides laterally along the wall plate after the plate is fixed, so the display can be positioned on the wall centre line independently of where the studs fall. A micro-adjustment stage then levels the panel.
What VESA patterns and screen weights does it accept?
VESA patterns up to 1000 x 600 mm, with a maximum hole spread of 1000 x 602 mm, and panel weights up to 80 kg across the 55" to 105" range.
Is it secure enough for a public area?
The mount includes an anti-theft locking structure alongside its quick-release spring locks, which is why it is commonly specified for lobbies, showrooms and other unattended commercial spaces.
