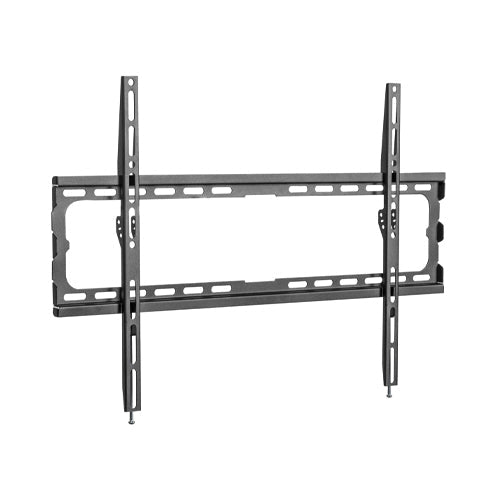

VSYS VS01E-46F low-profile fixed TV wall mount front viewVSYS
SKU VS01E-46F

VSYS VS01E-46F Low-Profile Fixed TV Wall Mount for 37"–86" Displays, 45 kg

The VSYS VS01E-46F is a 20 mm low-profile fixed wall mount for 37"–86" displays weighing up to 45 kg, available in the UAE from Procure.ae.

Large panels installed in guest rooms, classrooms and retail spaces rarely need to move once they have been commissioned. What they need is a bracket that holds them level, holds them securely and holds them close to the wall for the life of the fit-out. The VS01E-46F does exactly that, with a two-piece fixed design rated to 45 kg and a 37"–86" span that covers most commercial screen specifications, so one part number can serve a mixed fleet of sizes.

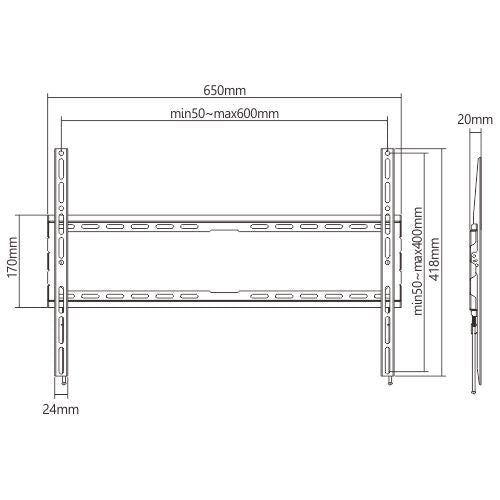

A rail-style wall plate carries the load and is drilled for solid walls or for two timber studs at 406 mm, 450 mm or 600 mm centres. Vertical brackets bolt to the panel's VESA points anywhere from 200 x 200 mm to 600 x 400 mm, then hook onto the rail. Depth from wall face to panel back is 20 mm. The open frame leaves the rear of the screen clear for connectors, power and convection airflow, and the supplied security screws lock the panel to the rail once it is seated.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Low Profile Fixed Wall Mount

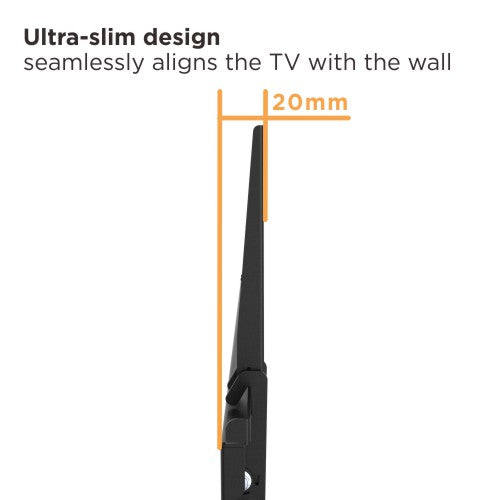

  • 20 mm wall-to-panel depth, so an 86" screen still reads as flush against the wall rather than shelved off it.
  • Rated for displays from 37" to 86" weighing up to 45 kg, which covers the large-format panels used in most commercial rooms.
  • VESA coverage from 200 x 200 mm to 600 x 400 mm removes the need to stock several bracket sizes for one project.
Price
On request · best price
1
WhatsApp Call
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
20 mm wall-to-panel depth, so an 86" screen still reads as flush against the wall rather than shelved off it.
02
Rated for displays from 37" to 86" weighing up to 45 kg, which covers the large-format panels used in most commercial rooms.
03
VESA coverage from 200 x 200 mm to 600 x 400 mm removes the need to stock several bracket sizes for one project.
04
1.4 mm cold-rolled steel construction gives the arms enough section to resist flex under a heavy panel.
05
Fine-texture black powder-coated finish resists scuffing during installation and disappears behind the screen.
06
Wall plate is drilled for solid walls and for dual studs at 406 mm, 450 mm or 600 mm, matching common partition framing.
07

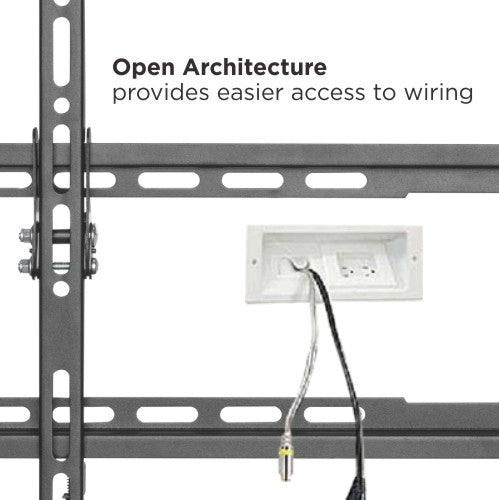

Open-frame back panel leaves room for HDMI, power and network terminations without forcing the screen off the wall.
08

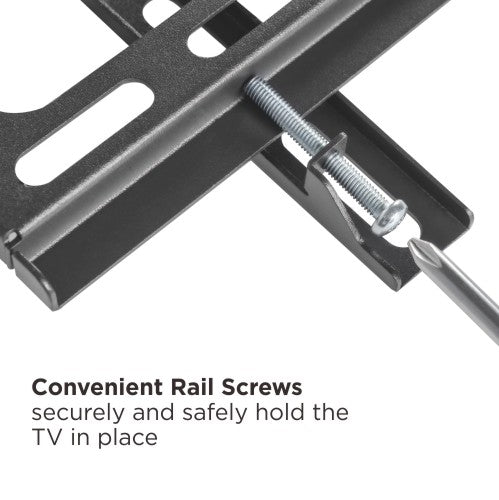

Security screws are supplied so the display can be locked to the bracket in public or unattended rooms.
09
Compact flat carton lowers freight and storage cost when mounts are ordered by the pallet for multi-room fit-outs.

Specifications

13 specifications
General
Key FeaturesOpen frame rear access for cabling and ventilation
ModelVS01E-46F
TypeLow Profile Fixed Wall Mount
What's in the BoxWall plate, Display brackets, Fixing hardware and security screws
Display
Supported Screen Sizes37-86"
Physical
AdjustabilityFixed
Extension20 mm
FinishFine-texture black powder-coated
Load Capacity45 kg
Material1.4 mm cold-rolled steel
MountingFixed low profile
VESA Mount200 x 200 to 600 x 400 mm
Wall FixingSolid wall or dual studs at 406/450/600 mm spacing

Questions

Can’t find your answer? Ask on WhatsApp

What screen size and weight does the VS01E-46F support?
It is rated for displays from 37" to 86" with a total panel weight of up to 45 kg. Check the weight on the display's data plate rather than the box, since stands and packaging are often included in shipping figures.
Will it fit my display's mounting holes?
The brackets cover VESA hole patterns from 200 x 200 mm up to 600 x 400 mm. Any panel whose four mounting points fall inside that window will fit, which includes the large majority of 37" to 86" commercial and consumer screens.
Can it be fitted to a stud partition rather than a solid wall?
Yes. The wall plate is drilled to span two studs at 406 mm, 450 mm or 600 mm centres, and it can equally be through-fixed to a solid wall with suitable anchors. Both fixing routes must carry the combined weight of the mount and the display.
Does the VS01E-46F tilt or swivel?
No. It is a fixed mount, which is why it sits only 20 mm off the wall. If you need downward tilt for a high mounting position or a reflective room, choose a tilting model instead.
