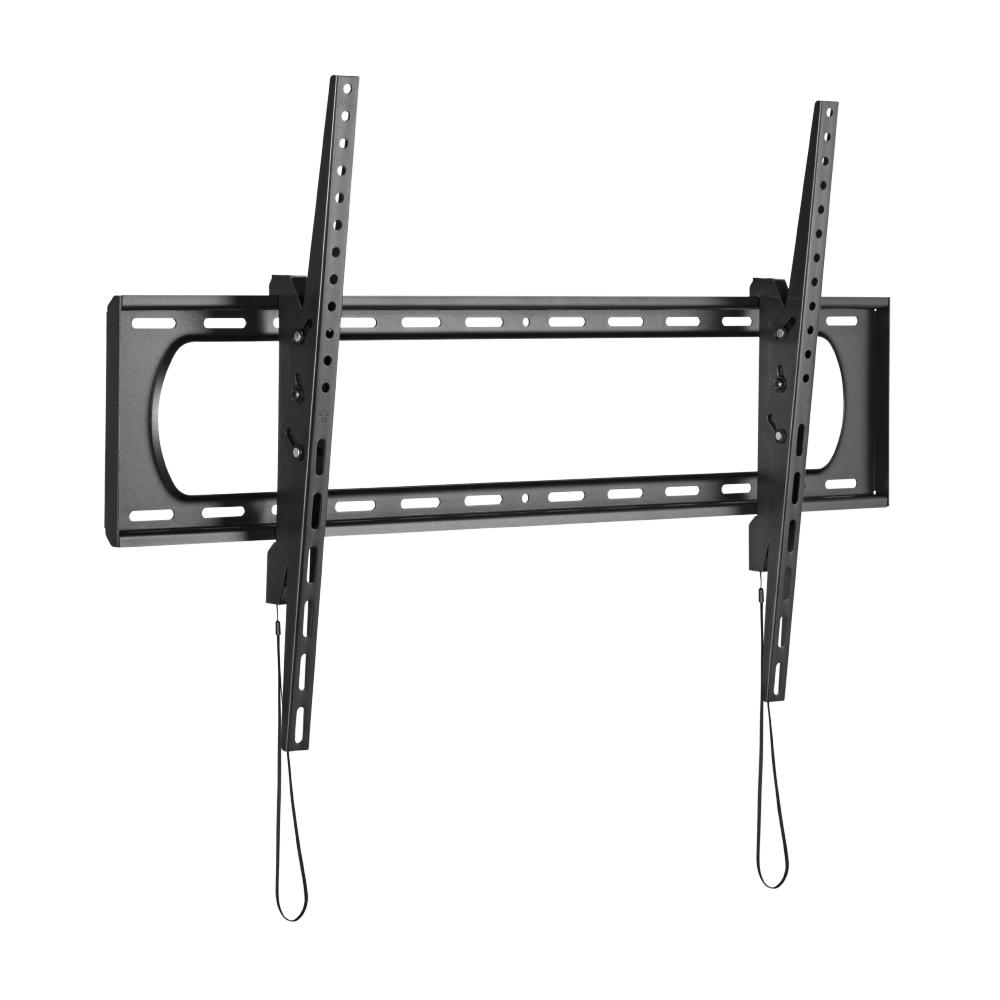

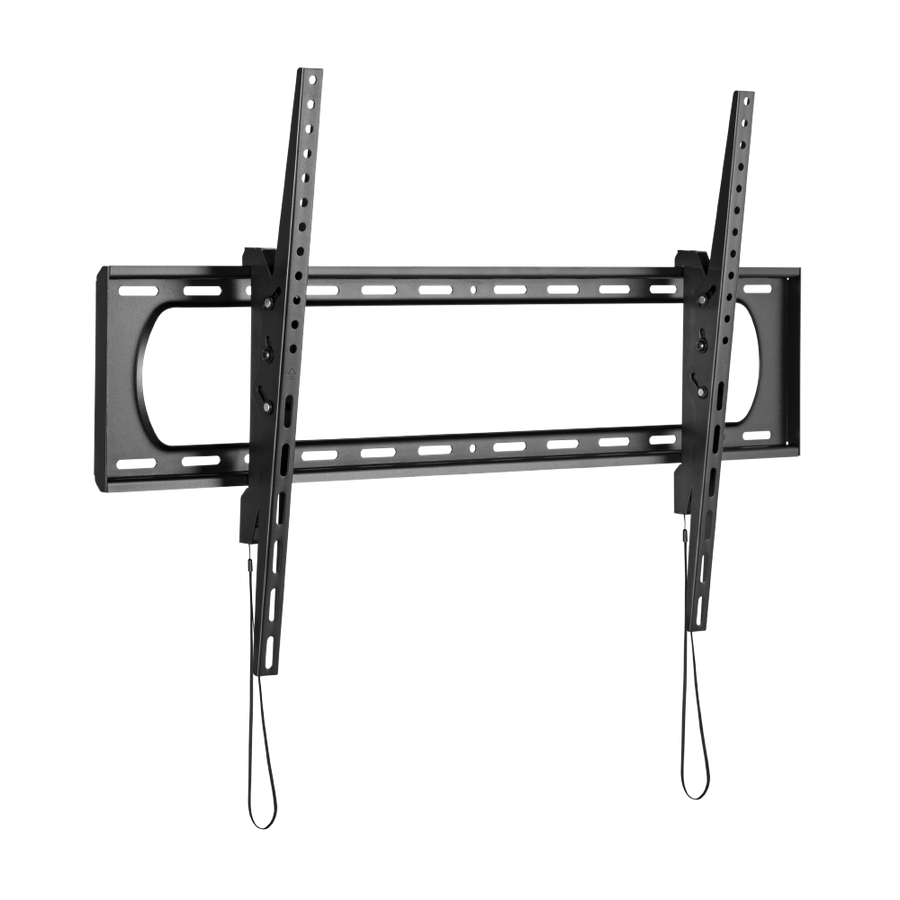

VSYS VS01A-69T Heavy-Duty Tilting TV Wall Mount for 60"–120" Displays, 120 kg
- Model: VS01A-69T
- SKU: VS01A-69T
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VS01A-69T is a 120 kg heavy-duty tilting wall mount for 60"–120" displays, with toolless adjustment through 10 degrees, available in the UAE from Procure.ae. Large panels are rarely hung at seated eye level. Auditorium screens sit above the sightline of the back... See More
The VSYS VS01A-69T is a 120 kg heavy-duty tilting wall mount for 60"–120" displays, with toolless adjustment through 10 degrees, available in the UAE from Procure.ae.
Large panels are rarely hung at seated eye level. Auditorium screens sit above the sightline of the back rows, retail and transport signage is lifted clear of foot traffic, and ballroom displays are raised so the whole room can see them. A flat-mounted panel in those positions throws ceiling light straight back at the audience and forces viewers to look up at an oblique angle. The VS01A-69T corrects the geometry by letting the screen face down toward the people watching it.
Tilt runs 10 degrees either side of vertical and is set by hand, so the angle can be corrected after commissioning without unbolting the display or reaching for tools. The rest of the structure matches the heavy-duty class: 2 mm cold-rolled steel arms and wall plate, a 120 kg rating, UL approval, and VESA coverage from 50 x 50 mm to 900 x 600 mm with a maximum hole spread of 965 x 602 mm. Spring locks with pull cords release the panel for rear access.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Toolless tilt from plus 10 to minus 10 degrees, so the viewing angle can be trimmed on site after the room is furnished.
- 120 kg load rating carries commercial 98" and 110" panels that fall outside consumer tilt-mount limits.
- Fits displays from 60" to 120", flat or curved, covering most large-format specifications from a single part number.
- 2 mm cold-rolled steel is used for both the bracket arms and the wall plate, keeping deflection low at full tilt.
- UL approved, which supports sign-off on high, public-facing installations.
- VESA range of 50 x 50 mm to 900 x 600 mm, with a maximum hole spread of 965 x 602 mm for wide-pattern panels.

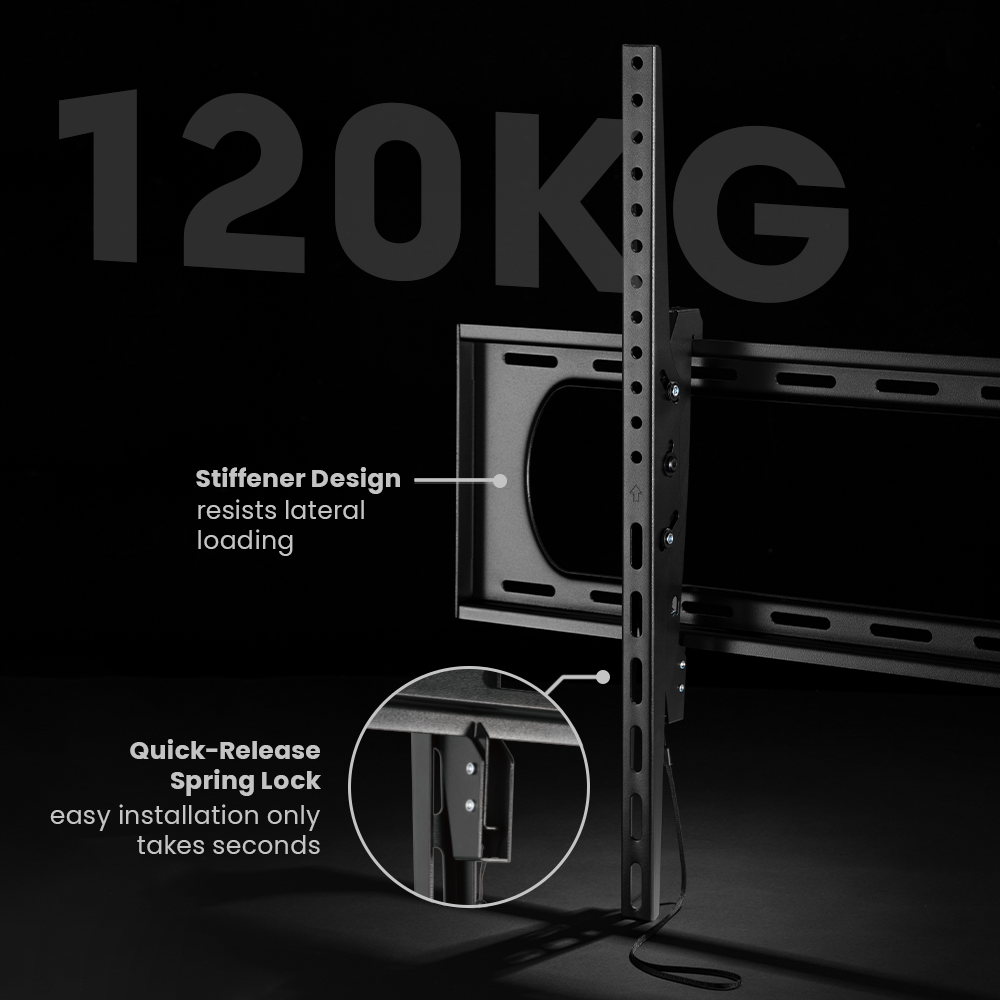

- Quick-release spring locks with pull cords allow the panel to be detached for cabling or service and re-seated securely.
- Wide wall plate distributes the load across two studs at 406 mm, 450 mm or 600 mm centres, or fixes to a solid wall.
- Hook-on bubble level is supplied so the plate can be trued before the anchors are tightened.
- Open architecture behind the screen leaves clearance for outlets, concealed cabling and airflow.
Technical Specifications
| Model | VS01A-69T |
| Mount type | Heavy-duty tilting wall mount |
| Screen size range | 60 to 120 inches |
| Weight capacity | Up to 120 kg |
| Tilt | Plus 10 to minus 10 degrees, toolless |
| VESA range | 50 x 50 mm to 900 x 600 mm |
| Maximum hole spread | 965 x 602 mm |
| Material | 2 mm cold-rolled steel arms and wall plate |
| Panel release | Quick-release spring locks with pull cords |
| Stud spacing | 406 mm, 450 mm and 600 mm |
| Certification | UL approved |
| Supplied with | Hook-on bubble level |
Ideal for: auditoriums and lecture theatres, digital signage and video-wall positions above head height, hotel ballrooms and function rooms, airport and metro passenger displays, mall atrium screens, and large boardrooms where the display is set above the table line across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VS01A-69T Heavy-Duty Tilting TV Wall Mount for 60"–120" Displays, 120 kg |
| Mounting Type | Wall mount |
| Screen Size Support | 60 to 120 inches |
| Wall Mount Type | Heavy duty tilting |
| Product Type | Heavy duty tilting wall mount |
| Screen Size Range | 60 to 120 inches |
| Load Capacity | Up to 120 kg |
| VESA Compatibility | 50 x 50 mm to 900 x 600 mm, maximum hole spread 965 x 602 mm |
| Movement | Toolless downward tilt |
| Tilt | Plus 10 to minus 10 degrees, toolless |
| Material and Finish | 2 mm cold-rolled steel arms and wall plate |
| Mounting Interface | Solid wall or dual studs at 406 mm, 450 mm and 600 mm spacing |
| Cable Management | Open architecture rear space for outlets, cabling and ventilation |
| Testing and Certification | UL approved |

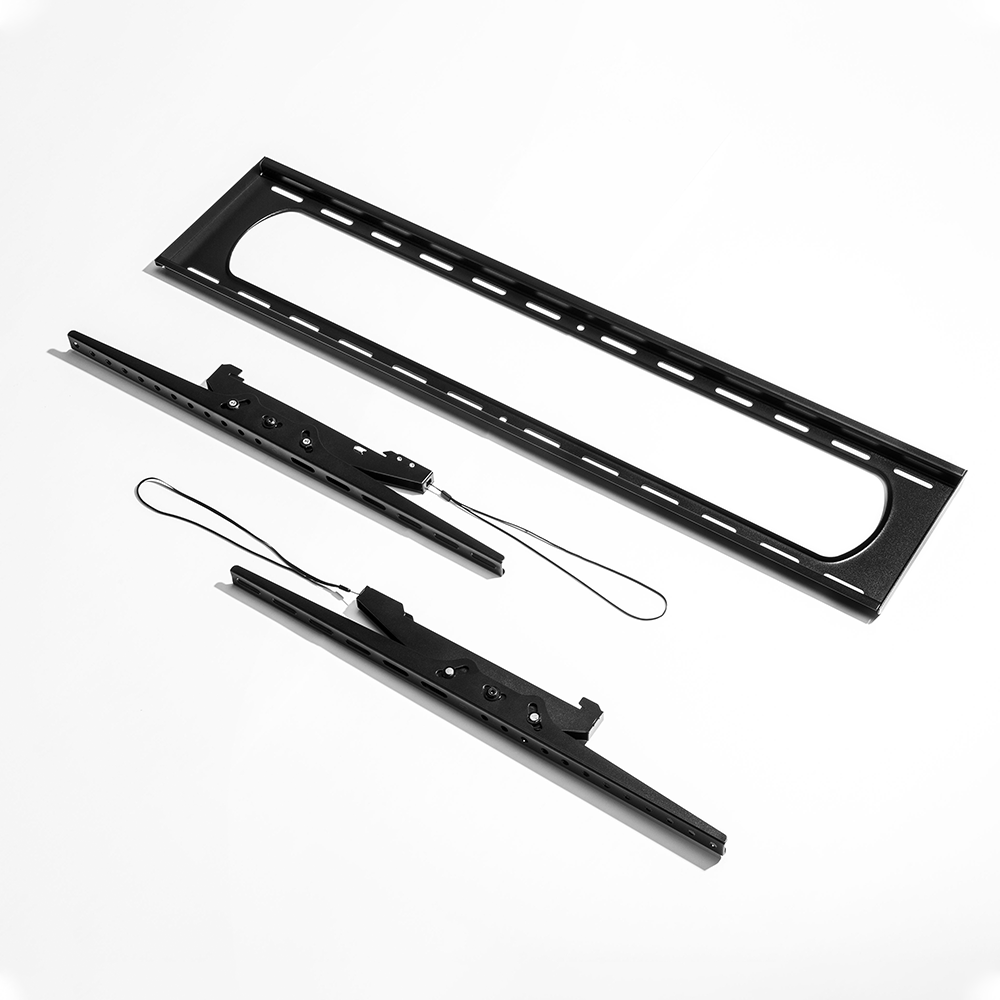

| In the Box | Wall plate, bracket arms, fixing hardware and hook-on bubble level |
| MPN | VS01A-69T |
| Model | VS01A-69T |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VS01A-69T in the UAE?
Procure.ae supplies the VSYS VS01A-69T across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How much does the VS01A-69T tilt, and do I need tools?
The tilt range is 10 degrees forward and 10 degrees back, and it is set by hand. No tools are required, so the angle can be adjusted after the display is installed and the room is in use.
What display size and weight does it take?
Panels from 60" to 120" weighing up to 120 kg, flat or curved. Confirm the display's own weight and VESA pattern from its specification sheet before ordering.
Which VESA patterns are supported?
Anything from 50 x 50 mm up to 900 x 600 mm, with a maximum usable hole spread of 965 x 602 mm, which covers the wide grids found on 98" and larger commercial panels.
Should I choose the tilting VS01A-69T or the fixed VS01A-69F?
Choose the tilting model when the screen sits above eye level or when ceiling lighting causes reflections. Choose the fixed model when the display is at viewing height and you want the shallowest possible profile.
Can it be supplied for a multi-site roll-out?
Yes. Procure.ae quotes the VS01A-69T in project quantities for signage, education and hospitality programmes, and can align delivery with an installation schedule.
