VSYS VPM-20-02L Adjustable Telescopic Projector Ceiling Mount, 735–1135 mm Drop, 35 kg

The VSYS VPM-20-02L is a telescopic projector ceiling mount carrying projectors up to 35 kg on its own adjustable pole, available in the UAE from Procure.ae.

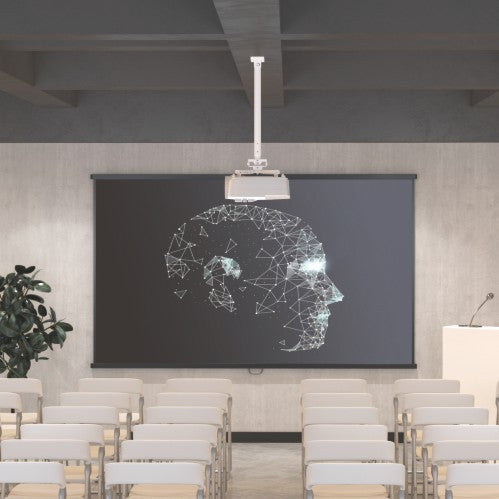

Ceiling heights are rarely consistent across a building. Meeting rooms, lecture halls and prayer halls in the same project can differ by half a metre, and cutting bespoke pipe for each one costs time on site. The VPM-20-02L answers that by shipping as a complete assembly with a telescoping column, so one part number covers rooms with different slab heights and the installer sets the drop on the day rather than ordering pipe to length in advance.

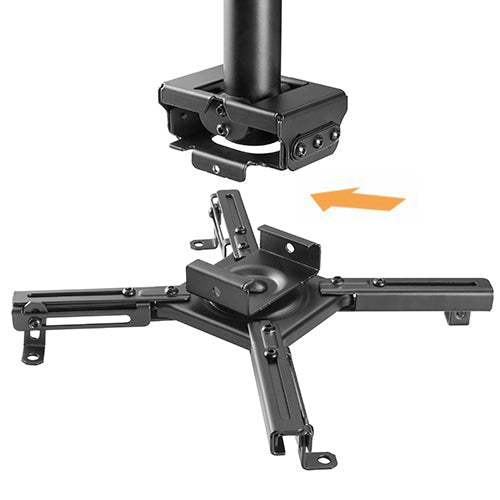

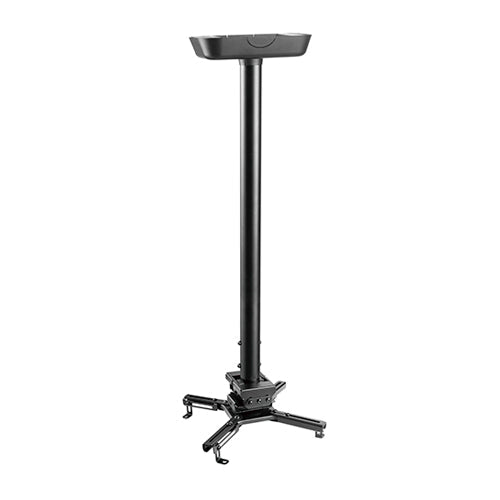

The column extends from 735 mm to 1135 mm and locks at the chosen height. Below it, four adjustable arms slide across a 130 mm to 470 mm spread to meet the projector chassis holes, so compatibility is judged by arm span rather than by a VESA pattern. Once loaded, the head tilts 20 degrees either side of level, swivels 8 degrees either way, and rotates a full 180 degrees in both directions. Power and signal cables run inside the pole.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Telescopic Projector Ceiling Mount
  • Self-contained telescopic column adjusts from 735 mm to 1135 mm, so no separate NPT pipe has to be sourced, cut or threaded on site.
  • Rated for projectors up to 35 kg (77 lb), covering full-size installation and laser projectors rather than compact units only.

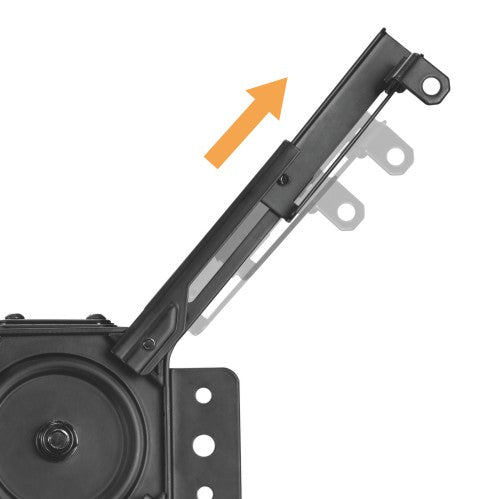

  • Adjustable arm spread of 130 mm to 470 mm fits a wide range of projector chassis hole patterns.
Price
On request · best price
1
WhatsApp Call
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Self-contained telescopic column adjusts from 735 mm to 1135 mm, so no separate NPT pipe has to be sourced, cut or threaded on site.
02
Rated for projectors up to 35 kg (77 lb), covering full-size installation and laser projectors rather than compact units only.
03
Adjustable arm spread of 130 mm to 470 mm fits a wide range of projector chassis hole patterns.
04
Tilt of plus 20 to minus 20 degrees squares the image vertically after the ceiling plate is fixed.
05
Swivel of plus 8 to minus 8 degrees trims horizontal alignment to the screen edge.
06

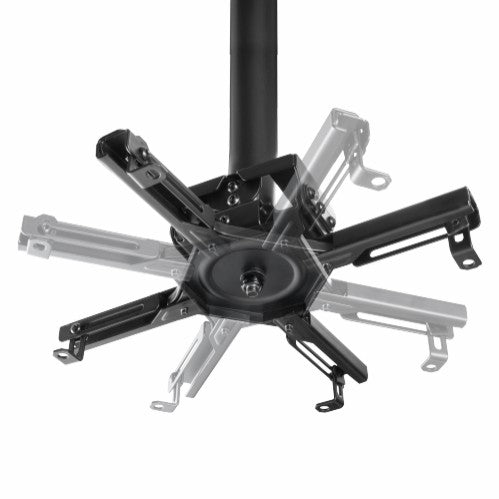

Rotation of plus 180 to minus 180 degrees lets the projector face any direction from a single ceiling point.
07

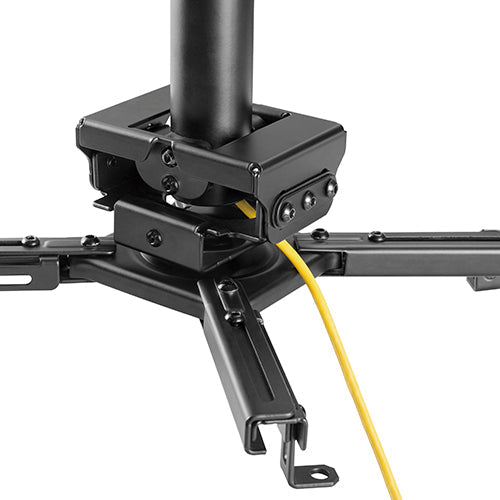

Cables route inside the column, leaving no visible loom between the slab and the projector.
08
Steel and plastic construction with a powder-coated finish in matte black or matte white to suit dark or painted ceilings.
09
One model standardises multi-room rollouts where slab heights vary, simplifying specification and spares holding.

Specifications

14 specifications
General
Key FeaturesInternal routing through the telescopic column
ModelVPM-20-02L
TypeTelescopic Projector Ceiling Mount
Physical
AdjustabilityTilt, swivel, rotation
Extension130-470 mm (arm spread)
FinishMatte black or matte white powder-coated
Height Range735-1,135 mm, telescopic column
Load Capacity35 kg (77 lb)
MaterialSteel and plastic
MountingCeiling mount
Rotation+/-180°
Swivel+/-8°
Tilt-20 to +20°
Wall FixingCeiling plate to joist or concrete slab, four adjustable arms to projector chassis

Questions

Can’t find your answer? Ask on WhatsApp

How is the VPM-20-02L different from a pipe-mounted bracket?
It includes its own telescopic column, so nothing has to be cut to length on site. A pipe-mounted interface bracket relies on a separately specified NPT pipe. If your ceiling heights vary from room to room, the telescopic column is usually the faster and cheaper route.
How low can the projector hang below the ceiling?
Between 735 mm and 1135 mm, adjusted and locked during installation. That range suits high slabs and rooms where the projector has to drop below beams, ducting or a lighting grid.
Will my projector fit?
Fit is decided by weight and by chassis hole pattern, not by VESA. Any projector up to 35 kg whose four mounting holes fall within the 130 mm to 470 mm arm spread will mount. Measure the hole spacing on the underside of the projector before ordering.
What ceiling construction does it need?
The ceiling plate must be fixed into a structural joist or a concrete slab rather than into plasterboard or a suspended tile grid. On suspended ceilings, a structural fixing above the grid with a trim ring is the normal approach.
Is it available in white?
