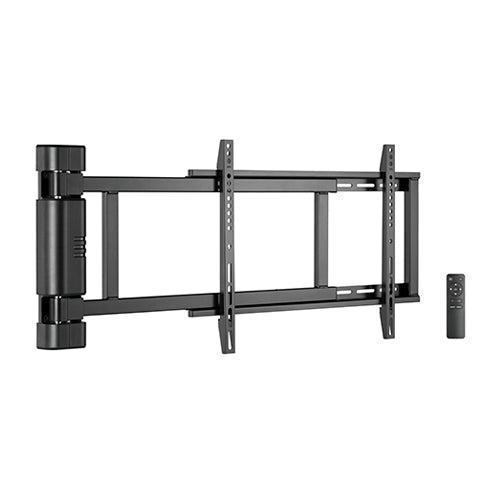

VSYS VCM-M06 Motorised Swing TV Wall Mount for 32"–75" Displays, 50 kg

VSYS VCM-M06 Motorised Swing TV Wall Mount for 32"–75" Displays, 50 kg

The VSYS VCM-M06 is a motorised swing wall mount for 32"–75" displays up to 50 kg, driven through 170 degrees of swivel by remote control, available in the UAE from Procure.ae.

Manual articulating arms work well until the screen is heavy, the arm is long, or the person who needs to move it cannot easily reach it. A 65" panel on a full-extension arm takes two hands and a deliberate effort to reposition, and repeated handling marks the bezel. The VCM-M06 removes the handling entirely. The display is driven by a motor rather than pushed, which suits open-plan rooms where one screen has to serve a lounge, a dining table and a kitchen at different times of day.

Swing runs from 0 to 170 degrees and is commanded from the supplied RF remote, which does not need line of sight to the mount. Preferred angles can be stored in position memory and recalled with a single press, and a collision-avoidance system halts the movement if the arm meets an obstruction. Retracted depth is 56 mm, so the screen sits close to the wall when it is parked. The mount accepts VESA patterns from 200 x 200 mm to 600 x 400 mm and runs from a standard AC supply through the included 1.5 m power cord.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Motorised Swing Wall Mount

Key features

01
Motorised swing through 0 to 170 degrees means the display is repositioned by remote rather than by hand.
02
RF remote control is supplied, so the mount responds without needing to be pointed at directly.
03
Position memory stores preferred viewing angles and recalls them in one press, which matters in rooms with fixed seating zones.
04
Collision avoidance stops the swing when an obstruction is detected in the arm's path.
05
Rated for 32" to 75" displays up to 50 kg, and load-tested to three times that rated capacity.
06
Retracted depth of 56 mm keeps the screen close to the wall when the arm is parked.
07
VESA coverage from 200 x 200 mm to 600 x 400 mm fits the mounting grids used across this size class.
08
Runs from a standard AC outlet using the supplied 1.5 m power cord, with no separate control box to specify.
09
Wall plate, fixing hardware and a hook-on bubble level are supplied for fixing to a solid wall or a stud.
10
Useful in accessible installations where reaching behind or beside a manual mount is difficult.

Specifications

General
ModelVCM-M06
TypeMotorised Swing Wall Mount
What's in the BoxWall plate and hardware, RF remote control, Hook-on bubble level and 1.5 m power cord
Display
Supported Screen Sizes32-75"
Physical
AdjustabilitySwivel (motorised)
Extension56 mm folded
Load Capacity50 kg
MountingMotorised swing arm
Swivel0 to 170°, motorised
VESA Mount200 x 200 to 600 x 400 mm
Wall FixingSolid wall or stud using the supplied wall plate and hardware
