VSYS VCM-CE1546SL Side-by-Side Dual-Screen Ceiling Mount for 34"–60" Displays, 40 kg per Screen
- Model: VCM-CE1546SL
- SKU: VCM-CE1546SL
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VCM-CE1546SL is a side-by-side dual-screen ceiling mount that hangs two 34"–60" displays from one pole, 40 kg per screen, available in the UAE from Procure.ae. Two adjacent screens are a standard requirement in departure halls, pharmacy counters and quick-service kitchens, where one... See More

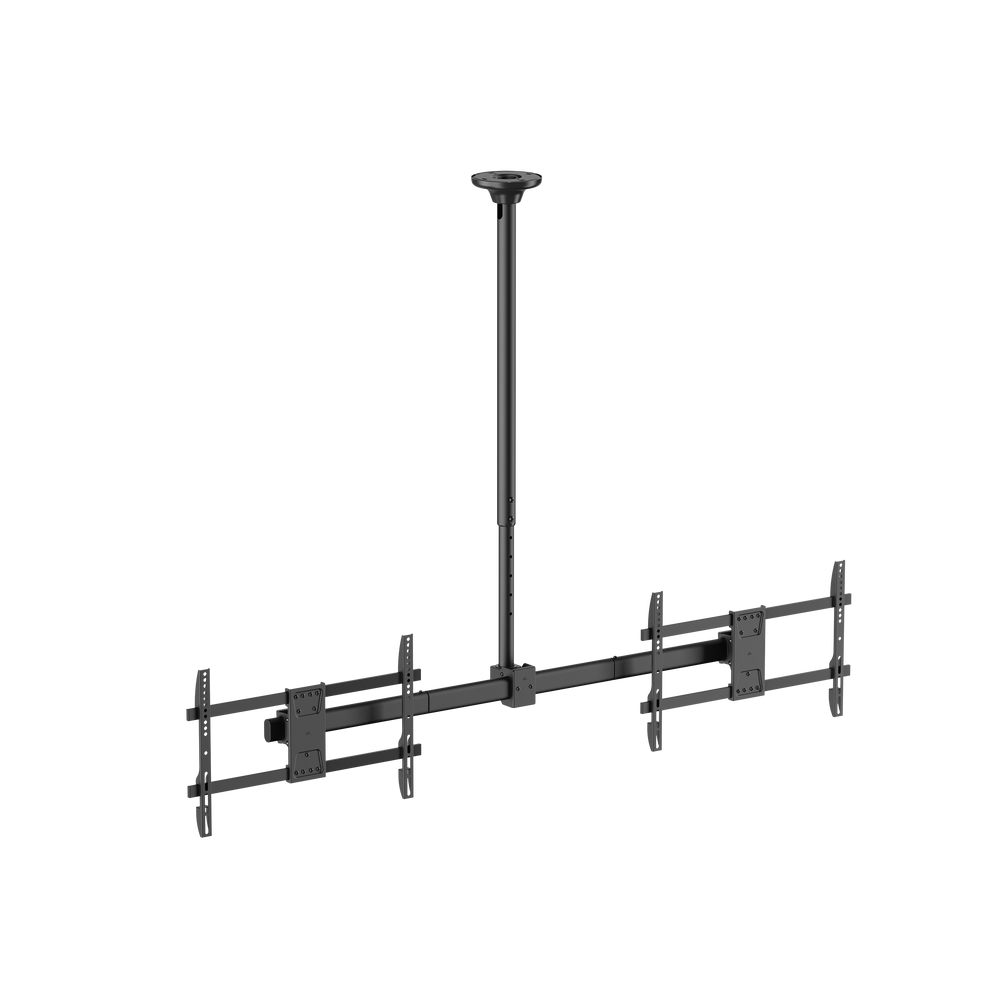

The VSYS VCM-CE1546SL is a side-by-side dual-screen ceiling mount that hangs two 34"–60" displays from one pole, 40 kg per screen, available in the UAE from Procure.ae.
Two adjacent screens are a standard requirement in departure halls, pharmacy counters and quick-service kitchens, where one panel carries a queue or flight list and the second carries menu or promotional content. Hanging them from two separate ceiling points rarely lines up: the fixings hit different joists, the drops differ by a few millimetres, and the pair reads crooked from the floor. This mount solves that by carrying both panels on one structural point and one shared pole.
Each side takes up to 40 kg independently, 80 kg combined, on VESA patterns from 200x200 mm to 600x400 mm. The telescopic pole sets the drop between 1065 mm and 1665 mm, and the ceiling plate tilts so the assembly seats on a pitched roof as well as a flat slab. Both heads rotate a full 360 degrees around the pole, tilt from 0 to minus 25 degrees, and level plus or minus 3 degrees individually. The panels detach for fitting, and cabling for both screens runs concealed.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Two displays of 34 to 60 inches mount side by side on a single ceiling fixing, which halves the structural work compared with two separate mounts.
- 40 kg per screen and 80 kg combined, enough for a matched pair of commercial signage panels.

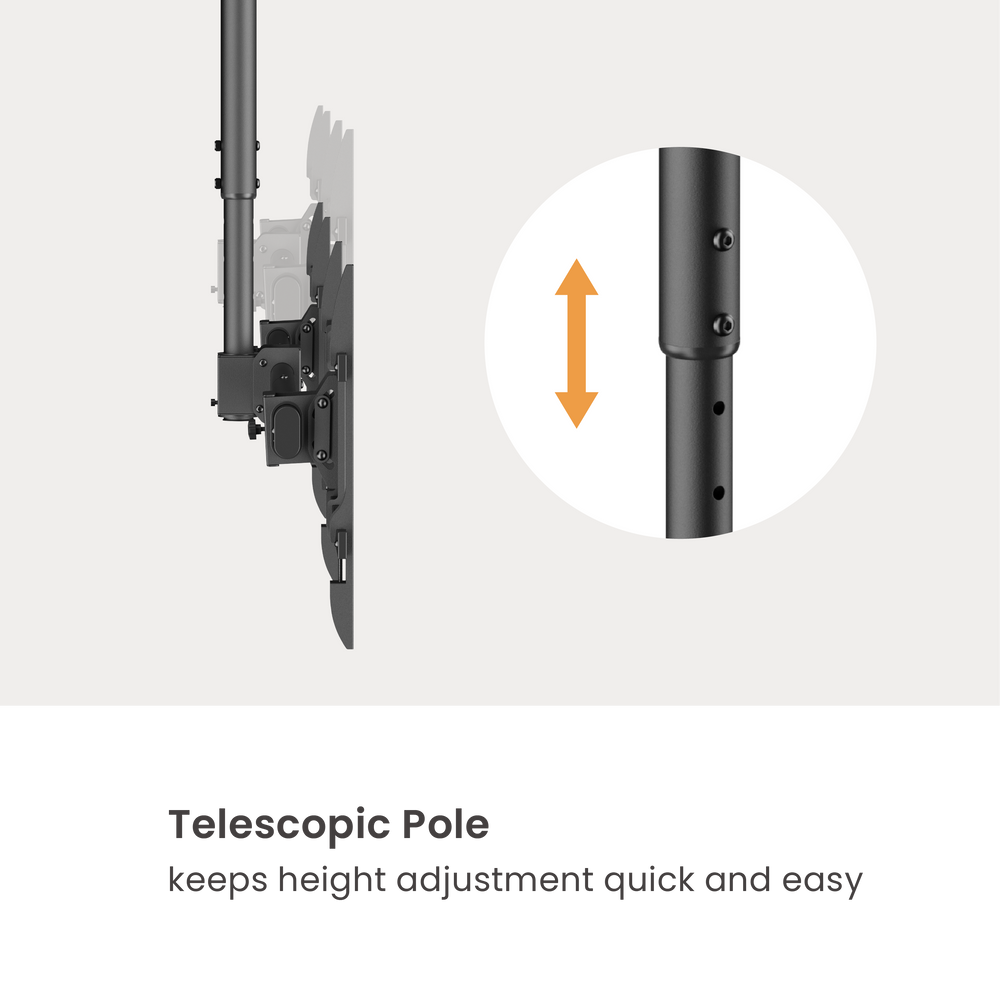

- Telescopic pole drops the pair from 1065 mm to 1665 mm below the ceiling, covering standard and high soffits from one part number.
- Tiltable ceiling plate seats on pitched roof structures as well as flat slabs, without a separate angled adaptor.

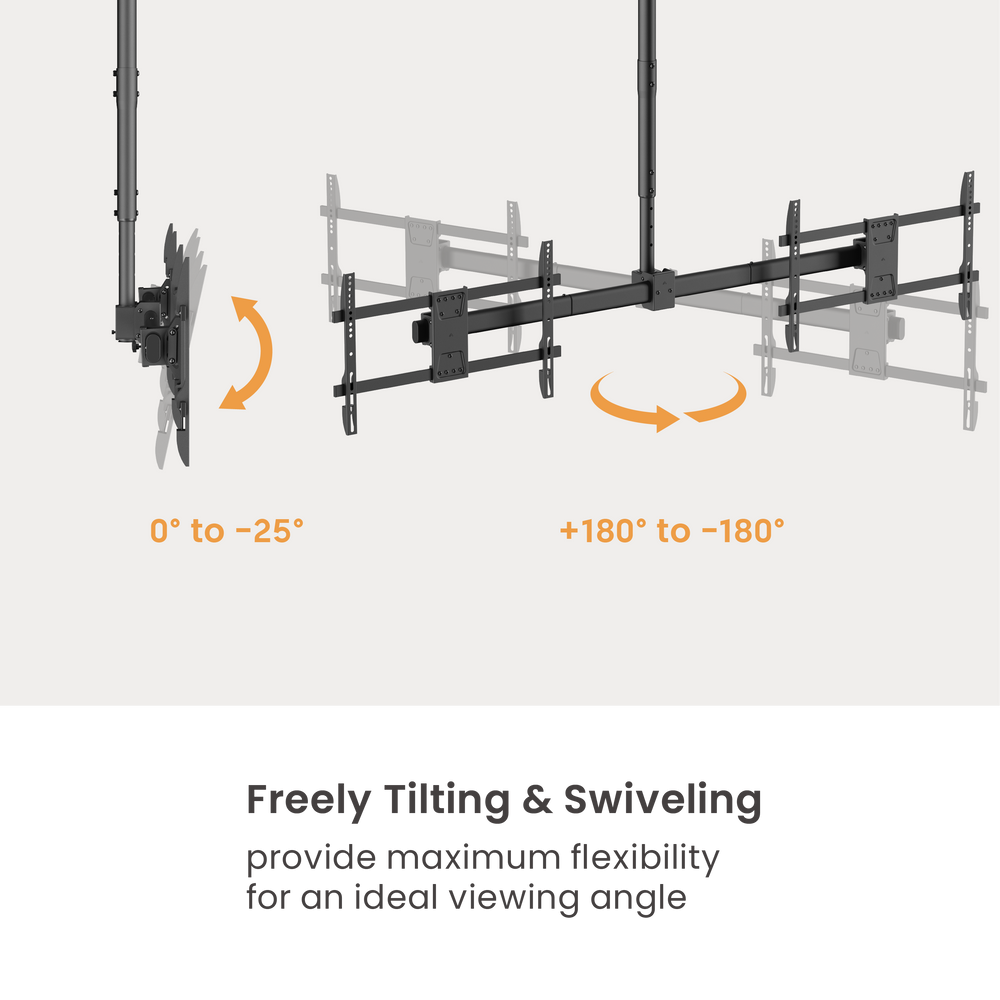

- Full 360 degree rotation around the shared pole reorients both screens together as circulation patterns change.
- Tilt from 0 to minus 25 degrees brings both panels down towards the viewer when mounted high above the floor.

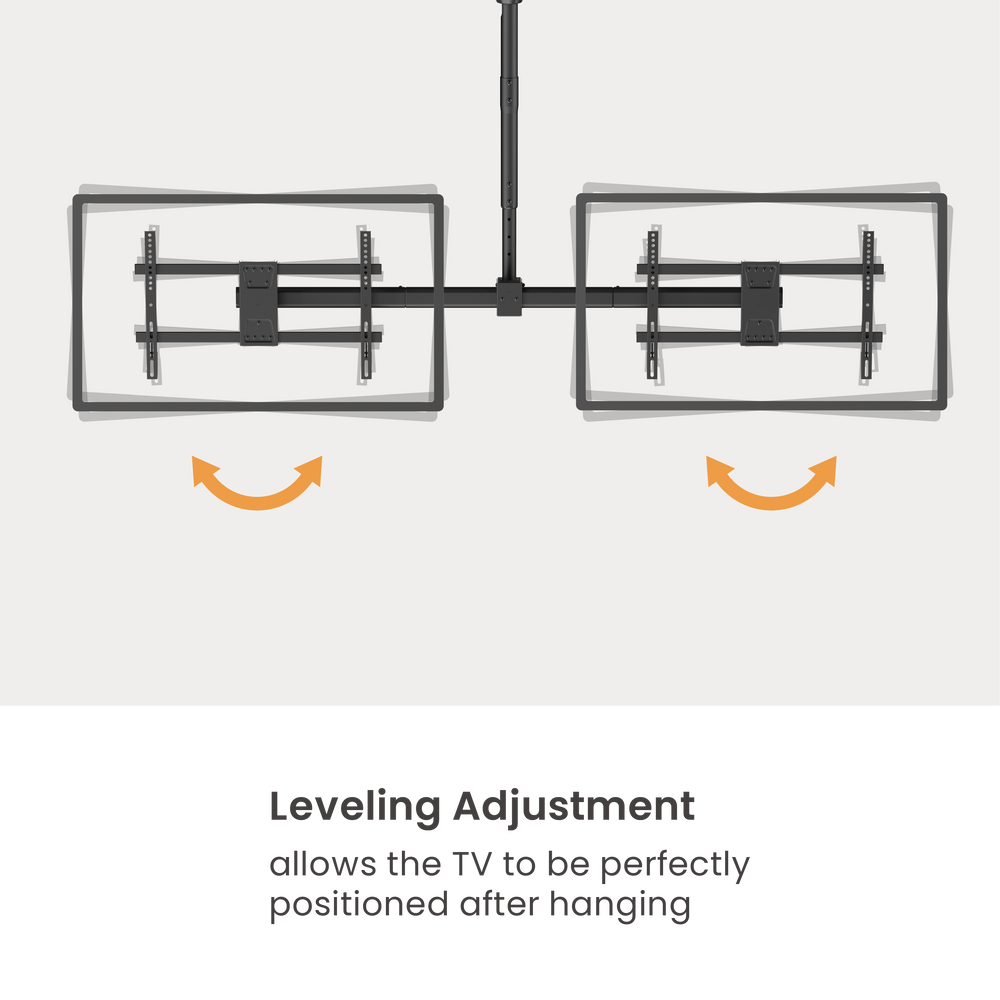

- Independent levelling of plus or minus 3 degrees on each head, which is what makes a side-by-side pair read as one clean line.
- Detachable panels simplify lifting and fitting a two-screen assembly overhead.

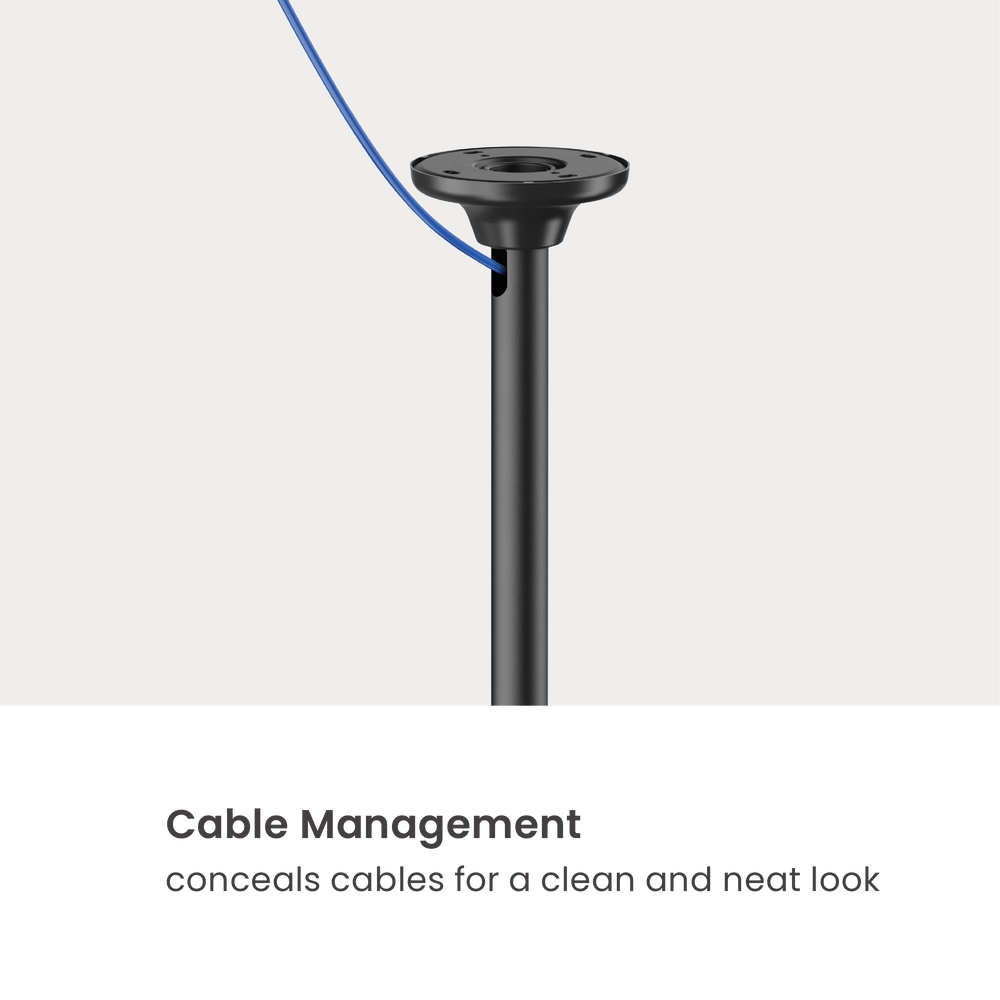

- Integrated cable management conceals the runs for both displays inside the assembly.
- 1.5 mm to 2.5 mm cold-rolled steel with a black powder-coat finish, strength tested to 4x.
Technical Specifications
| Model | VCM-CE1546SL |
| Type | Side-by-side dual-screen ceiling mount |
| Screen Size Range | 34 to 60 inch per screen |
| Weight Capacity | 40 kg per screen, 80 kg combined |
| VESA Compatibility | 200x200 mm to 600x400 mm per screen, maximum hole spread 610x402 mm |
| Drop Range | Telescopic pole 1065 mm to 1665 mm |
| Tilt | 0 to minus 25 degrees |
| Rotation | 360 degrees around the shared pole |
| Levelling | Plus or minus 3 degrees per screen |
| Ceiling Plate | Tiltable, suits flat or pitched ceilings |
| Material | 1.5 mm to 2.5 mm cold-rolled steel |
| Finish | Black powder coat |
| Cable Management | Integrated, with detachable panels for installation |
| Testing | Strength tested to 4x |
Ideal for: airport gate and check-in areas showing flight and queue data, pharmacy and clinic reception counters, quick-service restaurants running paired menu boards, supermarket and retail promotional zones, bank and government service halls, and hotel lobby information points across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VCM-CE1546SL Side-by-Side Dual-Screen Ceiling Mount for 34"–60" Displays, 40 kg per Screen |
| Height Adjustment Type | Manual telescopic pole |
| Mounting Type | Ceiling mounted, tiltable plate for flat or pitched ceilings |
| Screen Size Support | Two displays, 34 to 60 inch each |
| Product Type | Side-by-side dual-screen ceiling mount |
| Screen Size Range | 34 to 60 inch per screen |
| Load Capacity | 40 kg per screen, 80 kg combined |
| VESA Compatibility | 200x200 mm to 600x400 mm per screen, maximum hole spread 610x402 mm |
| Movement | Tilt, 360 degree rotation and per-screen levelling |
| Tilt | 0 to minus 25 degrees |
| Rotation | 360 degrees around the shared pole |
| Height Range | 1065 mm to 1665 mm below the ceiling |
| Drop Range | Telescopic pole 1065 mm to 1665 mm |
| Material and Finish | 1.5 mm to 2.5 mm cold-rolled steel |
| Available Finishes | Black powder coat |
| Mounting Interface | VESA 200x200 mm to 600x400 mm per screen |
| Cable Management | Integrated cable management with detachable panels |
| Testing and Certification | Strength tested to 4x |
| In the Box | Tiltable ceiling plate, telescopic pole, two VESA display brackets, mounting hardware kit, installation instructions |
| MPN | VCM-CE1546SL |
| Model | VCM-CE1546SL |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VCM-CE1546SL in the UAE?
Procure.ae supplies the VSYS VCM-CE1546SL across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
Are the two screens side by side or back to back?
Side by side. Both panels face the same direction and sit next to each other on one pole, which suits paired signage content viewed from a single approach. If the site needs the screens to face opposite directions, ask Procure.ae about the back-to-back version in the same family.
How much weight will each side carry?
Up to 40 kg per screen, 80 kg across the pair. Check both panels against that figure individually, since the rating is per side rather than an average.
What screen sizes does it take, and can they be different?
Each side accepts a 34 to 60 inch display with a VESA pattern between 200x200 mm and 600x400 mm, up to a 610x402 mm hole spread. In practice, matched pairs look best in a side-by-side layout because the two panels share one horizontal line.
How do I get both screens perfectly aligned?
Each head has an independent plus or minus 3 degree levelling adjustment, so the pair can be trimmed to the same line after the ceiling plate is fixed. This is the adjustment that matters most on a dual mount, since any difference between the two screens is immediately visible.
Will it fit a sloped ceiling, and how far down does it hang?
The ceiling plate tilts to suit a pitched roof as well as a flat slab, and the telescopic pole sets the drop anywhere from 1065 mm to 1665 mm below the fixing point.
