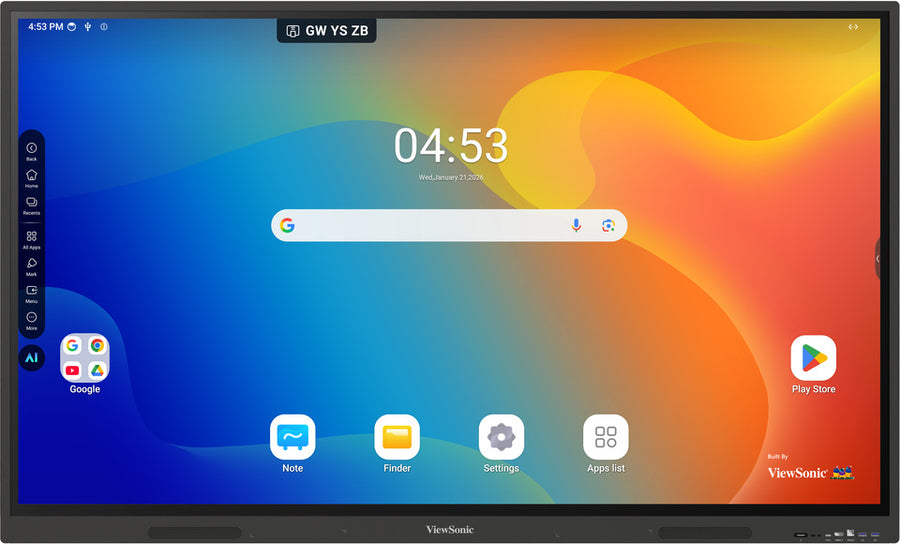

ViewSonic IN6505-C 65-inch 4K interactive flat panelViewSonic

ViewSonic ViewBoard IN05 Series 65-inch 4K Interactive Flat Panel – IN6505-C

The ViewSonic IN6505-C is a 65-inch 4K UHD interactive flat panel with 50-point Ultra Fine Touch, Android 16 and built-in Wi-Fi and Bluetooth. It suits classrooms and meeting rooms that run Google Play Store apps and need pen or finger annotation. Procure.ae, an authorised ViewSonic reseller, supplies the IN6505-C across the UAE.

The IN6505-C has a 3840 x 2160 LCD panel with 400 nits brightness, a 5,000:1 contrast ratio with dynamic contrast enabled and a 6.5 ms response time. Its Ultra Fine Touch supports 50-point input from fingers or dual-tip pens, on a 9H anti-glare surface with zero bonding. An octa-core processor with 8 GB of RAM and 128 GB of storage runs Android 16 with Google Play Store access. Light and environmental sensors are built in.

Procure.ae recommends the IN6505-C for classrooms and meeting rooms that want Android apps and wireless connectivity in one display. Built-in Wi-Fi and Bluetooth sit alongside one RJ45 port for wired networking, and a front USB-C port provides USB 3.2 Gen 1 data. The unit also has four USB-A ports, two USB-B ports, an 80-pin OPS slot and RS232. The VESA pattern is 600 x 400 mm and the net weight is 30.2 kg. The IN6503-1C in the same 65-inch size runs Android 14 with 40-point touch.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
  • 65-inch 4K UHD panel
  • 50-point Ultra Fine Touch
  • Android 16 with Google Play
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
65-inch 4K UHD panel
3840 x 2160 resolution, 400 nits brightness and a 5,000:1 contrast ratio.
02
50-point Ultra Fine Touch
Finger and dual-tip pen input on a 9H anti-glare surface with zero bonding.
03
Android 16 with Google Play
EDLA-certified access to Google Play Store apps.
04
Built-in Wi-Fi and Bluetooth
Wireless connectivity built into the display.
05
Light and environmental sensors
Ambient light and environmental sensing built in.
06
Octa-core with 8 GB RAM
8 GB RAM and 128 GB of storage for Android apps.
07
Connectivity
Four USB-A, two USB-B, one USB-C, RJ45, RS232 and an 80-pin OPS slot.

Specifications

33 specifications
General
Key FeaturesAndroid 16, Google EDLA certified, 50-point Ultra Fine Touch, built-in Wi-Fi and Bluetooth, light and environmental sensors, 80-pin OPS slot, USB-C input, built-in speakers
ModelIN6505-C
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth1.07 billion colors (8-bit + FRC)
Contrast Ratio5,000:1
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
Touch Points50-point multi-touch
Touch Resolution32768 x 32768
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 16
ProcessorOcta-core
RAM8 GB
Storage128 GB
Connectivity
EthernetRJ45 x 1 (10/100/1000 Mbps)
Input Voltage100–240 V AC
OPS Slot80-pin OPS slot x1
PortsRJ45 x 1, RS232 x 1, USB-A x 4, USB-B x 2, USB-C x 1, 80-pin OPS slot x1
Serial PortRS232 x 1
USB PortsUSB-A x 4 (USB 3.2 Gen 1 x 3, USB 2.0 x 1); USB-B x 2 (USB 2.0)
USB-C Ports1 (front, USB 3.2 Gen 1)
Wi-FiBuilt-in Wi-Fi and Bluetooth
Power
Power Consumption72.54 W (on), under 0.5 W (off)
Physical
Dimensions1491 x 898.5 x 99.1 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight30.2 kg

Downloads

Manufacturer documents for the ViewSonic ViewBoard IN05 Series 65-inch 4K Interactive Flat Panel – IN6505-C — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the IN6505-C have built-in Wi-Fi?
Yes. It has a built-in Wi-Fi and Bluetooth module, rated at 18 dBm on 2.4 GHz, 15 dBm on 5 GHz and 4 dBm for Bluetooth. It also has one RJ45 port at 10/100/1000 Mbps for wired networking.
What is the difference between the IN6505-C and the IN6503-1C?
Both are 65-inch 4K ViewBoard displays with Google EDLA certification. The IN6505-C runs Android 16 with 50-point touch, 400 nits brightness and built-in Wi-Fi and Bluetooth. The IN6503-1C runs Android 14 with 40-point touch and 450 nits brightness.
Is the IN6505-C suitable for a classroom?
Yes. The 65-inch 4K panel, 50-point touch and built-in speakers suit classroom use. The manufacturer's specifications do not state a recommended room size, so Procure.ae can advise on viewing distance and layout.
How is the IN6505-C mounted?
It mounts on a wall using a VESA pattern of 600 x 400 mm. The unit weighs 30.2 kg net, so use a wall mount rated for that load and a professional installation team. Procure.ae provides installation across the UAE.
Does it have wired network access?
Yes. Its RJ45 port runs at 10/100/1000 Mbps for Android. The manufacturer's specifications cap the OPS and touch-out network connections at 100 Mbps, and USB-C does not support network use.
Can I buy the IN6505-C in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
