ViewSonicInteractive Flat PanelsSKU IFP8663-2C

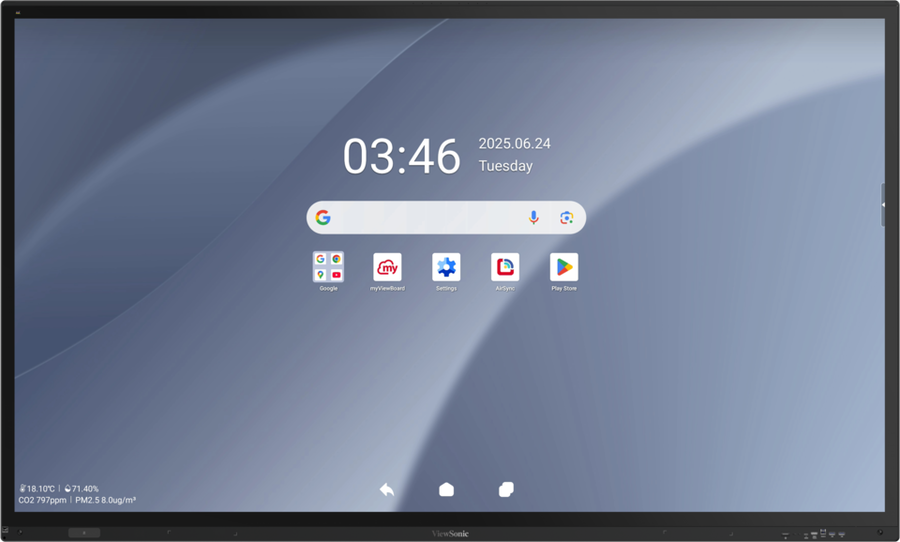

ViewSonic ViewBoard IFP63 Series 86-inch 4K Interactive Flat Panel – IFP8663-2C
The ViewSonic IFP8663-2C is an 86-inch 4K UHD interactive flat panel with 50-point PCAP touch, Android 15 and 32 GB of RAM. It suits classrooms, boardrooms and hybrid meeting rooms that run heavier annotation and multi-app workflows. Procure.ae, an authorised ViewSonic reseller, supplies the IFP8663-2C across the UAE.
The IFP8663-2C has a 3840 x 2160 LCD panel with 450 nits typical brightness, a 5,000:1 contrast ratio and an 8 ms response time. Its 50-point PCAP touch supports palm rejection with passive and active pens, and Write Away provides pen-on-paper annotation. An octa-core processor with 32 GB of LPDDR RAM and 128 GB of eMMC storage runs Android 15. Built-in light, PIR and environmental sensors adjust brightness and monitor room conditions.
Procure.ae recommends the IFP8663-2C for classrooms, lecture theatres and corporate meeting rooms where several people annotate, cast and share from different devices. It ships with myViewBoard for Android, myViewBoard for Windows, TeamOne whiteboarding, AirSync wireless presentation and Manager remote device management. Two RJ45 ports, an OPS slot, a WiFi slot and USB-C ports with 65 W and 100 W power delivery handle the connections. The VESA pattern is 800 x 600 mm. The IFP8663-1C uses the same panel and software with 16 GB of RAM.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
PCAP
- 86-inch 4K UHD panel
- 50-point PCAP touch
- Android 15 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-inch 4K UHD panel
3840 x 2160 resolution with 450 nits typical brightness and a 5,000:1 contrast ratio.
02
50-point PCAP touch
Palm rejection for passive and active pens, with Write Away pen-on-paper annotation.
03
Android 15 platform
EDLA-certified access to Google Play Store apps and regular security updates.
04
Octa-core with 32 GB RAM
Quad A76 and quad A55 cores, 32 GB LPDDR RAM and 128 GB eMMC storage.
05
Collaboration software
myViewBoard for Android and Windows, TeamOne whiteboarding and AirSync wireless presentation.
06
Remote device management
Manager software for managing displays remotely.
07
Sensors and NFC
Light, PIR and environmental sensors, plus an NFC reader for tap-to-sign-in.
08
Connectivity
Two RJ45 ports, three USB-C ports with power delivery, an OPS slot and DisplayPort 1.2.
Specifications
36 specificationsGeneral
Key FeaturesAndroid 15, EDLA certified, Write Away, NFC sign-in, environmental sensors, AirSync wireless casting, TeamOne whiteboarding, Manager device management
ModelIFP8663-2C
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness450 nits
Color Depth1.07 billion colors (8-bit + FRC)
Contrast Ratio5,000:1
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points50-point multi-touch
Touch Resolution32767 x 32767
Touch TechnologyPCAP
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 15
ProcessorOcta-core (4x A76 + 4x A55)
RAM32 GB
Storage128 GB
Audio
Audio In3.5 mm mic in x 1
Audio Out3.5 mm earphone out x 1
DisplayPortDisplayPort 1.2 x 1
Connectivity
EthernetRJ45 x 2 (10/100/1000 Mbps)
Input Voltage100–240 V AC
OPS SlotOPS slot x1
SD Card SlotMicroSD slot x1
Serial PortRS232 x 1
USB PortsUSB-A x 5 (USB 3.2 Gen 1 x 4, USB 2.0 x 1); USB-B touch x 3
USB-C Ports3 (front 65 W PD, rear 100 W PD, top 15 W PD)
Wi-FiWiFi slot x1
Power
Power Consumption121.1 W (on), under 0.5 W (off)
Physical
Dimensions1961.9 x 1172.5 x 79.5 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount800 x 600 mm
Weight65.1 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard IFP63 Series 86-inch 4K Interactive Flat Panel – IFP8663-2C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the difference between the IFP8663-2C and the IFP8663-1C?
The two models share the same 86-inch 4K panel, 50-point touch, ports and software. The IFP8663-2C has 32 GB of RAM, and the IFP8663-1C has 16 GB. Both run Android 15 and include myViewBoard, AirSync, TeamOne and Manager.
Does the IFP8663-2C support pen writing?
Yes. The 50-point PCAP touch supports pen input and palm rejection with passive and active pens. Write Away provides pen-on-paper annotation, and myViewBoard for Android and Windows is included for annotating over content.
What room size suits an 86-inch display?
The manufacturer's specifications do not state a recommended room size. An 86-inch 4K display suits large classrooms and meeting rooms where viewers sit at a distance. Procure.ae can advise on viewing distance for a specific room layout.
How is the IFP8663-2C mounted?
It uses a VESA pattern of 800 x 600 mm for wall mounting. The unit weighs 65.1 kg net, so use a wall mount rated for that load and a professional installation team. Procure.ae provides installation across the UAE.
Can it connect to a laptop and a PC module?
Yes. The front and rear USB-C ports carry DisplayPort 1.2 video with touch, and the OPS slot accepts a PC module. The DisplayPort 1.2 input and two RJ45 ports add further connection options for hybrid rooms.
Can I buy the IFP8663-2C in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
