ViewSonicInteractive Flat PanelsSKU IFP6563-1C

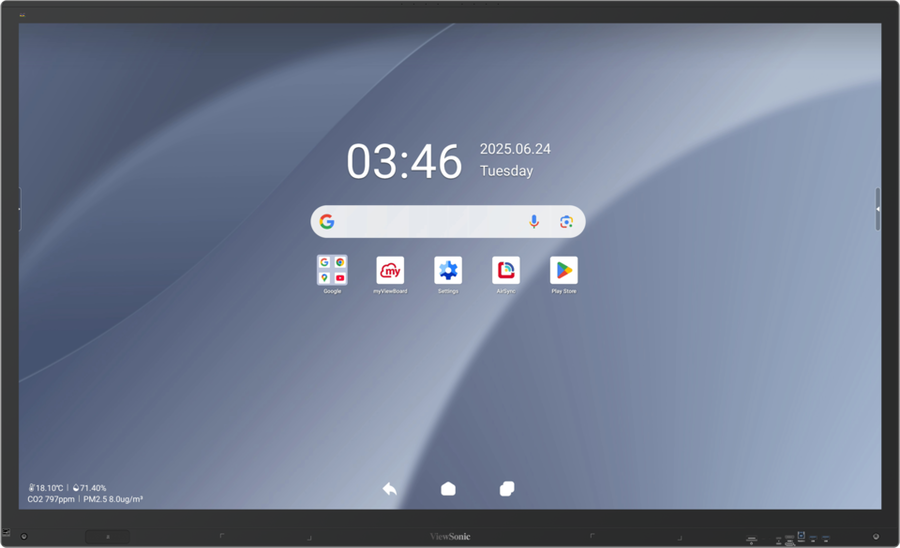

ViewSonic ViewBoard IFP63 Series 65-inch 4K Interactive Flat Panel – IFP6563-1C
The ViewSonic IFP6563-1C is a 65-inch 4K UHD interactive flat panel for enterprise and higher-education rooms. It offers 50-point PCAP touch, pen annotation with Write Away, a 3840 x 2160 resolution and 450 nits typical brightness. Procure.ae supplies the ViewSonic IFP6563-1C across the UAE.
The IFP6563-1C pairs a 65-inch 4K UHD panel with a 5,000:1 contrast ratio, a 6.5 ms response time and 178-degree horizontal and vertical viewing angles. Its PCAP touch recognises 50 touch points on Windows and 50 on Android, with a touch resolution of 32767 x 32767. The pen sensor supports Write Away, so users can annotate with active or passive pens, and palm rejection is included. An octa-core processor, 16 GB of RAM and 128 GB of eMMC storage run the Android 15 platform. Light, PIR motion and environmental sensors adjust brightness and track temperature, humidity, eCO2, VOCs and PM2.5.
The IFP6563-1C suits meeting rooms, lecture spaces and collaboration rooms where one display handles presentations, annotation and hybrid meetings. It supports AirSync wireless presentation, myViewBoard annotation and TeamOne whiteboarding, with remote management through Manager. Compared with the IFP6563-2C, which has 32 GB of RAM, this model has 16 GB. Its ports include two RJ45 Ethernet ports, an OPS slot and a WiFi slot, and the VESA mount is 600 x 400 mm. Procure.ae is an authorised ViewSonic reseller.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
PCAP
- 4K UHD panel
- 50-point PCAP touch
- Write Away annotation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 resolution, 5,000:1 contrast ratio and 450 nits typical brightness.
02
50-point PCAP touch
Touch resolution of 32767 x 32767 on Windows and Android.
03
Write Away annotation
Pen sensor supports pen-on-paper writing with active and passive pens.
04
Octa-core platform
Octa-core CPU, 16 GB RAM and 128 GB eMMC storage.
05
Android 15 with EDLA
EDLA-certified Android 15 platform for app access.
06
Software suite
MyViewBoard, AirSync, TeamOne and Manager for annotation, casting, whiteboarding and device management.
07
Built-in sensors
Light, PIR motion and environmental sensors for temperature, humidity, eCO2, VOCs and PM2.5.
08
Connectivity and ports
Two RJ45 ports, DisplayPort 1.2, three USB-C ports, RS232, an OPS slot and a WiFi slot.
Specifications
32 specificationsGeneral
Key FeaturesWrite Away pen-on-paper annotation, NFC tap-to-sign-in, AirSync wireless casting, TeamOne whiteboarding, Manager device management, PIR and light sensors, environmental sensors, EDLA certified
ModelIFP6563-1C
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness450 nits
Color Depth8-bit + FRC
Contrast Ratio5,000:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
Touch Points50-point multi-touch
Touch Resolution32767 x 32767
Touch TechnologyPCAP
Viewing Angle178° horizontal, 178° vertical
Performance
Operating SystemAndroid 15
ProcessorOcta-core (4x A76 + 4x A55)
RAM16 GB
Storage128 GB eMMC
Audio
DisplayPortDisplayPort 1.2 (3840 x 2160 @ 60 Hz)
Connectivity
Input Voltage100–240 V AC
OPS SlotOPS slot × 1
PortsDisplayPort 1.2 × 1, USB-C × 3, USB 3.2 Gen 1 Type A × 4, USB 2.0 Type A × 1, USB Type B × 3, RJ45 × 2, RS232 × 1, audio in × 1, earphone out × 1
Wi-FiWiFi module slot × 1
Power
Power Consumption88.5 W (on), below 0.5 W (off)
Physical
Dimensions1493.3 x 909.3 x 78.8 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight42.1 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard IFP63 Series 65-inch 4K Interactive Flat Panel – IFP6563-1C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the IFP6563-1C?
It has a 65-inch panel with 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio. The panel uses ADS technology with DLED backlight, 450 nits typical brightness and a 5,000:1 contrast ratio.
Does the IFP6563-1C support pen annotation as well as touch?
Yes. It has 50-point PCAP touch and a pen sensor for Write Away, which supports pen-on-paper annotation. Palm rejection works with both passive and active pens, and myViewBoard for Android and Windows provides the annotation tools.
Is the IFP6563-1C suitable for a large classroom or boardroom?
Yes, for rooms where a 65-inch screen is the main display. The panel has 178-degree horizontal and vertical viewing angles, so people seated at the sides can see content. For rooms that need a larger screen, ViewSonic's 75-inch models are an option.
Can the IFP6563-1C be wall mounted, and what size is the mount?
Yes. It uses a 600 x 400 mm VESA pattern. The unit measures 1493.3 x 909.3 x 78.8 mm and weighs 42.1 kg net, so the wall bracket should be rated for that weight.
Which software and integration options does the IFP6563-1C include?
It includes myViewBoard for Android and Windows, TeamOne for whiteboarding, AirSync for wireless presentation and Manager for remote device management. It also has RS232 control, two RJ45 Ethernet ports, an OPS slot and a WiFi slot.
