ViewSonicInteractive Flat PanelsSKU IFP7541-1

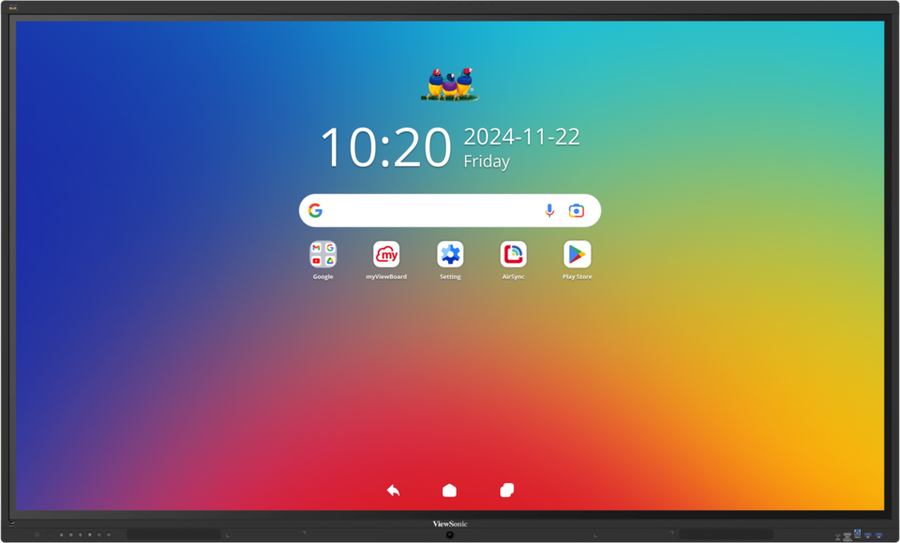

ViewSonic ViewBoard IFP41-1 Series 75-inch 4K Interactive Flat Panel – IFP7541-1
The ViewSonic IFP7541-1, also listed as IFP7541-1-1C, is a 75-inch 4K UHD interactive flat panel for classrooms and meeting rooms. It has 64-point infrared touch, an 8-microphone array, 8 GB of RAM and EDLA-certified Android 16. Procure.ae supplies the ViewSonic IFP7541-1 across the UAE.
The IFP7541-1 has a 75-inch 4K UHD panel at 3840 x 2160 resolution, with 350 nits typical brightness, a 5,000:1 maximum contrast ratio with DCR enabled, a 6.5 ms response time and 178-degree viewing angles. Its infrared Ultra Fine Touch supports up to 64 touch points with palm rejection. An octa-core CPU, 8 GB of RAM and 128 GB of storage run the Android 16 platform. The 8-microphone array, ambient light sensor and PIR motion sensor support automatic brightness and energy saving.
The IFP7541-1 suits classrooms, lecture rooms and meeting rooms. It includes myViewBoard for annotation, AirSync wireless presentation and Manager device management, plus an OPS PC slot and a line-out audio port. Its front USB-C port delivers PD 100 W, compared with 65 W on the IFP7535-1, and the rear USB-C port delivers 15 W. The VESA pattern is 800 x 400 mm. Procure.ae is an authorised ViewSonic reseller.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Touch Technology
Infrared (Ultra Fine Touch)
- 64-point Ultra Fine Touch
- 8-microphone array
- Octa-core with 8 GB RAM
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
64-point Ultra Fine Touch
Infrared touch with palm rejection and 32767 x 32767 touch resolution.
02
8-microphone array
Array of eight microphones included with the display.
03
Octa-core with 8 GB RAM
Octa-core CPU with 8 GB RAM and 128 GB storage.
04
Android 16 with EDLA
EDLA-certified Android 16 with regular security updates.
05
Ambient light and motion sensors
Light and PIR sensors for automatic brightness and energy saving.
06
USB-C with 100 W
Front USB-C port with DP 1.2 and PD 100 W, rear USB-C with PD 15 W.
07
OPS PC slot
OPS slot for a slot-in PC, with 10/100/1000 Mbps LAN sharing.
08

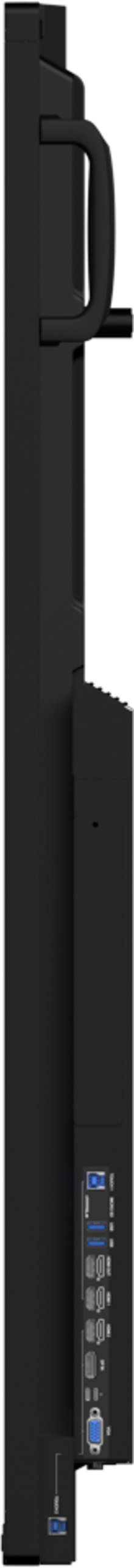

Ports
RGB/VGA, DisplayPort, two RJ45, five USB 3.2 Gen 1 Type A, three USB Type B, two USB-C, line out and microSD.
Specifications
27 specificationsGeneral
Key FeaturesInfrared Ultra Fine Touch with 64 points, 8-microphone array, EDLA-certified Android 16, ambient light and PIR sensors, PD 100 W USB-C, OPS PC slot, AirSync casting, Manager device management
ModelIFP7541-1
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness350 nits (typical)
Contrast Ratio5,000:1 (max., with DCR)
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Touch Points64-point multi-touch
Touch Resolution32767 x 32767
Touch TechnologyInfrared (Ultra Fine Touch)
Viewing Angle178° horizontal, 178° vertical
Performance
Operating SystemAndroid 16
ProcessorOcta-core
RAM8 GB
Storage128 GB
Connectivity
Input Voltage100–240 V AC
OPS SlotOPS PC slot × 1
PortsRGB/VGA × 1, DisplayPort × 1, RJ45 × 2, USB 3.2 Gen 1 Type A × 5, USB Type B × 3, USB-C × 2 (100 W front, 15 W rear), line out × 1, microSD slot × 1, RS232 × 1
Power
Power Consumption92.44 W (on), below 0.5 W (off)
Physical
Dimensions1709.1 x 1030.8 x 87.4 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight45.9 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard IFP41-1 Series 75-inch 4K Interactive Flat Panel – IFP7541-1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size, resolution and brightness of the IFP7541-1?
It is a 75-inch 4K UHD display at 3840 x 2160 resolution in a 16:9 aspect ratio. Brightness is 350 nits typical, contrast is 5,000:1 with DCR enabled and the response time is 6.5 ms.
Does the IFP7541-1 have microphones built in?
Yes. The model includes an 8-microphone array, which is part of this EDLA-certified 75-inch display. For sound output, the display provides a line-out audio port for external speakers or a sound system.
Does the IFP7541-1 support finger and pen writing?
Yes. It has infrared Ultra Fine Touch with up to 64 touch points and palm rejection. myViewBoard for Android provides basic annotation, and myViewBoard for Windows provides Windows annotation. Palm rejection works with both pen types.
Can the IFP7541-1 be wall mounted?
Yes. It uses an 800 x 400 mm VESA pattern and measures 1709.1 x 1030.8 x 87.4 mm. It weighs 45.9 kg net, so the bracket should be rated for that weight and fitted to a solid wall.
Does the IFP7541-1 connect to a PC or slot-in device?
Yes. It has DisplayPort and RGB/VGA inputs, a front USB-C port with DP 1.2 and PD 100 W, and an OPS PC slot. LAN sharing between the panel and a slot-in device runs at 10/100/1000 Mbps.
