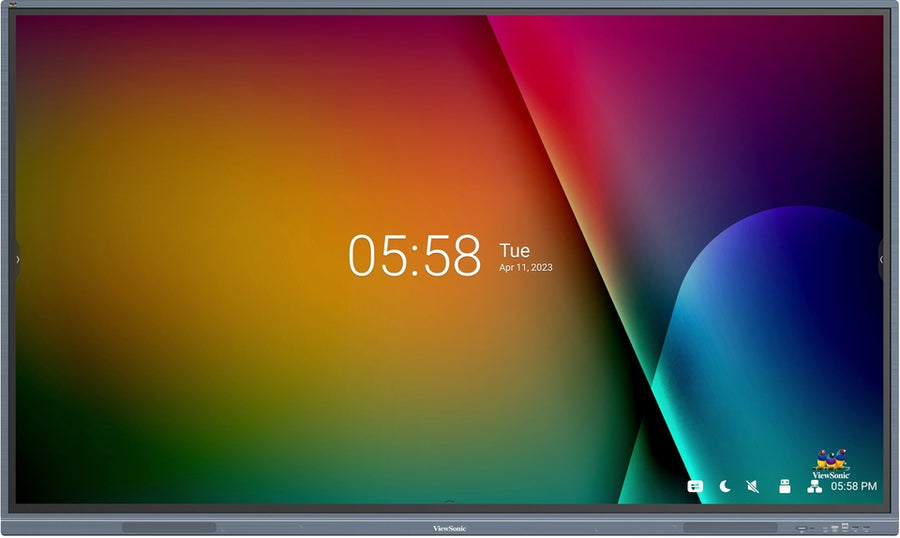

ViewSonic ViewBoard IFP33 Series 75-inch 4K Interactive Flat Panel – IFP7533-G
The ViewSonic IFP7533-G is a 75-inch 4K UHD interactive flat panel for classrooms and collaborative teaching. It has an IPS panel, 40-point Ultra Fine Touch with dual-tip pen support, 8 GB of RAM and 128 GB of storage. Procure.ae supplies the ViewSonic IFP7533-G across the UAE.
The IFP7533-G has a 75-inch 4K UHD IPS panel at 3840 x 2160 resolution, with 400 nits brightness, a 5,000:1 maximum contrast ratio with DCR enabled, an 8 ms response time and 178-degree viewing angles. Ultra Fine Touch Technology supports 40 touch points with fingers or dual-tip pens. The quad-core ARM Cortex-A55 processor has 8 GB of DDR4 RAM and 128 GB of storage. Built-in front-facing speakers, a light sensor and a USB-C port support lessons and multimedia use.
The IFP7533-G suits classrooms, training rooms and lecture spaces where teachers run lessons and IT teams manage devices. It is preinstalled with myViewBoard, and Viewboard Cast supports wireless casting with touch feedback. Compared with the IFP7533, it has 8 GB of RAM and 128 GB of storage instead of 4 GB and 32 GB, and its ports and mounting match. The 800 x 400 mm VESA pattern, two RJ45 ports and USB 3.0 Type A ports connect it to sources. Procure.ae is an authorised ViewSonic reseller.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Ultra Fine Touch
- 75-inch 4K IPS panel
- Ultra Fine Touch
- Memory and storage
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
75-inch 4K IPS panel
3840 x 2160 resolution, 400 nits brightness and 178-degree viewing angles.
02
Ultra Fine Touch
40-point touch that works with fingers or dual-tip pens.
03
Memory and storage
Quad-core ARM Cortex-A55 with 8 GB DDR4 RAM and 128 GB storage.
04
myViewBoard preinstalled
MyViewBoard for lesson delivery and device management tools for administrators.
05
Viewboard Cast
Wireless casting with touch feedback.
06
Front-facing speakers
Built-in speakers for classroom audio, plus a USB-C port for multimedia.
07
Expansion slots
OPS slot for optional Intel standard OPS and WiFi slot for optional modules.
08
Ports
RGB/VGA, RS232, two RJ45, four USB 3.0 Type A, one USB 2.0 Type A, two USB Type B and one USB-C.
Specifications
27 specificationsGeneral
Key FeaturesUltra Fine Touch with 40 points, dual-tip pen support, preinstalled myViewBoard, Viewboard Cast with touch feedback, front-facing speakers, light sensor, USB-C with PD 65 W, 4K IPS panel
ModelIFP7533-G
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits
Contrast Ratio5,000:1 (max., with DCR)
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Points40-point multi-touch
Touch TechnologyUltra Fine Touch
Viewing Angle178° horizontal, 178° vertical
Performance
ProcessorQuad-core ARM Cortex-A55
RAM8 GB
Storage128 GB
Connectivity
Input Voltage100–240 V AC
OPS SlotOPS slot × 1 (optional Intel standard OPS)
PortsRGB/VGA × 1, RS232 × 1, RJ45 × 2, USB 3.0 Type A × 4, USB 2.0 Type A × 1, USB Type B × 2, USB-C × 1, audio in × 1, audio out × 1
Wi-FiWiFi slot × 1 (optional VB-WIFI-002, VB-WIFI-004 or VSB-050)
Power
Power Consumption106 W (on), at most 0.5 W (off)
Physical
Dimensions1709 x 1020 x 88 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight47.3 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard IFP33 Series 75-inch 4K Interactive Flat Panel – IFP7533-G — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size, resolution and panel type of the IFP7533-G?
It is a 75-inch 4K UHD display at 3840 x 2160 resolution with a 16:9 aspect ratio and an IPS panel with DLED backlight. Brightness is 400 nits, contrast is 5,000:1 with DCR enabled and the response time is 8 ms.
How does the IFP7533-G differ from the IFP7533?
The main difference is memory. The IFP7533-G has 8 GB of DDR4 RAM and 128 GB of storage, while the IFP7533 has 4 GB and 32 GB. Both models share the 75-inch IPS panel, 40-point touch and port layout.
Does the IFP7533-G support pen writing and finger touch?
Yes. Ultra Fine Touch Technology supports 40 touch points, and users can write with fingers or dual-tip pens. myViewBoard Whiteboard provides basic annotation, and myViewBoard for Windows runs on an optional Windows slot-in PC.
Can the IFP7533-G be wall mounted?
Yes. It has an 800 x 400 mm VESA pattern and measures 1709 x 1020 x 88 mm. It weighs 47.3 kg net, so the wall bracket should be rated for that load.
Does the IFP7533-G connect to a PC or slot-in device?
Yes. It has RGB/VGA input, a USB-C port with DP 1.2 and PD 65 W, and an OPS slot for an optional Intel standard OPS PC. Simple LAN sharing between the panel and a slot-in device runs at 10/100 Mbps.
Can I buy the IFP7533-G in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
