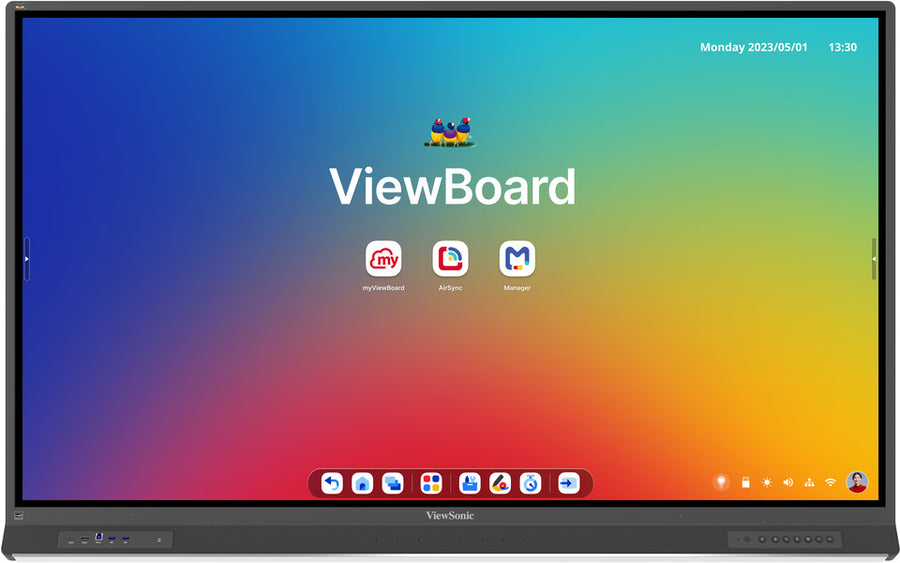

ViewSonicInteractive Flat PanelsSKU IFP8653
ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8653
The ViewSonic ViewBoard IFP8653 is an 86-inch 4K UHD interactive display for classrooms and collaborative teaching. It runs Android 14 with 16 GB RAM and 128 GB storage, offers 40-point Windows touch and 450 nits typical brightness, and supports NFC card sign-in. Procure.ae supplies the IFP8653 across the UAE, with delivery and installation.
The IFP8653 has an 86-inch LCD with 3840 x 2160 resolution and 1.07 billion colors. Brightness is 450 nits typical, with 1,200:1 typical contrast and 5,000:1 minimum with DCR enabled. Ultra Fine Touch supports 40 points on Windows and 20 on Android, with a 32767 x 32767 touch resolution. The octa-core CPU, 16 GB RAM and 128 GB storage run Android 14, and the panel includes light and pen sensors.
The IFP8653 suits classrooms where students sign in with NFC cards and teachers move quickly between lessons. Single sign-on gives access to personalized launchers and cloud storage, and the shortcut sidebar supports quick-start multitasking. AirSync handles wireless presentation, and myViewBoard annotation runs on Android, with Windows software through the VPC slot-in PC. The panel has an OPS module slot and three USB Type-C inputs, including a front port with 100 W power delivery. Compared with the IFP8653-ED, this model is listed without EDLA certification.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits (typical)
Touch Technology
Ultra Fine Touch (UFT)
- 40-point Windows touch
- 4K UHD panel
- Android 14 system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
40-point Windows touch
Ultra Fine Touch with 40 points on Windows and 20 on Android.
02
4K UHD panel
3840 x 2160 at 16:9 with 450 nits typical brightness.
03
Android 14 system
Octa-core CPU, 16 GB RAM and 128 GB of storage.
04
NFC and SSO sign-in
NFC card sign-in and single sign-on for personalized launchers and cloud storage.
05
Shortcut sidebar
Quick-start multitasking and quick annotation with four colors.
06
AirSync wireless presentation
Wireless presentation with AirSync and device management through Manager.
07
Triple USB-C input
Front PD 100 W, rear PD 65 W and rear PD 15 W inputs, with DisplayPort output.
08
Light and pen sensors
Light sensor and pen sensor are both listed as standard.
Specifications
36 specificationsGeneral
ControlsShortcut sidebar, quick-start annotation with four colors
Key FeaturesNFC card sign-in and single sign-on, shortcut sidebar, quick-start annotation, pen sensor, light sensor, AirSync wireless presentation, triple USB-C input, octa-core Android 14
ModelIFP8653
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness450 nits (typical)
Color Depth1.07 billion colors
Contrast Ratio1,200:1 (typical); 5,000:1 (minimum, DCR enabled)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points40-point touch (Windows); 20-point touch (Android)
Touch Resolution32767 x 32767
Touch TechnologyUltra Fine Touch (UFT)
Viewing Angle178° horizontal, 178° vertical
Performance
Operating SystemAndroid 14
ProcessorOcta-core CPU
RAM16 GB
Storage128 GB
Audio
Audio InPC audio in x1
Audio OutEarphone out x1
Connectivity
ConnectivityAirSync wireless presentation, NFC card sign-in, single sign-on
Input Voltage100–240 V AC ±10%
OPS Slot1 OPS module slot
PortsRGB/VGA x1, DisplayPort x1, audio in x1, RS232 x1, OPS module slot x1, earphone out x1, RJ45 x2, USB 3.2 Gen 1 Type-A x4, USB 2.0 Type-A x1, USB 3.2 Gen 1 Type-B x3, USB Type-C x3 input, DP output x1
Serial PortRS232 x1
USB-C Ports3 input ports: front PD 100 W (DP 1.2, Ethernet); rear PD 65 W (DP 1.2, Ethernet); rear PD 15 W
Power
Power Consumption131.53 W (on); under 0.5 W (off)
Physical
Dimensions1952.4 x 1197.2 x 118.4 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface Protection7H hardness, anti-glare coating
VESA Mount800 x 600 mm
Weight63.35 kg (net)
Downloads
Manufacturer documents for the ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8653 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size, resolution and brightness of the ViewSonic IFP8653?
The IFP8653 is an 86-inch panel with 3840 x 2160 (4K UHD) resolution at 16:9. Brightness is 450 nits typical, and contrast is 1,200:1 typical or 5,000:1 minimum with DCR enabled.
Does the IFP8653 run Android 14 and support Windows annotation?
Yes. It runs Android 14 with 16 GB RAM and 128 GB storage, and myViewBoard for Android provides annotation. myViewBoard for Windows is embedded through the VPC slot-in PC, so Windows software runs when a slot-in PC is installed.
How many touch points does the IFP8653 support?
It supports 40 touch points on Windows and 20 on Android using Ultra Fine Touch technology, with a 32767 x 32767 touch resolution. Pen sensing is included, and users can switch between four colors quickly during annotation.
How do users sign in to the IFP8653?
Users can sign in with an NFC card or single sign-on, and both give quick access to personalized launchers and cloud storage. The shortcut sidebar helps teachers start multitasking at the beginning of a lesson.
What mounting and power does the IFP8653 need?
It is VESA-compatible with an 800 x 600 mm wall mount. Its physical size is 1952.4 x 1197.2 x 118.4 mm and net weight is 63.35 kg. Power consumption is 131.53 W on and under 0.5 W off, from 100–240 V AC input.
Can I buy the IFP8653 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
