ViewSonicInteractive Flat PanelsSKU IFP7552-2F

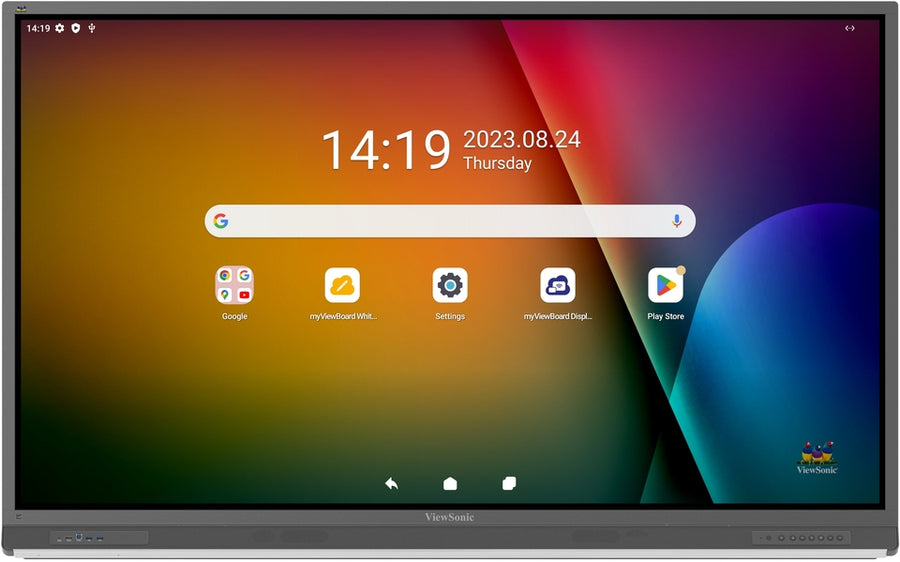

ViewSonic ViewBoard 75-inch 4K Interactive Flat Panel – IFP7552-2F
The ViewSonic IFP7552-2F is a 75-inch 4K UHD interactive flat panel for classrooms and meeting rooms. It runs Android 13 with myViewBoard software, supports 40-point touch on Windows and 8 GB RAM. Procure.ae supplies the ViewSonic IFP7552-2F across the UAE.
The ViewBoard IFP7552-2F is a 75-inch 4K UHD display with a VA panel, 350 nits typical brightness and a 5,000:1 contrast ratio. Its Ultra Fine Touch layer supports 40 points on Windows and 20 points on Android, with a 32767 x 32767 touch resolution. An octa-core processor, 8 GB of RAM and 64 GB of storage run Android 13. The panel is Android Enterprise Device License Agreement (EDLA) certified, and its 7H anti-glare surface resists scratches. Three USB-C ports are fitted, with power delivery of 65 W and 100 W on two of them.
The IFP7552-2F suits classrooms, training rooms and meeting rooms where people annotate on the screen. It runs myViewBoard WhiteBoard for Android, and myViewBoard for Windows is embedded in the VPC. Wireless presentation uses vCast and AirSync. Built-in microphones and a front-facing speaker support remote participants. Its 600 x 400 mm VESA pattern suits wall mounting, and it has an OPS module slot for an optional slot-in device.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Touch Technology
PCAP
- Ultra Fine Touch
- 4K UHD panel
- Android 13 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Fine Touch
UFT touch with 40 points on Windows and 20 points on Android.
02
4K UHD panel
3840 x 2160 resolution, 1.07 billion colors and 178° viewing angles.
03
Android 13 platform
EDLA-certified Android 13 with myViewBoard and Google Play Store access.
04
Triple USB-C
Three USB-C ports, with power delivery of 65 W and 100 W on two of them.
05
Wireless presentation
vCast and AirSync screen casting from devices on the network.
06
Built-in microphones
Integrated microphones and a front-facing speaker for remote participants.
07
OPS module slot
One slot for an optional slot-in device.
08
Light sensor
Built-in light sensor, with 7H anti-glare surface protection.
Specifications
30 specificationsGeneral
Key FeaturesAndroid 13 with myViewBoard, EDLA certified, UFT touch, vCast and AirSync wireless casting, built-in microphones and front speaker, light sensor, 4K UHD
ModelIFP7552-2F
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness350 nits
Color Depth1.07 billion colors
Contrast Ratio5,000:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time7 ms
Screen Size75 inch
Touch Points40-point (Windows) / 20-point (Android) multi-touch
Touch Resolution32767 x 32767
Touch TechnologyPCAP
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 13
ProcessorOcta-core (4 x Cortex-A73 + 4 x Cortex-A53)
RAM8 GB
Storage64 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort × 1, RGB/VGA × 1, RS232 × 1, RJ45 × 2, Audio In × 1, Audio Out × 1, USB-C × 3, USB 3.0 × 7, USB 2.0 × 1
USB-C Ports3 (65 W and 100 W PD on front and rear)
Power
Power Consumption124 W (typical, Energy Star)
Physical
Dimensions1724.96 x 1073.96 x 121.37 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection7H hardness, anti-glare coating
VESA Mount600 x 400 mm
Weight69 kg (net)
Compliance
CertificationsAndroid Enterprise Device License Agreement (EDLA)
Downloads
Manufacturer documents for the ViewSonic ViewBoard 75-inch 4K Interactive Flat Panel – IFP7552-2F — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic IFP7552-2F?
The ViewSonic IFP7552-2F is a 75-inch 4K UHD interactive flat panel with 40-point touch on Windows and 20-point touch on Android. It runs Android 13 and includes myViewBoard annotation software for lessons and meetings.
Does the IFP7552-2F run Android and Windows?
Yes. The panel runs Android 13 natively with myViewBoard WhiteBoard for Android. Windows annotation is available through myViewBoard for Windows, which is embedded in the VPC. The panel also has an OPS module slot for an optional slot-in device, and simple LAN sharing supports connected slot-in devices.
What size room suits a 75-inch interactive display?
A 75-inch panel suits medium to large classrooms and meeting rooms, where students at the back of the room need a clear view. Final choice depends on viewing distance and room layout, which Procure.ae can review with you.
How is the IFP7552-2F mounted?
The panel has a 600 x 400 mm VESA wall-mount pattern and weighs 69 kg net, so use a bracket rated for that load. Confirm the bracket and wall structure before installation, and Procure.ae can advise on installation across the UAE.
Can the IFP7552-2F connect to a laptop and share the screen wirelessly?
Yes. It has DisplayPort, RGB/VGA and three USB-C ports, with one port providing 100 W power delivery. Wireless presentation uses vCast and AirSync, and Simple LAN sharing supports 10/100/1000M connections.
