ViewSonicInteractive Flat PanelsSKU IFP7552-1CF

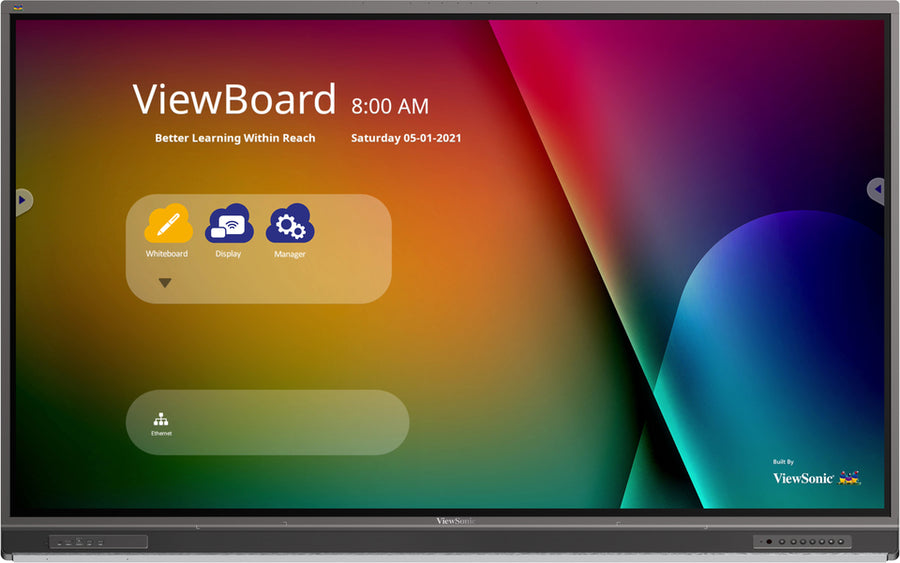

ViewSonic ViewBoard 75-inch 4K Interactive Flat Panel – IFP7552-1CF
The ViewSonic IFP7552-1CF is a 75-inch 4K UHD interactive flat panel for classrooms and collaborative teaching. It has a 10-bit IPS panel, 33-point Ultra Fine Touch on Windows, dual-pen capability and 2 x 15 W front speakers. Procure.ae supplies the ViewSonic IFP7552-1CF across the UAE.
The IFP7552-1CF has a 75-inch 4K UHD IPS panel at 3840 x 2160 resolution, with 10-bit colour, 400 nits typical brightness, a 1,200:1 typical contrast ratio and up to 4,000:1 with DCR enabled, an 8 ms response time and 178-degree viewing angles. Ultra Fine Touch supports 33 points on Windows and 20 on Android, with dual-pen capability and palm awareness. Front-facing speakers provide 2 x 15 W with a 15 W subwoofer. An ARM Cortex-A73 quad-core processor, 8 GB of DDR4 RAM and 64 GB of storage support the system.
The IFP7552-1CF suits classrooms, collaborative learning spaces and meeting rooms. The angled design keeps shortcut keys and I/O ports within easy reach. It has one USB-C port with DP 1.2 and PD 65 W, an 8-microphone array, a browser-based remote management system, and OPS and WiFi module slots. Compared with the IFP7533, it has 10-bit colour and 33-point Windows touch instead of 40 points. Its VESA pattern is 800 x 400 mm. Procure.ae is an authorised ViewSonic reseller.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (typical)
Touch Technology
Ultra Fine Touch
- 10-bit IPS panel
- Ultra Fine Touch
- Dual-pen and palm awareness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
10-bit IPS panel
4K UHD resolution with 400 nits typical brightness and 178-degree viewing angles.
02
Ultra Fine Touch
33 points on Windows and 20 points on Android.
03
Dual-pen and palm awareness
Dual-pen capability and palm awareness for natural writing.
04
Front speakers and subwoofer
2 x 15 W front-facing speakers and a 15 W subwoofer.
05
8-microphone array
Access to the array and any connected visualizer to select the camera and microphone source.
06
Remote management
Browser-based remote management system for IT managers.
07
USB-C with PD 65 W
One USB-C port with DP 1.2, 10/100 Mbps Ethernet and PD 65 W.
08
Expansion
OPS module slot and WiFi module slot, plus RGB/VGA input.
Specifications
30 specificationsGeneral
Key FeaturesDual-pen capability, palm awareness, 10-bit IPS panel, 33-point Windows touch, 8-microphone array, browser-based remote management, USB-C with PD 65 W, 2 x 15 W speakers with subwoofer
ModelIFP7552-1CF
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits (typical)
Color Depth10-bit
Contrast Ratio1,200:1 (typical), 4,000:1 (max., with DCR)
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Points33-point multi-touch (Windows), 20-point (Android)
Touch Resolution32767 x 32767
Touch TechnologyUltra Fine Touch
Viewing Angle178° horizontal, 178° vertical
Performance
ProcessorARM Cortex-A73 × 4 (1.8 GHz)
RAM8 GB
Storage64 GB
Audio
Speaker Configuration2 × 15 W front-facing speakers, 15 W subwoofer
Connectivity
Input Voltage100–240 V AC
OPS SlotOPS module slot × 1
PortsRGB/VGA × 1, RS232 × 1, RJ45 × 1 in and × 1 out (10/100/1000 Mbps), USB 2.0 Type A × 3, USB 3.0 Type A × 2, USB Type B × 3, USB-C × 1 (DP 1.2, PD 65 W), audio in × 1, earphone out × 1
Wi-FiWiFi module slot × 1
Power
Power Consumption233.5 W (typical), below 0.5 W (off)
Physical
Dimensions1709 x 1071 x 120 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight55.25 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard 75-inch 4K Interactive Flat Panel – IFP7552-1CF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size, resolution and colour depth of the IFP7552-1CF?
It is a 75-inch 4K UHD display at 3840 x 2160 resolution with a 16:9 aspect ratio, an IPS panel and 10-bit colour. Brightness is 400 nits typical and the response time is 8 ms.
Does the IFP7552-1CF support pen writing and touch?
Yes. It has Ultra Fine Touch with 33 points on Windows and 20 on Android, plus dual-pen capability and palm awareness. myViewBoard WhiteBoard runs on Android and Windows for annotation.
Can the IFP7552-1CF be used for hybrid teaching?
Yes. An 8-microphone array and a connected visualizer let users select the camera and microphone source for distance or hybrid lessons. The USB-C port with DP 1.2 and Ethernet supports a PC connection.
How is the IFP7552-1CF mounted?
It uses an 800 x 400 mm VESA pattern. The display measures 1709 x 1071 x 120 mm and weighs 55.25 kg net, so the bracket must be rated for that weight and fitted to a solid wall.
Can the IFP7552-1CF take an OPS or WiFi module?
Yes. It has an OPS module slot and a WiFi module slot. Simple LAN sharing between the panel and a slot-in device runs at 10/100/1000 Mbps through its RJ45 ports.
