ViewSonicInteractive Flat PanelsSKU 7550-5

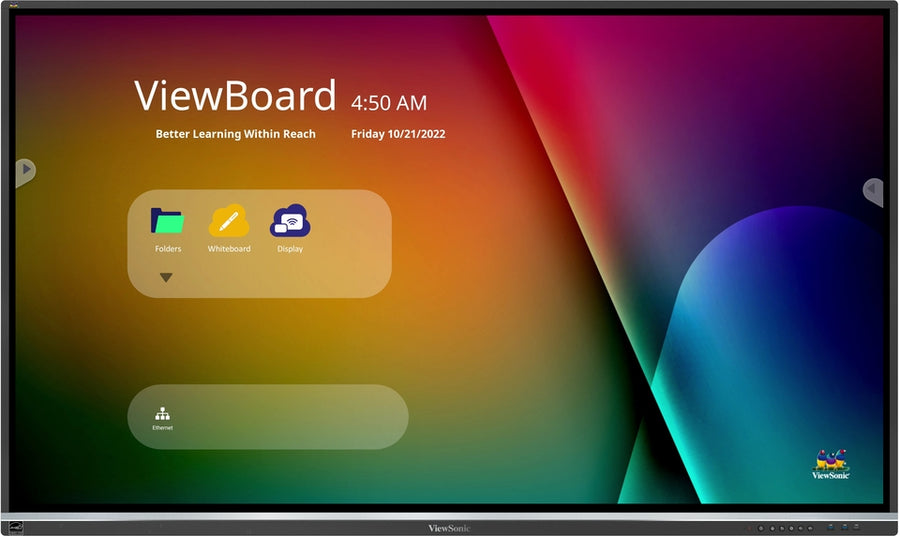

ViewSonic ViewBoard 75-inch 4K Interactive Flat Panel – 7550-5
The ViewSonic ViewBoard 7550-5 is a 75-inch 4K UHD interactive flat panel for classrooms, lecture halls and meeting rooms. It has a 3840 x 2160 IPS panel, 40-point touch on Windows and 20-point touch on Android, and single-cable USB-C connectivity. Procure.ae supplies the ViewBoard 7550-5 across the UAE.
The 7550-5 uses a 75-inch IPS panel with 3840 x 2160 resolution, 1.07 billion colours (10-bit), 350 nits typical brightness and 1,200:1 typical contrast, rising to 5,000:1 with dynamic contrast. Its 8 ms response time and 178-degree viewing angles suit large classrooms and meeting rooms. Ultra Fine Touch infrared recognition supports 40-point touch on Windows and 20-point touch on Android, with a 32768 x 32768 touch resolution. The Android unit uses an ARM Cortex-A73 and Cortex-A53 processor setup with 4 GB RAM and 32 GB storage.
The panel integrates with myViewBoard annotation software, with basic annotation on Android and pro annotation on Windows through an embedded slot-in PC. Wireless presentation options are vCast, the myViewBoard Display App and AirSync, and simple LAN sharing links the panel and its slot-in device. The USB-C port provides DisplayPort 1.2, USB 2.0, Ethernet and 65 W Power Delivery. The panel measures 1709 x 1020 x 86 mm, weighs 53.4 kg and uses an 800 x 400 mm VESA pattern.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Touch Technology
Infrared
- Ultra Fine Touch
- 4K UHD IPS panel
- Brightness and contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Fine Touch
40-point touch on Windows and 20-point touch on Android with infrared recognition.
02
4K UHD IPS panel
3840 x 2160 resolution with 10-bit colour and 1.07 billion colours.
03
Brightness and contrast
350 nits typical brightness, 1,200:1 typical and 5,000:1 DCR contrast ratio.
04
Single-cable USB-C
one port carries DP 1.2, USB 2.0, Ethernet 100M and 65 W Power Delivery.
05
myViewBoard software
basic annotation on Android and pro annotation on Windows via a slot-in PC.
06
Wireless presentation
vCast, myViewBoard Display App and AirSync options.
07
Simple LAN sharing
links the panel and its slot-in device over the network.
08
Built-in light sensor
a light sensor is fitted to the panel.
Specifications
37 specificationsGeneral
Key FeaturesUltra Fine Touch infrared recognition, single-cable USB-C, myViewBoard annotation software, vCast, myViewBoard Display App and AirSync wireless presentation, simple LAN sharing, light sensor
Model7550-5
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Blue Light FilterIntegrated, TÜV certified
Brightness350 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio1,200:1 (typ.), 5,000:1 (DCR)
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Points40-point touch (Windows), 20-point touch (Android)
Touch Resolution32768 x 32768
Touch TechnologyInfrared
Viewing Angle178° horizontal, 178° vertical
Performance
ProcessorARM Cortex-A73 ×4 + Cortex-A53 ×4
RAM4 GB
Storage32 GB
Audio
Audio OutEarphone out × 1
Connectivity
EthernetRJ45 × 2
Input Voltage100–240 V AC ±10%
OPS SlotOPS slot × 1
Serial PortRS232 × 1
Touch USB PortsUSB Type B × 2
USB PortsUSB 3.0 × 4, USB 2.0 × 2
USB-C PortsUSB-C × 1 (DP 1.2, USB 2.0, PD 65 W, Ethernet 100M)
Wi-FiWiFi module slot × 1
Power
Power Consumption135 W (typical)
Standby Power0.5 W
Physical
Dimensions1709 x 1020 x 86 mm
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection7H hardness, anti-glare coating
VESA Mount800 x 400 mm
Weight53.4 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard 75-inch 4K Interactive Flat Panel – 7550-5 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the ViewBoard 7550-5 a 4K display?
Yes. The ViewBoard 7550-5 has a 75-inch IPS panel with 3840 x 2160 (4K UHD) resolution, a 16:9 aspect ratio and 10-bit colour. Typical brightness is 350 nits and typical contrast is 1,200:1.
Does the ViewBoard 7550-5 support multi-touch?
Yes. It supports 40-point touch on Windows and 20-point touch on Android, using Ultra Fine Touch infrared recognition with a 32768 x 32768 touch resolution. Two USB Type B ports are provided for touch.
What mounting does the ViewBoard 7550-5 need?
The panel uses an 800 x 400 mm VESA wall-mount pattern and measures 1709 x 1020 x 86 mm. It weighs 53.4 kg, so the wall bracket or stand must be rated for that weight. Procure.ae can recommend a suitable mount.
Can the ViewBoard 7550-5 connect to a laptop with one cable?
Yes. The USB-C port provides DisplayPort 1.2, USB 2.0, Ethernet 100M and 65 W Power Delivery over a single cable, according to the manufacturer. Procure.ae can confirm the cable setup for your devices.
Does the ViewBoard 7550-5 include annotation software?
Yes. It includes myViewBoard basic annotation software on Android, and myViewBoard pro annotation software for Windows, which runs in an embedded slot-in PC. The manufacturer also lists AirSync for wireless presentation.
Can I buy the ViewBoard 7550-5 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
