ViewSonicInteractive Flat PanelsSKU IFP7553-ED

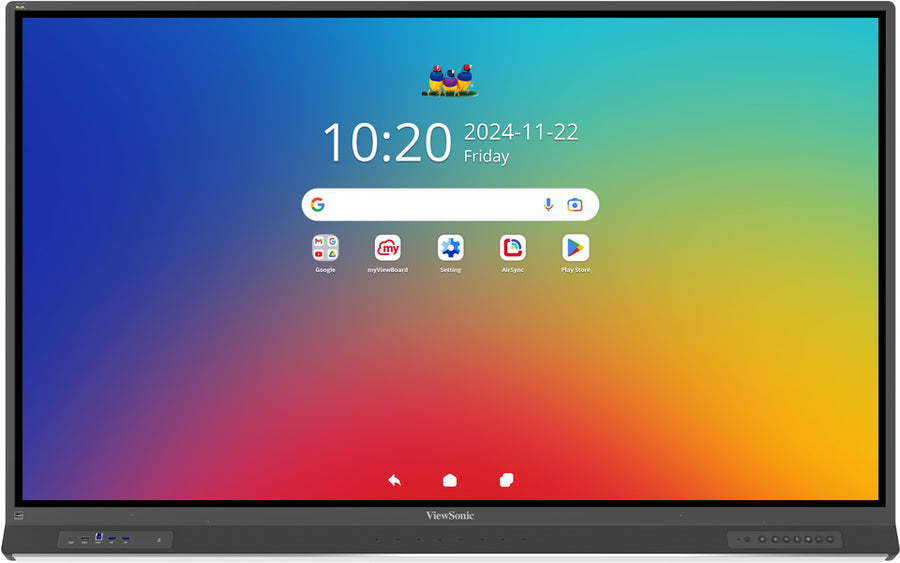

ViewSonic ViewBoard 75-inch 4K EDLA Interactive Flat Panel – IFP7553-ED
The ViewSonic IFP7553-ED is a 75-inch 4K UHD interactive display certified under the Android Enterprise Device License Agreement (EDLA). It offers instant writing with quick color switching, 16 GB RAM and Android 14. Procure.ae supplies the ViewSonic IFP7553-ED across the UAE.
The ViewBoard IFP7553-ED is a 75-inch 4K UHD display with a DLED-backlit TFT LCD panel and 450 nits typical brightness. It uses Ultra Fine Touch, with 40 points on Windows and 20 points on Android, and a 6.5 ms response time. An octa-core processor, 16 GB of RAM and 128 GB of storage run Android 14. The panel is EDLA certified and offers instant writing with quick color switching. NFC sign-in and single sign-on give quick access to personalized launchers and cloud storage.
The IFP7553-ED is built for classrooms and collaborative spaces that rely on pen annotation. Quick-start annotation lets users capture ideas as they arise, and four pen colors can be switched rapidly. myViewBoard for Android and myViewBoard for Windows, embedded in the VPC, handle lesson delivery and whiteboarding. AirSync supports wireless presentation. The IFP7553-ED shares its size, specifications and port layout with the IFP7553.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Ultra Fine Touch (UFT)
- Instant writing
- EDLA certification
- Ultra Fine Touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Instant writing
Quick annotation with rapid switching between four colors.
02
EDLA certification
Android Enterprise Device License Agreement certified.
03
Ultra Fine Touch
40-point touch on Windows and 20-point touch on Android.
04
Android 14 platform
Octa-core processor with 16 GB RAM and 128 GB storage.
05
NFC sign-in
NFC card sign-in and single sign-on for personal launchers.
06
AirSync casting
Wireless presentation with AirSync and Manager device management.
07
Power delivery USB-C
Front and rear USB-C ports with power delivery up to 100 W.
08
VESA mounting
800 x 400 mm VESA wall-mount pattern.
Specifications
29 specificationsGeneral
Key FeaturesEDLA certified, Android 14 with myViewBoard, instant writing with quick color switching, NFC sign-in, AirSync wireless casting, 16 GB RAM, 128 GB storage, 4K UHD
ModelIFP7553-ED
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness450 nits
Color Depth1.07 billion colors
Contrast Ratio5,500:1
Panel TechnologyTFT LCD with DLED backlight
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Touch Points40-point (Windows) / 20-point (Android) multi-touch
Touch Resolution32767 x 32767
Touch TechnologyUltra Fine Touch (UFT)
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorOcta-core
RAM16 GB
Storage128 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort × 1, RGB/VGA × 1, RS232 × 1, RJ45 × 2, Audio In × 1, Audio Out × 1, USB-C × 3, USB 3.2 Gen 1 × 7, USB 2.0 × 1
USB-C Ports3 (PD 100 W, PD 65 W and PD 15 W)
Power
Power Consumption101.77 W (on), below 0.5 W (off)
Physical
Dimensions1707 x 1059.2 x 118.4 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection7H hardness, anti-glare coating
VESA Mount800 x 400 mm
Weight51.7 kg (net)
Downloads
Manufacturer documents for the ViewSonic ViewBoard 75-inch 4K EDLA Interactive Flat Panel – IFP7553-ED — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic IFP7553-ED?
The IFP7553-ED is a 75-inch 4K UHD ViewBoard interactive display from the IFP53 Series. It is EDLA certified, runs Android 14 and includes myViewBoard annotation software, with 16 GB of RAM and 128 GB of storage.
What does EDLA certification mean for the IFP7553-ED?
EDLA stands for the Android Enterprise Device License Agreement. The IFP7553-ED is certified under it and runs Android 14. The panel also includes NFC sign-in and single sign-on for shared classroom use.
Can the IFP7553-ED be used for instant writing?
Yes. The IFP7553-ED is built for quick annotation, and you can switch between four pen colors rapidly. Pen sensing supports natural pen-on-paper writing, and quick-start annotation captures ideas as they arise during lessons and meetings.
What room size suits a 75-inch interactive display?
A 75-inch panel suits classrooms and meeting rooms where viewers sit several metres from the screen. Procure.ae can review the room layout and viewing distance before you choose the size.
How is the IFP7553-ED mounted?
The panel uses an 800 x 400 mm VESA wall-mount pattern and weighs 51.7 kg net. Use a bracket rated for that weight and confirm the wall structure before installation.
Can I buy the IFP7553-ED in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
