ViewSonicInteractive Flat PanelsSKU IFP6553

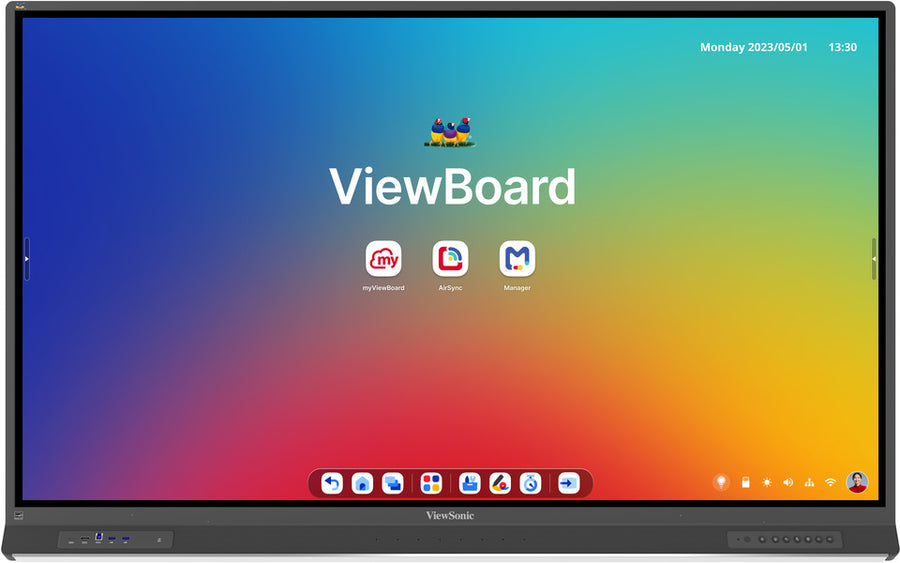

ViewSonic ViewBoard 65-inch 4K Interactive Flat Panel – IFP6553
The ViewSonic ViewBoard IFP6553 is a 65-inch 4K UHD interactive flat panel for classrooms, running Android 14 with 450 nits typical brightness and 128 GB storage. It has 40-point touch on Windows, NFC card sign-in and three USB-C ports. Procure.ae supplies the IFP6553 across the UAE.
The panel delivers 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio, with 1.07 billion colours, 450 nits typical brightness and a 5,000:1 typical contrast ratio, with 5,000:1 minimum with DCR enabled. The response time is 6.5 ms. UFT (Ultra Fine Touch) technology supports 40 touch points on Windows and 20 on Android, on a 7H anti-glare surface. An octa-core CPU, 8 GB of physical RAM plus 8 GB of virtual RAM and 128 GB of storage run the built-in software.
The IFP6553 suits classrooms and meeting rooms where several people share one display. SSO and NFC card sign-in open personalised launchers and cloud storage, and the four-colour quick-switch annotation supports fast writing during lessons. Its three USB-C ports include a front port with 100 W power delivery and DisplayPort 1.2, and a rear port with 65 W power delivery. The panel also has RGB/VGA, DisplayPort, RS232, an OPS module slot and two RJ45 ports. It mounts on a 600 x 400 mm VESA pattern.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits (typical)
Touch Technology
UFT (Ultra Fine Touch)
- 4K UHD panel
- 40-point touch
- Android 14 system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 resolution, 450 nits typical brightness and 1.07 billion colours.
02
40-point touch
UFT (Ultra Fine Touch) technology with 40 touch points on Windows and 20 on Android.
03
Android 14 system
Octa-core CPU with access to the Google Play Store, with Android 14 as the operating system.
04
NFC and SSO sign-in
NFC card reader and single sign-on for quick access to personalised launchers and cloud storage.
05
Quick annotation
Quick-start annotation with four colours that switch rapidly.
06
Software
myViewBoard for Android for annotation, with vCast wireless casting and device management.
07
Memory and storage
8 GB physical RAM plus 8 GB virtual RAM, and 128 GB storage.
08
Expansion and connectivity
OPS module slot, three USB-C ports (100 W, 65 W and 15 W power delivery) and two RJ45 ports.
Specifications
32 specificationsGeneral
Key FeaturesUFT touch, 40-point touch on Windows, Android 14, NFC reader, SSO sign-in, pen sensor, light sensor, vCast and AirSync wireless casting, device management
ModelIFP6553
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness450 nits (typical)
Color Depth1.07 billion colours
Contrast Ratio5,000:1 (typical); 5,000:1 (minimum, DCR enabled)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
Touch Points40-point touch (Windows), 20-point touch (Android)
Touch Resolution32767 x 32767
Touch TechnologyUFT (Ultra Fine Touch)
Viewing Angle178° horizontal / 178° vertical (typical)
Performance
Operating SystemAndroid 14
ProcessorOcta-core (A73 x 4 + A53 x 4)
RAM8 GB physical + 8 GB virtual
Storage128 GB
Connectivity
Input Voltage100–240 V AC ±10%
OPS Slot1 module slot
PortsRGB/VGA x1, DisplayPort x1, RS232 x1, RJ45 x2, Audio in x1 (PC audio), Audio out x1 (earphone)
USB PortsUSB 3.2 Gen 1 Type A x4 (front x2, rear x2), USB 2.0 Type A x1 (rear), USB 3.2 Gen 1 Type B x3 (front x1, rear x2)
USB-C Ports3 inputs (front: 100 W power delivery, DisplayPort 1.2; rear: 65 W power delivery, DisplayPort 1.2; rear: 15 W power delivery) and 1 DisplayPort output
Power
Power Consumption85.68 W (on), less than 0.5 W (off)
Physical
Dimensions1485.7 x 934.6 x 118 mm (W x H x D)
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection7H anti-glare
VESA Mount600 x 400 mm
Weight39 kg (net)
Downloads
Manufacturer documents for the ViewSonic ViewBoard 65-inch 4K Interactive Flat Panel – IFP6553 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the ViewSonic IFP6553?
The IFP6553 has a 65-inch panel with 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio. It has 450 nits typical brightness, a 5,000:1 typical contrast ratio and a 6.5 ms response time.
Does the IFP6553 support NFC card sign-in?
Yes. The IFP6553 has an NFC reader and single sign-on, which give quick access to personalised launchers and cloud storage. The manufacturer also lists a pen sensor for pen input.
Which operating system does the IFP6553 use?
The manufacturer describes the IFP6553 as running Android 14 with access to the Google Play Store. It also lists myViewBoard for Windows as an embedded option in the OPS slot.
How is the IFP6553 mounted?
The IFP6553 mounts to a wall on a 600 x 400 mm VESA pattern. The physical size is 1485.7 x 934.6 x 118 mm and the net weight is 39 kg, so confirm the wall structure and bracket rating before installation. Procure.ae provides installation across the UAE and MEA.
Can I connect a laptop or PC to the IFP6553?
Yes. The front USB-C port carries DisplayPort 1.2 video and 100 W power delivery, and the panel also has RGB/VGA and DisplayPort inputs. The manufacturer's specifications do not list an HDMI input for this model.
