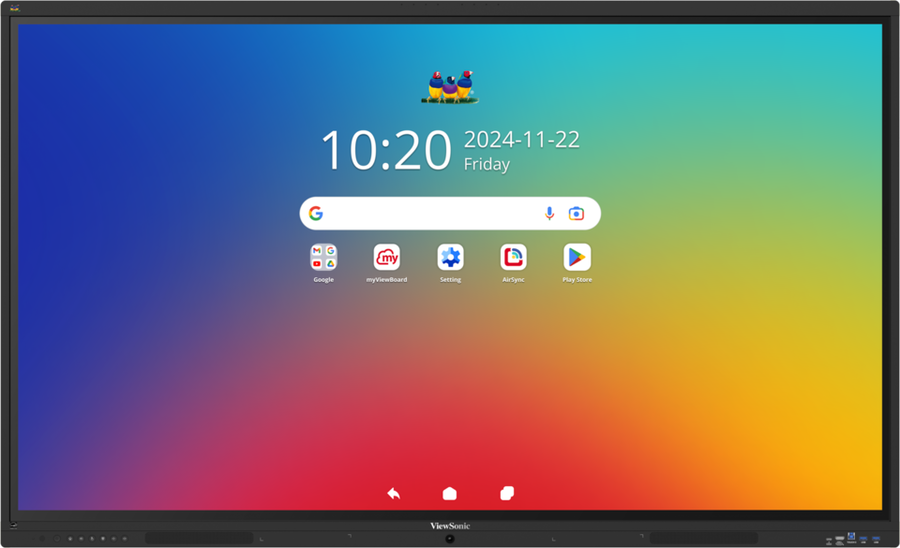

ViewSonic ViewBoard 65-inch 4K Interactive Flat Panel – IFP6541-1
The ViewSonic ViewBoard IFP6541-1 is a 65-inch 4K UHD interactive flat panel for classrooms, certified under the Enterprise Device Licensing Agreement (EDLA) and running Android 16. It offers up to 64-point touch, an 8-microphone array and PIR and light sensors. Procure.ae supplies the IFP6541-1 across the UAE.
The panel delivers 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio, with 1.07 billion colours, 350 nits typical brightness and a 5,000:1 maximum contrast ratio with DCR enabled. The response time is 6.5 ms. Ultra Fine Touch with IR recognition supports up to 64 touch points, palm rejection and a 9H anti-glare surface. An octa-core CPU, 8 GB RAM and 128 GB of storage run the built-in software. The manufacturer lists the model under the alternate code IFP6541-1-1C.
The IFP6541-1 suits classrooms and higher education rooms that combine whiteboarding with wireless casting and device management. The panel has a built-in 8-microphone array and a line-out audio port. Ambient light and PIR motion sensors adjust brightness and save energy. Its ports include RGB/VGA, DisplayPort, RS232, a microSD slot, two RJ45 ports, five USB Type A ports, three USB Type B touch ports and two USB-C ports, one with 100 W power delivery at the front. The panel mounts on a 600 x 400 mm VESA pattern.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Touch Technology
Ultra Fine Touch (IR recognition)
- 65-inch 4K UHD panel
- 64-point touch
- EDLA-certified Android 16
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
65-inch 4K UHD panel
3840 x 2160 resolution, 350 nits typical brightness and 6.5 ms response time.
02
64-point touch
Ultra Fine Touch with IR recognition, palm rejection and up to 64 touch points.
03
EDLA-certified Android 16
Google Play Store access for educational and productivity apps.
04
8-microphone array
Built-in microphone array for capturing speech in the room.
05
Education software
myViewBoard for Android for annotation, with AirSync wireless presentation.
06
Energy sensing
Light sensor and PIR motion sensor for automatic brightness control.
07
Octa-core processing
Octa-core CPU, 8 GB RAM and 128 GB storage.
08
USB-C connectivity
Front USB-C port with 100 W power delivery and DisplayPort 1.2, plus a PC slot for an OPS module.
Specifications
34 specificationsGeneral
Key FeaturesUltra Fine Touch with IR, 64-point touch, 8-microphone array, Android 16, EDLA certified, ambient light and PIR sensors, AirSync, 100 W USB-C
ModelIFP6541-1
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness350 nits (typical)
Color Depth1.07 billion colours
Contrast Ratio5,000:1 (maximum, DCR enabled)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
Touch PointsUp to 64-point touch
Touch Resolution32767 x 32767
Touch TechnologyUltra Fine Touch (IR recognition)
Viewing Angle178° horizontal / 178° vertical (typical)
Performance
Operating SystemAndroid 16 (EDLA certified)
ProcessorOcta-core
RAM8 GB
Storage128 GB
Audio
Microphone8-microphone array
Connectivity
Input Voltage100–240 V AC ±10%
OPS Slot1 PC slot
PortsRGB/VGA x1, DisplayPort x1, RS232 x1, microSD x1, RJ45 x2, Audio x1 (line out)
USB PortsUSB Type A x5 (front x2, rear x2 USB 3.2 Gen 1; rear x1 USB 2.0), USB Type B x3
USB-C Ports2 (front: 100 W power delivery, DisplayPort 1.2; rear: 15 W power delivery, DisplayPort 1.2)
Power
Power Consumption69.56 W (typical, on), less than 0.5 W (off)
Physical
Dimensions1488.3 x 907.2 x 88.1 mm (W x H x D)
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection9H anti-glare
VESA Mount600 x 400 mm
Weight34.4 kg (net)
Compliance
CertificationsEnterprise Device Licensing Agreement (EDLA) certified
Downloads
Manufacturer documents for the ViewSonic ViewBoard 65-inch 4K Interactive Flat Panel – IFP6541-1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the ViewSonic IFP6541-1?
The IFP6541-1 has a 65-inch panel with 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio. It has 350 nits typical brightness, a 5,000:1 maximum contrast ratio with DCR enabled and a 6.5 ms response time.
Which operating system does the IFP6541-1 use?
The IFP6541-1 runs EDLA-certified Android 16, which gives access to the Google Play Store. The manufacturer also lists myViewBoard for Windows as embedded in the PC slot, so Windows software is available through the slot for this model.
Does the IFP6541-1 have a built-in microphone?
Yes. The IFP6541-1 has a built-in 8-microphone array, and the manufacturer lists a line-out audio port for external audio. Its 64-point touch surface supports pen and finger input for teaching and collaboration.
How is the IFP6541-1 mounted?
The IFP6541-1 mounts to a wall on a 600 x 400 mm VESA pattern. The physical size is 1488.3 x 907.2 x 88.1 mm and the net weight is 34.4 kg, so confirm the wall structure and bracket rating before installation. Procure.ae provides installation across the UAE and MEA.
Can I connect a laptop or PC to the IFP6541-1?
Yes. The front USB-C port carries DisplayPort 1.2 video, data and 100 W power delivery, and the panel also has RGB/VGA and DisplayPort inputs. The manufacturer's specifications do not list an HDMI input for this model.
