ViewSonicInteractive Flat PanelsSKU IFP6535-1
ViewSonic ViewBoard 65-inch 4K Interactive Flat Panel – IFP6535-1
The ViewSonic ViewBoard IFP6535-1 is a 65-inch 4K UHD interactive flat panel for classrooms, certified under the Enterprise Device Licensing Agreement (EDLA) and running Android 16. It offers up to 64-point touch, an octa-core CPU and a PIR motion sensor for energy saving. Procure.ae supplies the IFP6535-1 across the UAE.
The panel delivers 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio, with 1.07 billion colours (8-bit + FRC), 350 nits typical brightness and a 5,000:1 maximum contrast ratio with DCR enabled. The response time is 6.5 ms. Ultra Fine Touch with IR recognition supports up to 64 touch points, palm rejection and a 9H anti-glare surface. An octa-core CPU with 8 GB RAM and 64 GB or 128 GB of storage runs the built-in software.
The IFP6535-1 suits classrooms and higher education rooms that use Android apps from Google Play alongside whiteboarding and wireless casting. Built-in ambient light and PIR motion sensors adjust brightness and conserve energy. Its ports include RGB/VGA, DisplayPort, RS232, a microSD slot, two RJ45 ports, five USB Type A ports and two USB-C ports, one with 65 W power delivery at the front. The panel mounts on a 600 x 400 mm VESA pattern. The manufacturer lists it under the alternate code IFP6535-1-1C.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Touch Technology
Ultra Fine Touch (IR recognition)
- 65-inch 4K UHD panel
- 64-point touch
- EDLA-certified Android 16
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
65-inch 4K UHD panel
3840 x 2160 resolution, 350 nits typical brightness and 6.5 ms response time.
02
64-point touch
Ultra Fine Touch with IR recognition, palm rejection and up to 64 touch points.
03
EDLA-certified Android 16
Google Play Store access for educational and productivity apps.
04
Education software
myViewBoard for Android for annotation, with AirSync wireless presentation.
05
Octa-core processing
CPU with four A72 cores at up to 2.2 GHz and four A53 cores at up to 1.8 GHz, 8 GB RAM.
06
Energy sensing
Light sensor and PIR motion sensor for automatic brightness control.
07
Storage
64 GB or 128 GB storage, depending on configuration.
08
Connectivity
Front USB-C port with 65 W power delivery and DisplayPort 1.2, plus a PC slot.
Specifications
33 specificationsGeneral
Key FeaturesUltra Fine Touch with IR, 64-point touch, Android 16, EDLA certified, ambient light and PIR sensors, AirSync, ViewBoard device management, octa-core CPU
ModelIFP6535-1
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness350 nits (typical)
Color Depth1.07 billion colours (8-bit + FRC)
Contrast Ratio5,000:1 (maximum, DCR enabled)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
Touch PointsUp to 64-point touch
Touch Resolution32767 x 32767
Touch TechnologyUltra Fine Touch (IR recognition)
Viewing Angle178° horizontal / 178° vertical (typical)
Performance
Operating SystemAndroid 16 (EDLA certified)
ProcessorOcta-core (A72 x 4 + A53 x 4, up to 2.2/1.8 GHz)
RAM8 GB
Storage64 GB / 128 GB
Connectivity
Input Voltage100–240 V AC ±10%
OPS Slot1 PC slot

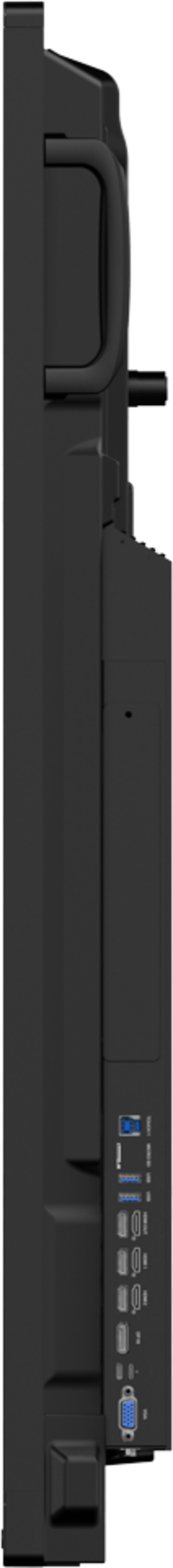

PortsRGB/VGA x1, DisplayPort x1, RS232 x1, microSD x1, RJ45 x2, Audio x1 (line out)
USB PortsUSB Type A x5 (front x2, rear x2 USB 3.2 Gen 1; rear x1 USB 2.0), USB Type B x2
USB-C Ports2 (front: 65 W power delivery, DisplayPort 1.2; rear: 15 W power delivery, DisplayPort 1.2)
Power
Power Consumption69.56 W (on), less than 0.5 W (off)
Physical
Dimensions1488 x 896.3 x 98 mm (W x H x D)
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection9H anti-glare
VESA Mount600 x 400 mm
Weight28.7 kg (net)
Compliance
CertificationsEnterprise Device Licensing Agreement (EDLA) certified
Downloads
Manufacturer documents for the ViewSonic ViewBoard 65-inch 4K Interactive Flat Panel – IFP6535-1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the ViewSonic IFP6535-1?
The IFP6535-1 has a 65-inch panel with 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio. It has 350 nits typical brightness, a 5,000:1 maximum contrast ratio with DCR enabled and a 6.5 ms response time.
Which operating system does the IFP6535-1 use?
The IFP6535-1 runs EDLA-certified Android 16, which gives access to the Google Play Store. The manufacturer also lists myViewBoard for Windows as an embedded option in the optional PC slot.
Is the IFP6535-1 suitable for a classroom?
Yes. It has up to 64-point touch with palm rejection, myViewBoard annotation software, AirSync wireless casting and device management, so teachers can run lessons and IT teams can manage classroom displays.
How is the IFP6535-1 mounted?
The IFP6535-1 mounts to a wall on a 600 mm x 400 mm VESA pattern. The physical size is 1488 x 896.3 x 98 mm and the net weight is 28.7 kg, so confirm the wall structure and bracket rating before installation. Procure.ae provides installation across the UAE and MEA.
Can I connect a laptop or PC to the IFP6535-1?
Yes. The front USB-C port carries DisplayPort 1.2 video, data and 65 W power delivery, and the panel also has RGB/VGA and DisplayPort inputs. The manufacturer's specifications do not list an HDMI input for this model.
