ViewSonicInteractive Flat PanelsSKU 6552-1C

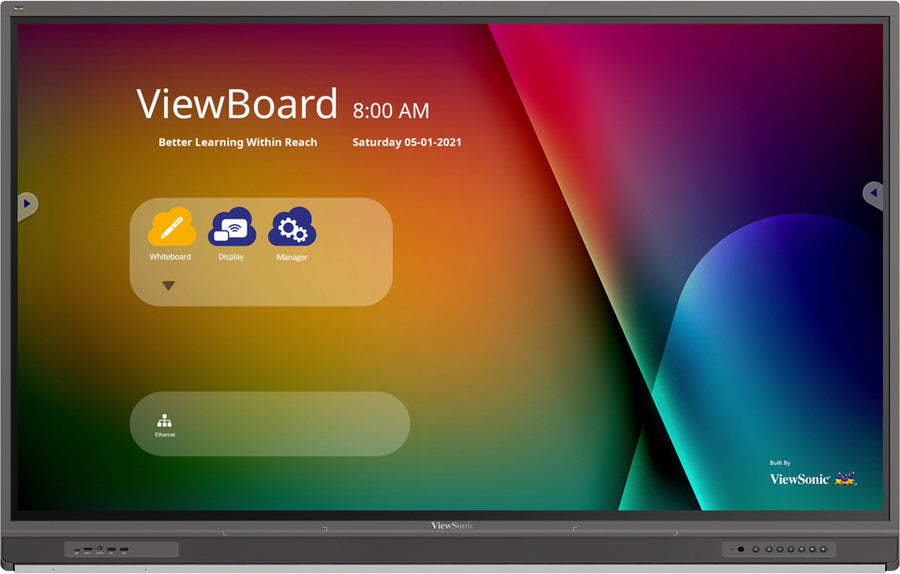

ViewSonic ViewBoard 65-inch 4K Interactive Flat Panel – 6552-1C
The ViewSonic ViewBoard 6552-1C is a 65-inch 4K UHD interactive whiteboard for classrooms and collaborative spaces. It has a 400-nit IPS panel, dual-pen writing with 33-point Windows touch, and an 8-mic array for hybrid lessons. Procure.ae supplies the ViewBoard 6552-1C across the UAE.
The 6552-1C is a 65-inch 4K UHD panel with 3840 x 2160 resolution, 400 nits typical brightness and 1,200:1 typical contrast, rising to 3,000:1 with DCR enabled. It offers 10-bit colour, an 8 ms response time, 178-degree viewing angles and a 9H anti-glare surface. Dual-pen capability and palm awareness support natural writing, and Ultra Fine Touch provides 33-point touch on Windows and 20-point touch on Android. The Android unit runs on an ARM Cortex-A73 processor with 4 GB RAM and 32 GB storage.
The 52 Series integrates with myViewBoard WhiteBoard software for Android and Windows, and includes a browser-based remote management system for IT managers. The 8-mic array lets teachers in distance or hybrid lessons choose the camera and microphone source from any connected visualiser. Two 15 W front speakers and a 15 W subwoofer support student discussion. The panel measures 1488 x 948 x 120 mm, weighs 42.35 kg and uses a 600 x 400 mm VESA pattern.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Ultra Fine Touch (UFT)
- Dual-pen writing
- 33-point Windows touch
- 8-mic array
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Dual-pen writing
dual-pen capability with palm awareness for smooth writing.
02
33-point Windows touch
33-point touch on Windows and 20-point touch on Android with Ultra Fine Touch.
03
8-mic array
selects the camera and microphone source from a connected visualiser.
04
Front speakers
2 x 15 W front speakers with a 15 W subwoofer.
05
Single-cable USB-C
one port carries USB 2.0, DP 1.2, Ethernet 100M and 65 W Power Delivery.
06
Remote management
browser-based remote management system for IT managers.
07
Input ports
RGB/VGA at 1920 x 1080 and 60 Hz, RS232, OPS and WiFi module slots.
Specifications
40 specificationsGeneral
Key FeaturesDual-pen capability, palm awareness, 33-point Windows touch, 8-mic array, 2 x 15 W speakers with subwoofer, single-cable USB-C, browser-based remote management
Model6552-1C
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio1,200:1 (typ.), 3,000:1 (max., DCR)
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points33-point touch (Windows), 20-point touch (Android)
Touch Resolution32767 x 32767
Touch TechnologyUltra Fine Touch (UFT)
Viewing Angle178° horizontal, 178° vertical
Performance
ProcessorARM Cortex-A73 ×4
RAM4 GB
Storage32 GB
Audio
Audio InPC audio in × 1
Audio OutEarphone out × 1
Microphone8-mic array
Speaker Output2 × 15 W front speakers, 15 W subwoofer
Connectivity
EthernetRJ45 × 2, 10/100/1000M
Input Voltage100–240 V AC ±10%
OPS SlotOPS module slot × 1
Serial PortRS232 × 1
Touch USB PortsUSB Type B × 3
USB PortsUSB 2.0 × 3, USB 3.0 × 2
USB-C PortsUSB-C × 1 (USB 2.0, DP 1.2, Ethernet 100M, PD 65 W)
VGA InputRGB/VGA × 1 (1920 x 1080 at 60 Hz)
Wi-FiWiFi module slot × 1
Power
Power Consumption119.2 W (typical)
Standby PowerLess than 0.5 W
Physical
Dimensions1488 x 948 x 120 mm
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection9H hardness, anti-glare coating
VESA Mount600 x 400 mm
Weight42.35 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard 65-inch 4K Interactive Flat Panel – 6552-1C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the ViewBoard 6552-1C a 4K interactive whiteboard?
Yes. The ViewBoard 6552-1C is a 65-inch 4K UHD panel with 3840 x 2160 resolution, 400 nits typical brightness and 10-bit colour. The manufacturer describes it as an interactive whiteboard with dual-pen writing.
Does the ViewBoard 6552-1C support dual-pen writing and palm awareness?
Yes. The manufacturer lists dual-pen capability and palm awareness technology, with 33-point touch on Windows and 20-point touch on Android. Ultra Fine Touch technology is used for the writing surface.
Can teachers use the ViewBoard 6552-1C for hybrid lessons?
Yes. The 8-mic array lets teachers facilitating distance or hybrid lessons choose the camera and microphone source from any connected visualiser. The panel also has RGB/VGA input and an OPS module slot.
What mounting does the ViewBoard 6552-1C need?
The panel uses a 600 x 400 mm VESA wall-mount pattern and measures 1488 x 948 x 120 mm. It weighs 42.35 kg, so the wall bracket or stand must be rated for that weight. Procure.ae can recommend a suitable mount.
Does the ViewBoard 6552-1C support remote management?
Yes. The 52 Series includes a browser-based remote management system for IT managers. The manufacturer's specifications do not state which management features or licences are included, so Procure.ae can confirm what is supplied with the panel.
