ViewSonicInteractive Flat PanelsSKU IFP5541-1

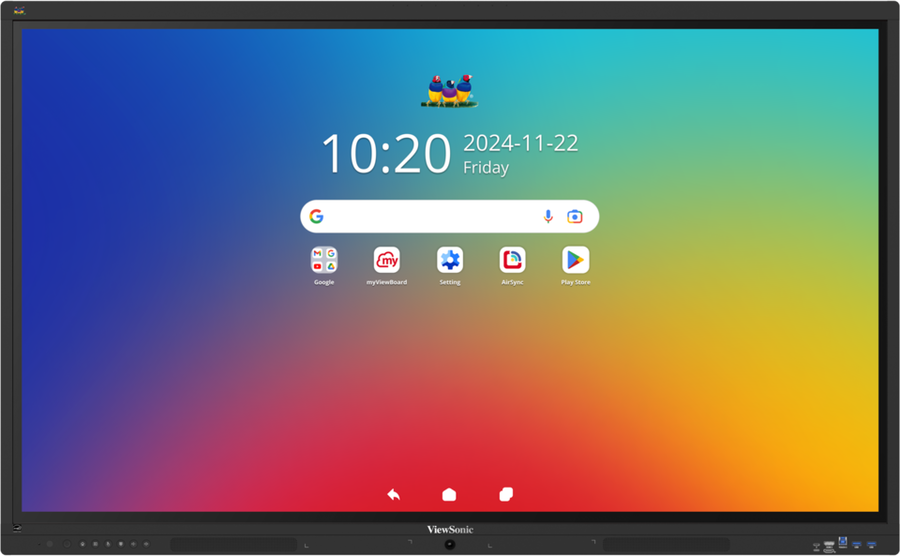

ViewSonic ViewBoard 55-inch 4K Interactive Flat Panel – IFP5541-1
The ViewSonic ViewBoard IFP5541-1 is a 55-inch 4K UHD interactive flat panel for classrooms, with 64-point touch and EDLA-certified Android 16. It includes PIR motion and light sensors, an 8-microphone array, 8 GB RAM and 128 GB storage. Procure.ae supplies the ViewBoard IFP5541-1 across the UAE.
The IFP5541-1 has a 3840 x 2160 LCD panel with a DLED backlight, 350 nits typical brightness, 5,000:1 contrast with DCR and a 6.5 ms response time, showing 1.07 billion colours. Infrared Ultra Fine Touch supports up to 64 touch points, with palm rejection and a 9H anti-glare surface. Built-in ambient light and PIR motion sensors adjust screen brightness automatically to support sustainability. The octa-core CPU runs with 8 GB RAM and 128 GB storage.
Procure.ae supplies the IFP5541-1 as an authorised ViewSonic reseller, with delivery and installation across the UAE and wider MEA. Two USB-C ports give single-cable connectivity: the front port delivers 100 W of power with DP 1.2 and Ethernet, and the rear port delivers 15 W. The OPS PC slot supports Windows, myViewBoard runs on Android and Windows, and AirSync handles wireless presentation. The panel weighs 24.7 kg net and mounts on a 400 x 200 mm VESA pattern. Model code IFP5541-1-1C refers to this same panel.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Touch Technology
Infrared (Ultra Fine Touch)
- 64-point touch
- Motion and light sensing
- EDLA-certified Android 16
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
64-point touch
Infrared Ultra Fine Touch with palm rejection and up to 64 touch points.
02
Motion and light sensing
PIR motion sensor and ambient light sensor for automatic brightness control.
03
EDLA-certified Android 16
EDLA-certified display on Android 16, with regular security updates.
04
Dual USB-C
Front USB-C with 100 W power delivery and rear USB-C with 15 W, both with DP 1.2.
05
8-microphone array
Built-in 8-microphone array in the panel.
06
myViewBoard software
myViewBoard for Android, with myViewBoard for Windows in the embedded OPS PC.
07
AirSync wireless presentation
AirSync for wireless presentation, with device management.
08
Expansion
OPS PC slot, micro SD slot, RJ45 × 2 and RS232 × 1.
Specifications
35 specificationsGeneral
Key Features64-point touch, palm rejection, PIR motion sensor, light sensor, 8-microphone array, EDLA-certified Android 16, dual USB-C with 100 W power delivery, AirSync
ModelIFP5541-1
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness350 nits (typical)
Color Depth1.07 billion colours
Contrast Ratio5,000:1 (maximum with DCR)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size55 inch
Touch Points64 points
Touch Resolution32767 x 32767
Touch TechnologyInfrared (Ultra Fine Touch)
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 16
ProcessorOcta-core CPU
RAM8 GB
Storage128 GB
Audio
Microphone8-microphone array
Connectivity
Input Voltage100–240 V AC ±10%
OPS SlotOPS PC slot × 1

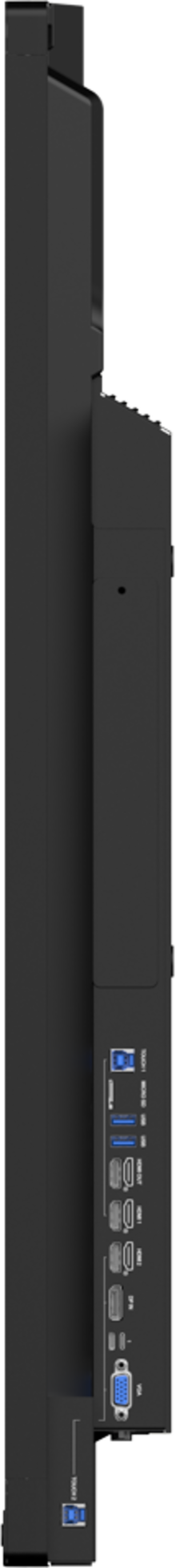

PortsUSB 3.2 Gen 1 × 4, USB 2.0 × 1, USB Type-B touch × 3, USB-C × 2 (DP 1.2, Ethernet 100M, PD 100 W front, PD 15 W rear), DisplayPort × 1, RGB/VGA × 1, RJ45 × 2, RS232 × 1, micro SD slot × 1
Power
Power Consumption74.25 W (on); under 0.5 W (off)
Physical
Dimensions1270.5 x 783.2 x 86.8 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1395 x 875 x 215 mm
Shipping Weight32.9 kg
Surface Protection9H hardness, anti-glare coating
VESA Mount400 x 200 mm
Weight24.7 kg
Compliance
CertificationsEDLA-certified
Downloads
Manufacturer documents for the ViewSonic ViewBoard 55-inch 4K Interactive Flat Panel – IFP5541-1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the IFP5541-1 run Android or Windows?
Yes, both. The panel runs Android 16 with myViewBoard for Android, and a Windows PC can be fitted through the OPS PC slot, where myViewBoard for Windows is embedded. Both platforms are covered by the same myViewBoard suite.
Is the IFP5541-1 suited to a classroom?
Yes. The 55-inch 4K panel with 64-point touch and palm rejection suits classroom teaching, and its sensors adjust brightness automatically. The manufacturer's specifications do not state a recommended viewing distance, so confirm the room layout with Procure.ae before ordering.
Can the IFP5541-1 be wall mounted?
Yes. It uses a 400 x 200 mm VESA pattern and weighs 24.7 kg net and 32.9 kg in packaging. The mount must be rated for that weight, and Procure.ae can arrange delivery and installation across the UAE.
Can a laptop charge and display through one USB-C cable?
Yes. The front USB-C port delivers up to 100 W of power delivery with DisplayPort 1.2, data and Ethernet at 100M, so a compatible laptop can charge and show its screen through one cable. The rear USB-C port provides 15 W.
Does the IFP5541-1 support wireless presentation?
Yes. The panel lists AirSync for wireless presentation, and it works with the ViewSonic device management tools. Simple LAN sharing between the panel and the slot-in device uses 10/100/1000M Ethernet for Android and PC.
Can I buy the IFP5541-1 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
