ViewSonicInteractive Flat PanelsSKU 5550-5F

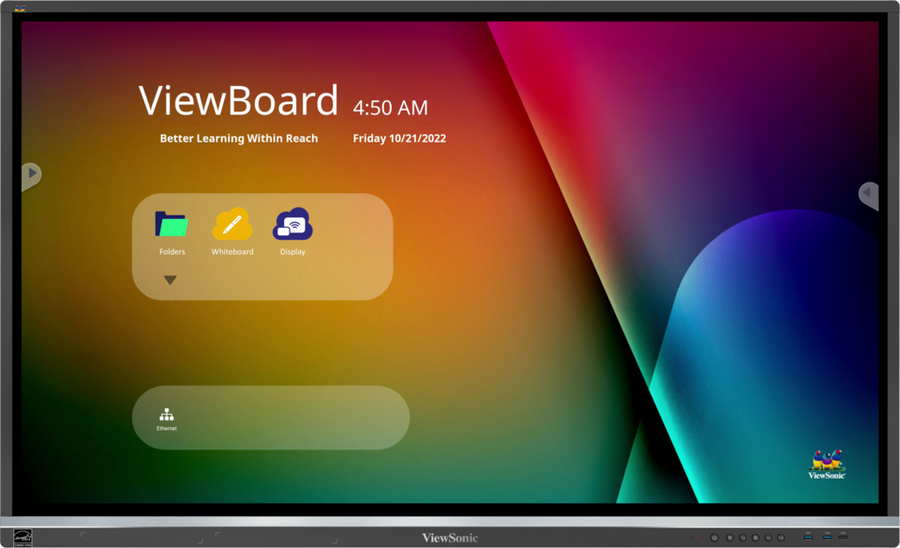

ViewSonic ViewBoard 55-inch 4K Interactive Flat Panel – 5550-5F
The ViewSonic ViewBoard 5550-5F is a 55-inch 4K UHD interactive flat panel for classrooms and training rooms. It has a 3840 x 2160 IPS panel, 40-point touch on Windows and 20-point touch on Android, and single-cable USB-C connectivity and 8 GB RAM. Procure.ae supplies the ViewBoard 5550-5F across the UAE.
The 5550-5F uses a 55-inch IPS panel with 3840 x 2160 resolution, 350 nits typical brightness and a 1,200:1 typical contrast ratio, rising to 5,000:1 with dynamic contrast. Its 8 ms response time and 178-degree viewing angles suit a classroom or meeting room. Ultra Fine Touch infrared recognition supports 40-point touch on Windows and 20-point touch on Android, with a 32767 x 32767 touch resolution. The Android unit has an ARM Cortex-A73 and Cortex-A53 processor setup, 8 GB RAM and 64 GB storage.
The panel integrates with myViewBoard annotation software: basic annotation on Android and pro annotation on Windows through an embedded slot-in PC. Wireless presentation options are vCast and the myViewBoard Display App. The USB-C port provides DisplayPort 1.2, USB 2.0, Ethernet 100M and 65 W Power Delivery, with two RJ45 ports, two USB Type B touch inputs, an OPS slot and an RS232 port for a managed AV setup. The panel is 1270.8 x 773.9 x 84.8 mm, weighs 26.4 kg, and uses a 400 x 200 mm VESA pattern.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Touch Technology
Infrared
- Ultra Fine Touch
- 4K UHD IPS panel
- Brightness and contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Fine Touch
40-point touch on Windows and 20-point touch on Android with infrared recognition.
02
4K UHD IPS panel
3840 x 2160 resolution with 1.07 billion colours (8-bit + FRC).
03
Brightness and contrast
350 nits typical brightness, 1,200:1 typical and 5,000:1 DCR contrast ratio.
04
Single-cable USB-C
one port carries DP 1.2, USB 2.0, Ethernet 100M and 65 W Power Delivery.
05
myViewBoard software
basic annotation on Android and pro annotation on Windows via a slot-in PC.
06
Wireless presentation
vCast and myViewBoard Display App options.
07
Flicker-free with blue light filter
integrated TÜV certified blue light filter for all brightness levels.
08
Built-in light sensor
a light sensor is fitted to the panel.
Specifications
37 specificationsGeneral
Key FeaturesUltra Fine Touch infrared recognition, single-cable USB-C, myViewBoard annotation software, vCast and myViewBoard Display App wireless presentation, light sensor
Model5550-5F
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Blue Light FilterIntegrated, TÜV certified
Brightness350 nits
Color Depth8-bit + FRC (1.07 billion colours)
Contrast Ratio1,200:1 (typ.), 5,000:1 (DCR)
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Touch Points40-point touch (Windows), 20-point touch (Android)
Touch Resolution32767 x 32767
Touch TechnologyInfrared
Viewing Angle178° horizontal, 178° vertical
Performance
ProcessorARM Cortex-A73 ×4 + Cortex-A53 ×4
RAM8 GB
Storage64 GB
Audio
Audio OutLine out × 1
Connectivity
EthernetRJ45 × 2
Input Voltage100–240 V AC ±10%
OPS SlotOPS slot × 1
Serial PortRS232 × 1
Touch USB PortsUSB Type B × 2
USB PortsUSB 3.0 × 4, USB 2.0 × 2
USB-C PortsUSB-C × 1 (DP 1.2, USB 2.0, PD 65 W, Ethernet 100M)
Wi-FiWiFi module slot × 1
Power
Power Consumption89 W (typical)
Standby Power0.5 W
Physical
Dimensions1270.8 x 773.9 x 84.8 mm
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection7H hardness, anti-glare coating
VESA Mount400 x 200 mm
Weight26.4 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard 55-inch 4K Interactive Flat Panel – 5550-5F — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the ViewBoard 5550-5F a 4K display?
Yes. The ViewBoard 5550-5F has a 55-inch IPS panel with 3840 x 2160 (4K UHD) resolution, a 16:9 aspect ratio and 1.07 billion colours (8-bit + FRC). Typical brightness is 350 nits and typical contrast is 1,200:1.
Does the ViewBoard 5550-5F support multi-touch?
Yes. It supports 40-point touch on Windows and 20-point touch on Android, using Ultra Fine Touch infrared recognition with a 32767 x 32767 touch resolution. Two USB Type B ports are provided for touch.
What mounting does the ViewBoard 5550-5F need?
The panel uses a 400 x 200 mm VESA wall-mount pattern and measures 1270.8 x 773.9 x 84.8 mm. It weighs 26.4 kg, so the wall bracket or stand must be rated for that weight. Procure.ae can recommend a suitable mount.
Can the ViewBoard 5550-5F connect to a laptop with one cable?
Yes. The USB-C port provides DisplayPort 1.2, USB 2.0, 100M Ethernet and 65 W Power Delivery over a single cable, according to the manufacturer. Procure.ae can confirm the cable setup for your devices.
Does the ViewBoard 5550-5F include annotation software?
Yes. It includes myViewBoard basic annotation software on Android, and myViewBoard pro annotation software for Windows, which runs in an embedded slot-in PC. The manufacturer lists vCast and the myViewBoard Display App for wireless presentation.
Can I buy the ViewBoard 5550-5F in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
