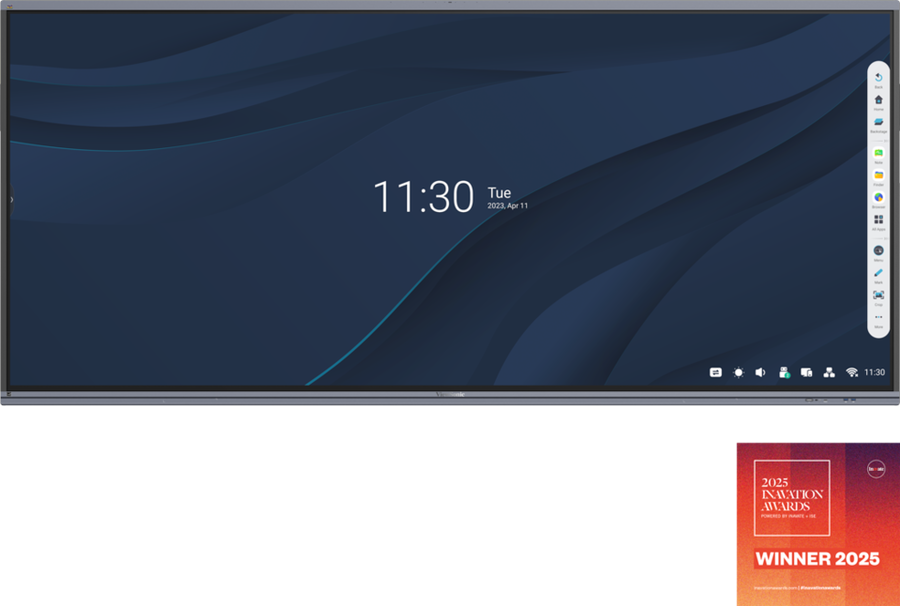

ViewSonic ViewBoard 105-inch 5K Interactive Flat Panel – IFP105S
The ViewSonic ViewBoard IFP105S is a 105-inch interactive flat panel with a 21:9 WUHD display of 5120 x 2160 pixels, built for meeting rooms and hybrid collaboration. It offers 400 nits typical brightness, 40-point touch on Windows, 8 GB RAM and 64 GB storage. Procure.ae supplies the ViewBoard IFP105S across the UAE.
The IFP105S uses a 5120 x 2160 WUHD VA panel with a DLED backlight, 400 nits typical brightness and 4,000:1 typical contrast, rising to 5,000:1 with DCR. Its 6.5 ms response time and 178-degree horizontal and vertical viewing angles suit viewing from wide angles across a room. Infrared touch uses a 32767 x 32767 touch resolution and registers 40 points on Windows and 20 on Android. The octa-core CPU runs with 8 GB LPDDR RAM and 64 GB eMMC storage, and the surface combines a 3H panel hard coating with 7H anti-glare glass.
Procure.ae supplies the IFP105S as an authorised ViewSonic reseller, with delivery and installation across the UAE and wider MEA. Split-screen functionality lets users multitask across the 21:9 display. The rear USB-C port delivers 65 W with an OPS fitted or 100 W without one, and the front port delivers 15 W. Compared with the IFP105G, this model has 400 nits typical brightness against 350 nits, and 64 GB storage against 128 GB.
Screen Size
105 inch
Resolution
5120 x 2160 (WUHD)
Brightness
400 nits (typical)
Touch Technology
Infrared
- Infrared touch
- 5K WUHD display
- Split-screen multitasking
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Infrared touch
40 points on Windows and 20 points on Android at 32767 x 32767 touch resolution.
02
5K WUHD display
5120 x 2160 at 21:9, with 400 nits typical brightness and 1.07 billion colours.
03
Split-screen multitasking
Split-screen functionality on the 105-inch display for side-by-side work.
04
8-array microphone
Built-in 8-array microphone for meeting-room use.
05
Wireless presentation
vCast, myViewBoard Display and AirSync for wireless screen sharing.
06
Device management
ViewSonic Manager and One Click to Cloud Drive for management and file access.
07
Expansion and power
OPS slot, WiFi module slot, and rear USB-C with PD 65 W or 100 W.
08
Energy Star listed
Energy Star listed, 176 W on and under 0.5 W off.
Specifications
36 specificationsGeneral
Key FeaturesInfrared touch, split-screen multitasking, 8-array microphone, vCast, myViewBoard Display and AirSync, ViewSonic Manager, One Click to Cloud Drive, light sensor
ModelIFP105S
TypeInteractive Flat Panel
Display
Aspect Ratio21:9
BacklightDLED
Bezel Size19.5 / 19.5 / 29.8 / 41.2 mm
Brightness400 nits (typical)
Color Depth1.07 billion colours
Contrast Ratio4,000:1 (typical), 5,000:1 (with DCR)
OrientationLandscape
Panel TechnologyVA
Resolution5120 x 2160 (WUHD)
Response Time6.5 ms
Screen Size105 inch
Touch Points40 points (Windows), 20 points (Android)
Touch Resolution32767 x 32767
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
ProcessorOcta-core CPU (Cortex-A76 x4 + Cortex-A55 x4)
RAM8 GB LPDDR
Storage64 GB eMMC
Audio
Microphone8-array microphone (built in)
Connectivity
Input Voltage100–240 V AC ±10%
OPS SlotOPS slot × 1
PortsUSB 2.0 × 1, USB 3.0 × 6, USB Type-B touch × 3, USB-C × 2 (DP 1.2, PD 65–100 W), DisplayPort × 1, RJ45 × 2, RS232 × 1
Wi-FiWiFi module slot × 1
Power
Power Consumption176 W (on, Energy Star); under 0.5 W (off)
Physical
Dimensions2507.2 x 1130.1 x 103.2 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions2668 x 1305 x 280 mm
Shipping Weight115.7 kg
Surface Protection3H panel hard coating, 7H anti-glare glass
VESA Mount1000 x 400 mm
Weight91.4 kg
Compliance
CertificationsEnergy Star
Downloads
Manufacturer documents for the ViewSonic ViewBoard 105-inch 5K Interactive Flat Panel – IFP105S — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What room size suits a 105-inch interactive flat panel?
The 105-inch panel suits larger meeting rooms and collaboration spaces where several people work on the screen at once. The manufacturer's specifications do not state a recommended viewing distance or room size, so Procure.ae can confirm the layout on request.
Does the IFP105S support Windows and Android?
Yes. Touch registers 40 points on Windows and 20 points on Android. The OPS slot takes a slot-in PC for Windows, and myViewBoard Whiteboard runs on Android and in the slot-in PC.
Can the IFP105S be wall mounted?
Yes. The VESA pattern is 1000 x 400 mm. The panel weighs 91.4 kg net and 115.7 kg in packaging, so the mount, wall structure and lifting equipment must be rated for that load. Procure.ae can arrange delivery and installation across the UAE.
Does the IFP105S work with a laptop through one cable?
Yes. The rear USB-C port carries DP 1.2 video, data and 10M/100M network sharing with 65 W power delivery when an OPS is fitted, or 100 W without one. The front USB-C port provides 15 W power delivery for charging.
Does the IFP105S support wireless presentation?
Yes. The panel lists myViewBoard Display, vCast and AirSync for wireless screen sharing, and it has a WiFi module slot for a wireless module. Simple LAN sharing between the panel and the slot-in device is also supported.
Can I buy the IFP105S in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
