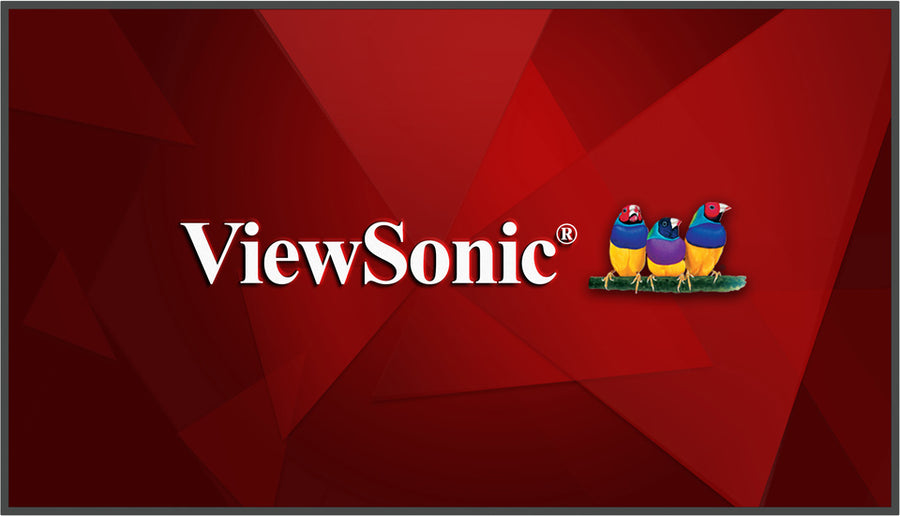

ViewSonic CN5501-1C digital signage displayViewSonic
Digital SignageSKU CN5501-1C

ViewSonic CN Series 55-inch 4K UHD Digital Signage Display – CN5501-1C

The ViewSonic CN5501-1C is a 55-inch 4K UHD digital signage display for corporate and educational settings. It offers 3840 x 2160 resolution, 520 nits typical brightness and 5,000:1 contrast, with landscape or portrait orientation and a built-in signage player. Procure.ae supplies it across the UAE as an authorised ViewSonic reseller.

The CN5501-1C uses a 55-inch TFT LCD panel with DLED backlight, a native 3840 x 2160 resolution and a 16:9 aspect ratio. It is rated at 520 nits typical brightness with a 5,000:1 contrast ratio and a 6.5 ms response time. The viewing angles are 178 degrees horizontal and vertical, and the 3H anti-glare surface has 25% haze. A quad-core processor with 4 GB RAM and 32 GB storage runs the built-in signage player for content management and continuous playback.

The CN5501-1C is positioned for corporate and educational settings, and its signage player supports diverse content management. It supports wireless casting over AirPlay, Miracast and Chromecast. RS-232 and IR pass-through ports allow control integration, and the USB-C port carries DisplayPort 1.2 with 15 W power delivery. Its 400 x 400 mm VESA pattern suits wall mounting. The CN Series runs from 43 to 75 inches, and this 55-inch model is a mid-size option in the range.

Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
520 nits (typical)
Type
Digital Signage Display
  • 55-inch 4K UHD panel
  • Landscape and portrait
  • Built-in signage player
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
55-inch 4K UHD panel
3840 x 2160 native resolution in a 16:9 aspect ratio.
02
Landscape and portrait
Supports both orientations for flexible display layouts.
03
Built-in signage player
Easy-to-use player for diverse content management and continuous playback.
04
Wireless casting
Supports AirPlay, Miracast and Chromecast casting.
05
520 nits brightness
520 nits typical brightness with a 5,000:1 contrast ratio.
06
Control interfaces
RS-232 and IR pass-through ports for integration with control systems.
07
USB-C with DisplayPort
DisplayPort 1.2 with 15 W power delivery and USB 2.0.
08
Anti-glare surface
3H hardness with a 25% haze anti-glare finish.

Specifications

27 specifications
General
Key Features4K UHD panel, landscape and portrait orientation, built-in signage player, AirPlay, Miracast and Chromecast casting, RS-232 and IR pass-through, quad-core processor, 3H anti-glare surface
ModelCN5501-1C
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightDLED
Brightness520 nits (typical)
Color Depth8-bit + FRC (1.07 billion colours)
Contrast Ratio5,000:1
OrientationLandscape and portrait
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical (typical)
Performance
ProcessorQuad-core
RAM4 GB
Storage32 GB
Connectivity
ConnectivityAirPlay, Miracast and Chromecast wireless casting
Input Voltage100–240 V AC ±10%

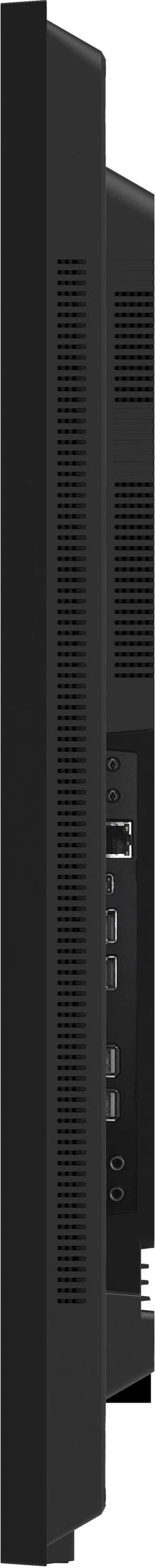

PortsRS-232 × 1, IR pass-through × 1, RJ45 × 1, USB 2.0 Type-A × 2, USB Type-C × 1 (DisplayPort 1.2, 15 W PD)
Power
Power Consumption134 W (on), under 0.5 W (off)
Physical
Dimensions1238.4 x 709.2 x 70 mm
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1390 x 830 x 144 mm
VESA Mount400 x 400 mm
Weight13 kg

Downloads

Manufacturer documents for the ViewSonic CN Series 55-inch 4K UHD Digital Signage Display – CN5501-1C — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the CN5501-1C support wireless casting?
Yes. The manufacturer lists AirPlay, Miracast and Chromecast casting, so laptops and phones that support one of these protocols can share content to the display. Check your device's protocol before the meeting, and confirm the setup with your AV integrator.
Can the CN5501-1C be used in portrait orientation?
Yes. The CN5501-1C supports both landscape and portrait orientation. Its native resolution is 3840 x 2160, and the manufacturer describes both modes as flexible display orientations. Check the mount and cable routing with your integrator before installing in portrait.
Can the CN5501-1C be controlled by a room control system?
Yes. It has RS-232 and IR pass-through ports for control integration, plus an RJ45 network port. Confirm the control protocol, cabling and network settings with your integrator before installation, so the display can be managed remotely from the room.
What wall mount does the CN5501-1C need?
The CN5501-1C uses a 400 x 400 mm VESA wall mount pattern. Its net weight is 13 kg, so choose a bracket rated for that load and check the wall structure before mounting. Procure.ae can advise on mounting and installation across the UAE.
Can I buy the CN5501-1C in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
