ViewSonicDigital SignageSKU CDE7531-1C

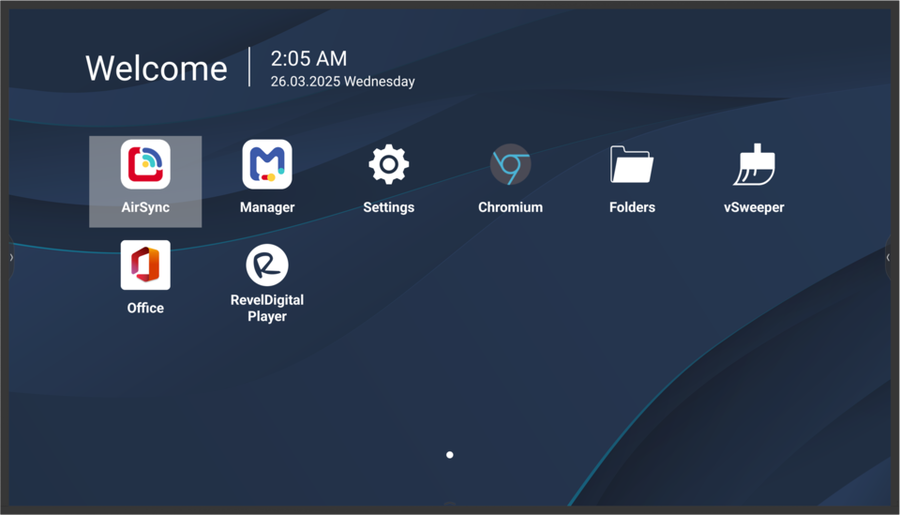

ViewSonic CDE Series 75-inch 4K Digital Signage Display – CDE7531-1C
The ViewSonic CDE7531-1C is a 75-inch 4K UHD commercial display with an OPS slot, 8 GB RAM and Android 14. It offers 500 nits brightness and landscape or portrait orientation for corporate, education, retail and healthcare settings. Procure.ae supplies the ViewSonic CDE7531-1C in the UAE.
The CDE7531-1C has a 3840 x 2160 native panel with a 6.5 ms response time, 1,200:1 typical contrast and 5,000:1 with DCR enabled. Its anti-glare screen has 3H hardness and 25% haze. A quad-core ARM Cortex-A73 processor with 8 GB RAM and 32 GB storage runs Android 14, and the manufacturer states that the platform is upgradeable to Android 16 for ongoing security updates. Dual 16 W built-in speakers and 3.5 mm audio in and out are included.
The OPS slot, WiFi slot, two RJ45 ports and AirSync wireless presentation allow integration with networked AV and IT systems. USB-C provides 65 W power delivery, or 15 W when OPS is in use, along with DisplayPort 1.2. ViewSonic Manager supports centralised remote control, and the 600 x 400 mm VESA pattern supports wall mounting. The set measures 1685.6 x 963.7 x 68 mm, with a net weight of 34.15 kg.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD panel
- 500-nit brightness
- OPS slot
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 native resolution on a 75-inch 16:9 LCD panel with DLED backlight.
02
500-nit brightness
500 nits brightness with 1,200:1 typical contrast and 5,000:1 with DCR enabled.
03
OPS slot
One OPS slot for an optional OPS computing module.
04
Android 14 platform
Quad-core ARM Cortex-A73 processor with 8 GB RAM and 32 GB storage.
05
Built-in speakers
Dual 16 W built-in speakers with 3.5 mm audio in and out.
06
Remote management
ViewSonic Manager remote control, static IP configuration and a web-based UI.
07
Anti-glare surface
Anti-glare coating with 3H hardness and 25% haze.
08
AirSync presentation
Wireless presentation through AirSync, with a WiFi slot and RJ45 LAN ports.
Specifications
34 specificationsGeneral
Key FeaturesOPS slot, AirSync wireless presentation, ViewSonic Manager remote control, Anti-glare 3H surface, Dual 16 W speakers, Static IP and web-based UI
ModelCDE7531-1C
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightDLED
Bezel Size15.9 mm (all sides)
Brightness500 nits
Contrast Ratio1,200:1 (typical); 5,000:1 (DCR)

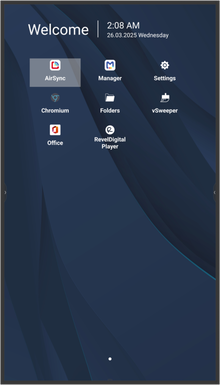

OrientationLandscape and portrait
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Viewing Angle178° horizontal, 178° vertical
Performance
Operating SystemAndroid 14
ProcessorQuad-core ARM Cortex-A73
RAM8 GB
Storage32 GB
Audio
Audio In3.5 mm
Audio Out3.5 mm
Speaker Output2 × 16 W built-in
Connectivity
EthernetRJ45 × 2 (LAN in and LAN out)
Input Voltage100–240 V AC ±10%
OPS SlotOPS slot × 1
PortsRS-232 × 1, SPDIF × 1, RJ45 × 2, USB 2.0 × 1, USB 3.2 Gen 1 × 1, USB-C × 1
Serial PortRS-232 × 1
USB-C PortsUSB-C × 1 (PD 65 W, or 15 W with OPS; DP 1.2, USB 2.0)
Wi-FiWiFi slot × 1
Power
Power Consumption89.19 W
Physical
Dimensions1685.6 x 963.7 x 68 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight34.15 kg
Downloads
Manufacturer documents for the ViewSonic CDE Series 75-inch 4K Digital Signage Display – CDE7531-1C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the ViewSonic CDE7531-1C built for 24/7 digital signage?
Yes. The manufacturer describes the CDE7531-1C as a commercial-grade display for reliable 24/7 operation across corporate, retail, education and healthcare environments. It offers 500 nits brightness, landscape and portrait orientation, and Android 14 for content playback.
What wall mount does the CDE7531-1C use?
It uses a 600 x 400 mm VESA wall mount pattern, so the mount must match that pattern. The display weighs 34.15 kg net and measures 1685.6 x 963.7 x 68 mm, so check the mount's load rating and the wall structure. Procure.ae arranges delivery and installation across the UAE.
What connections does the CDE7531-1C offer?
It has an RS-232 port, an SPDIF port, two RJ45 ports for LAN in and LAN out, two USB Type-A ports, one USB-C port with 65 W power delivery (15 W with OPS) and DisplayPort 1.2, and an OPS slot. The manufacturer's specifications do not list an HDMI input, so confirm your source connection before ordering.
Can the CDE7531-1C be managed remotely?
Yes. The manufacturer lists centralised remote control through ViewSonic Manager, static IP configuration and a simplified web-based UI. AirSync supports wireless presentation, and a WiFi slot is provided for network connection.
